NEO Signal Circuit

DTC 44 NEO Signal Circuit

CIRCUIT DESCRIPTION

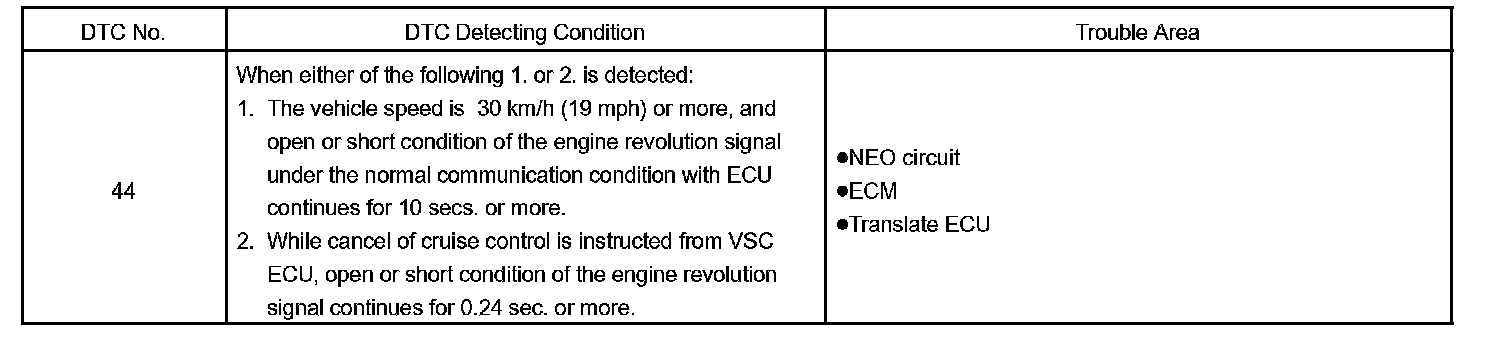

DTC Detecting Condition:

The ABS & BA & TRAC & VSC ECU receives engine revolution speed signals (NEO signal) from the ECM.

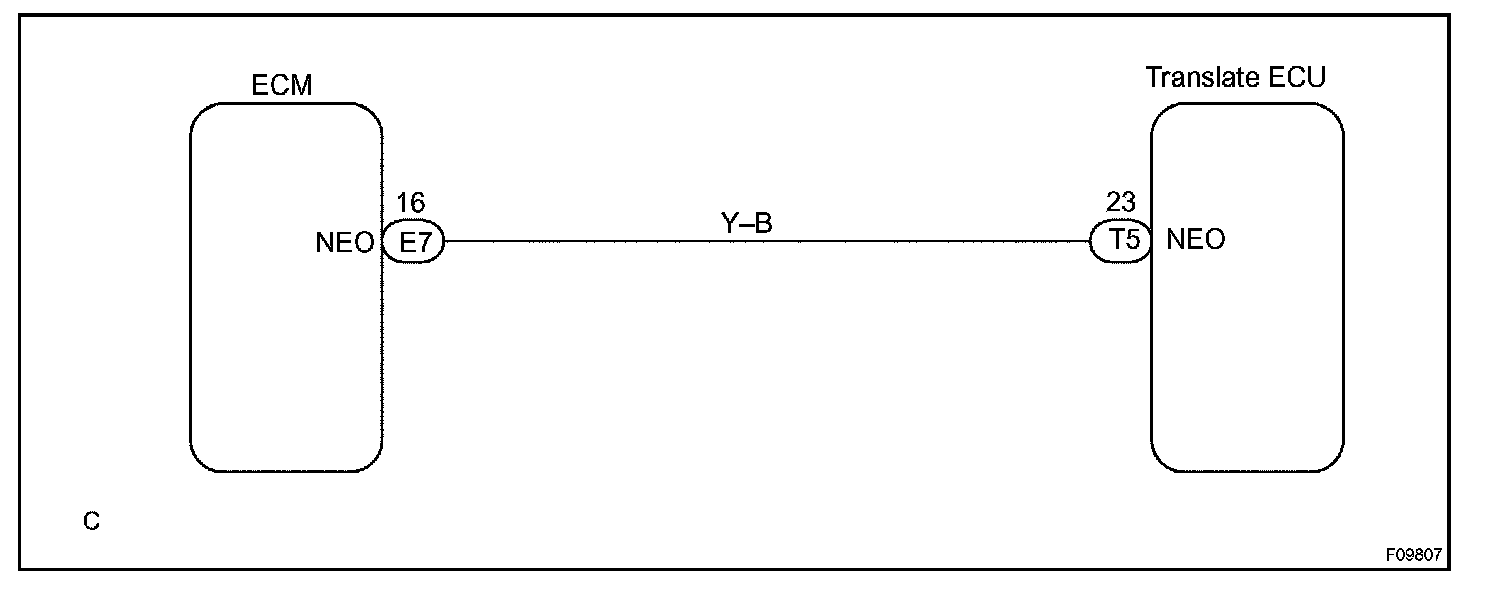

Wiring Diagram:

Step 1 - 2:

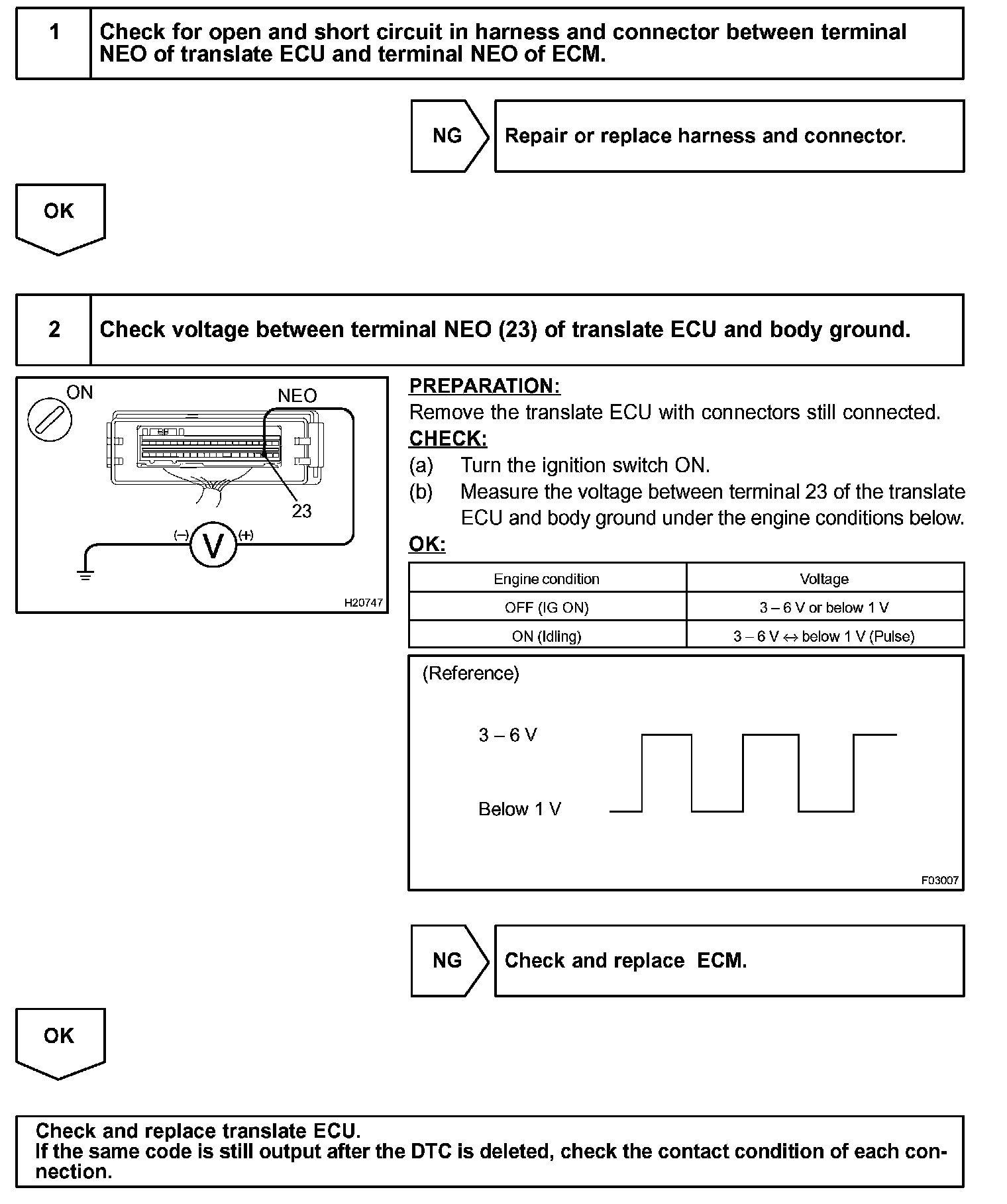

INSPECTION PROCEDURE
