Air Mix Damper Control Servomotor Circuit (Driver Side)

DTC 46 Air Mix Damper Control Servomotor Circuit (Driver Side)

CIRCUIT DESCRIPTION

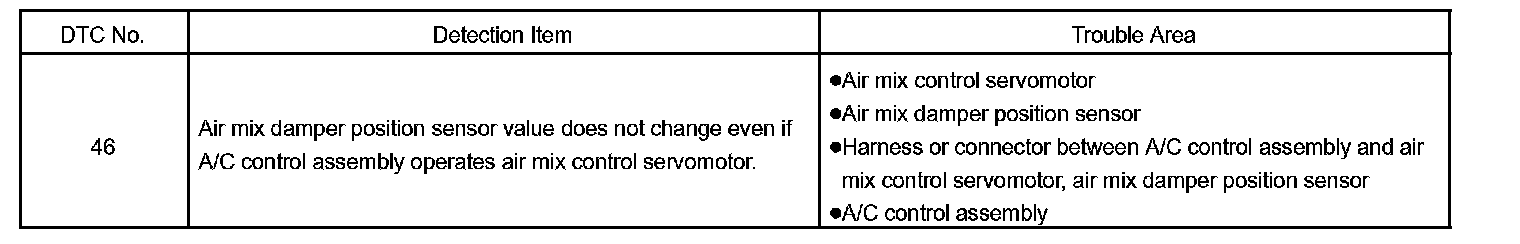

Detection Item:

This air mix control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

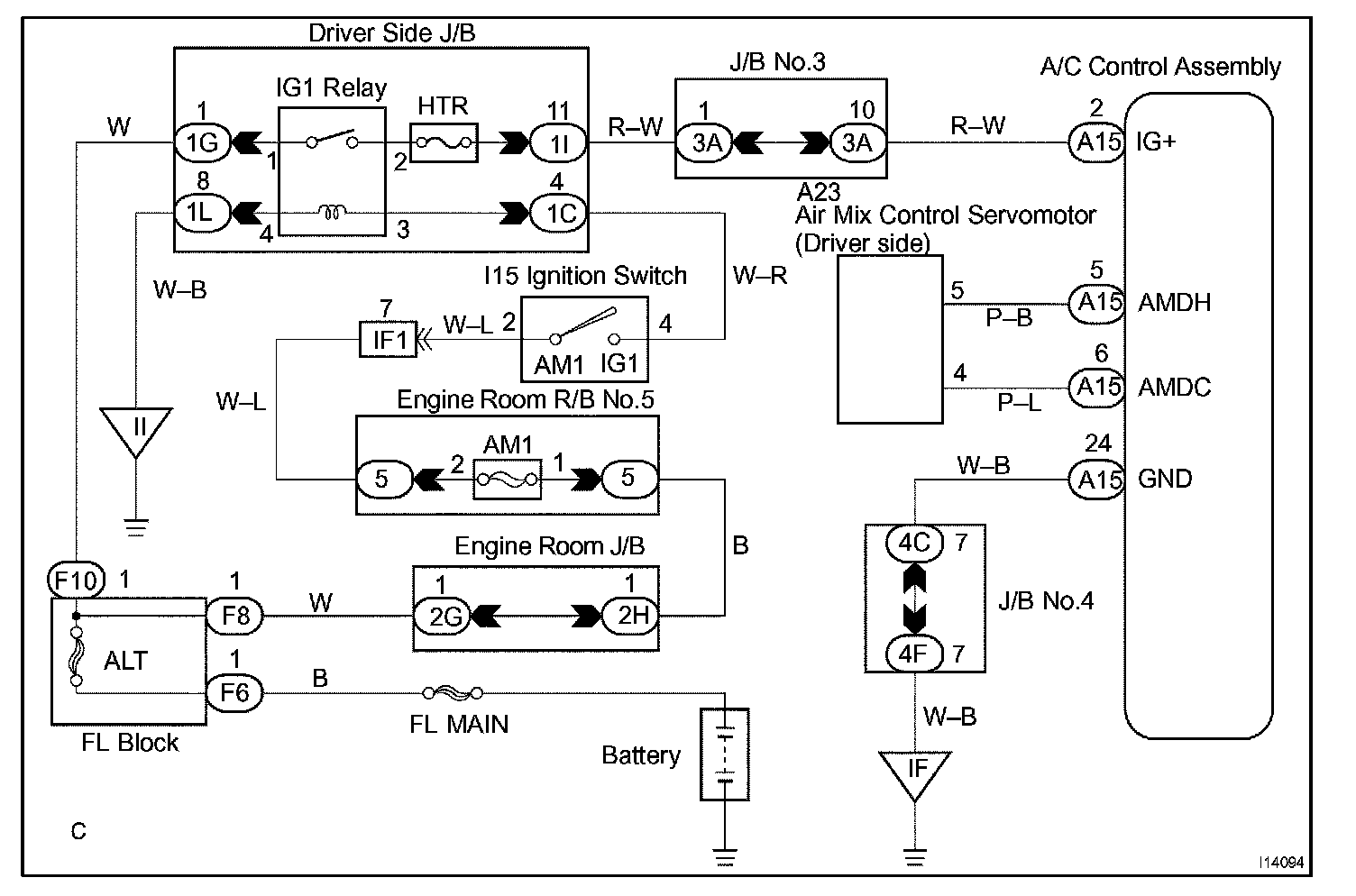

Wiring Diagram:

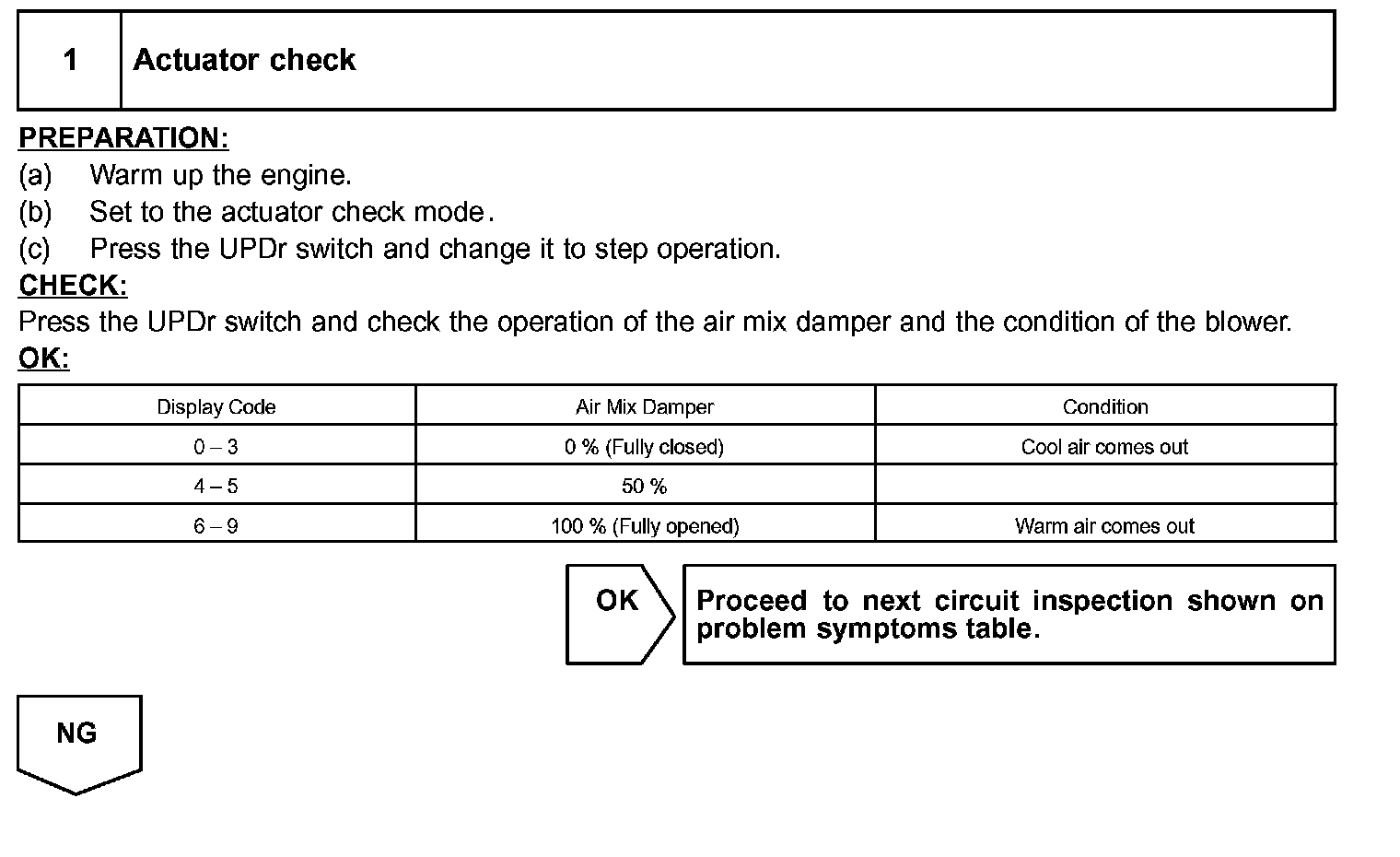

Step 1:

Step 2 - 3:

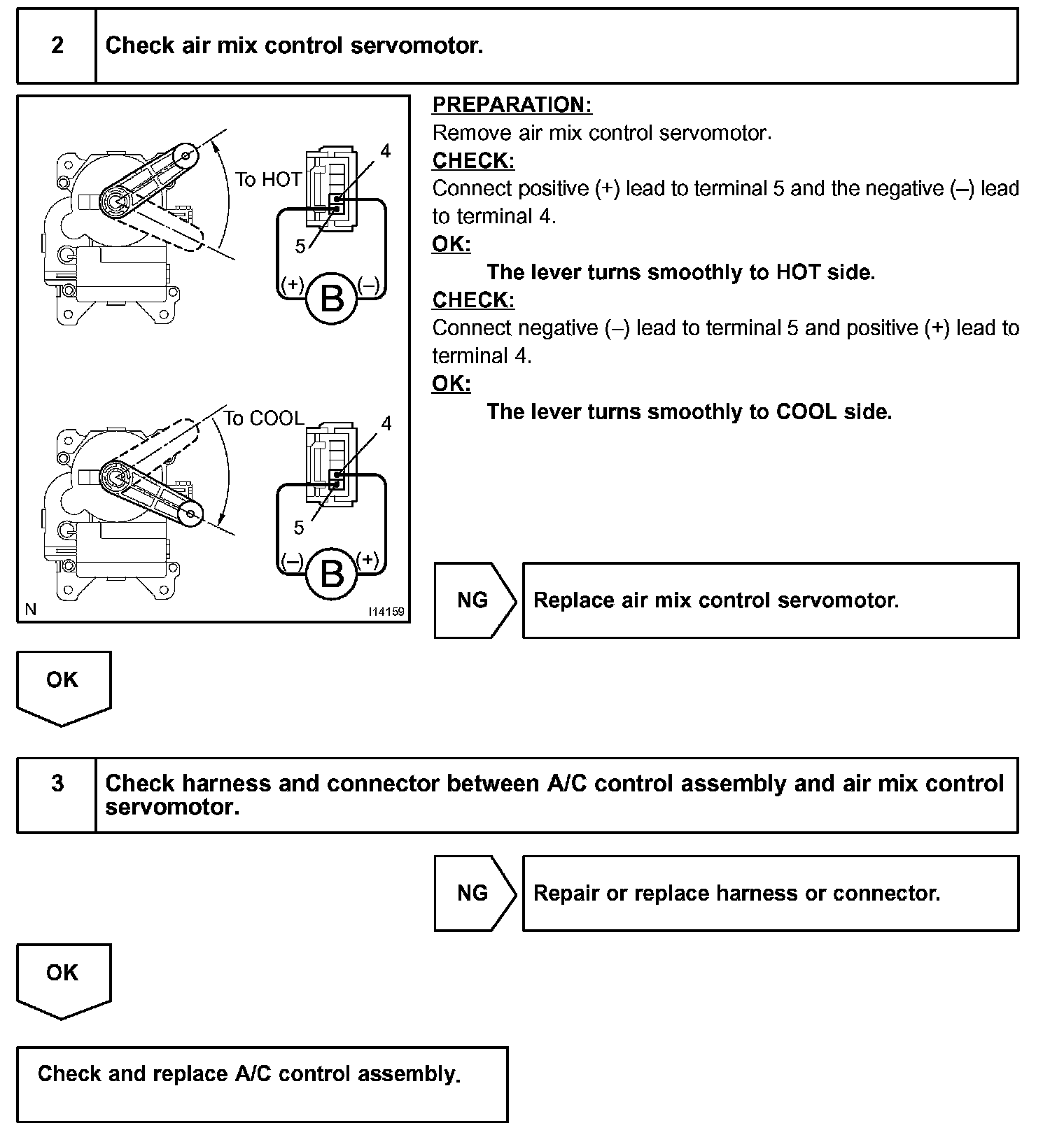

INSPECTION PROCEDURE
