Air Mix Damper Position Sensor Circuit (Driver side)

DTC 46 Air Mix Damper Position Sensor Circuit (Driver side)

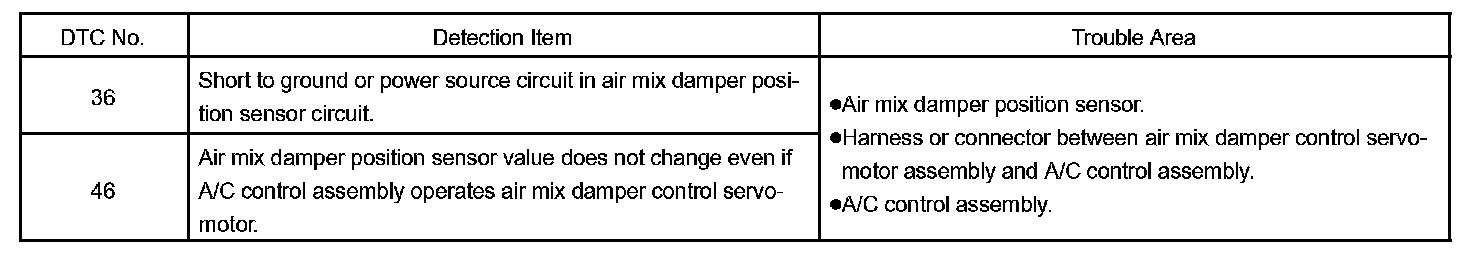

Detection Item:

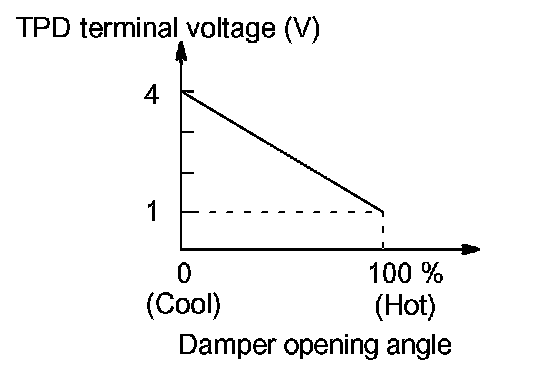

This sensor detects the position of the air mix damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the air mix damper control servomotor assembly.

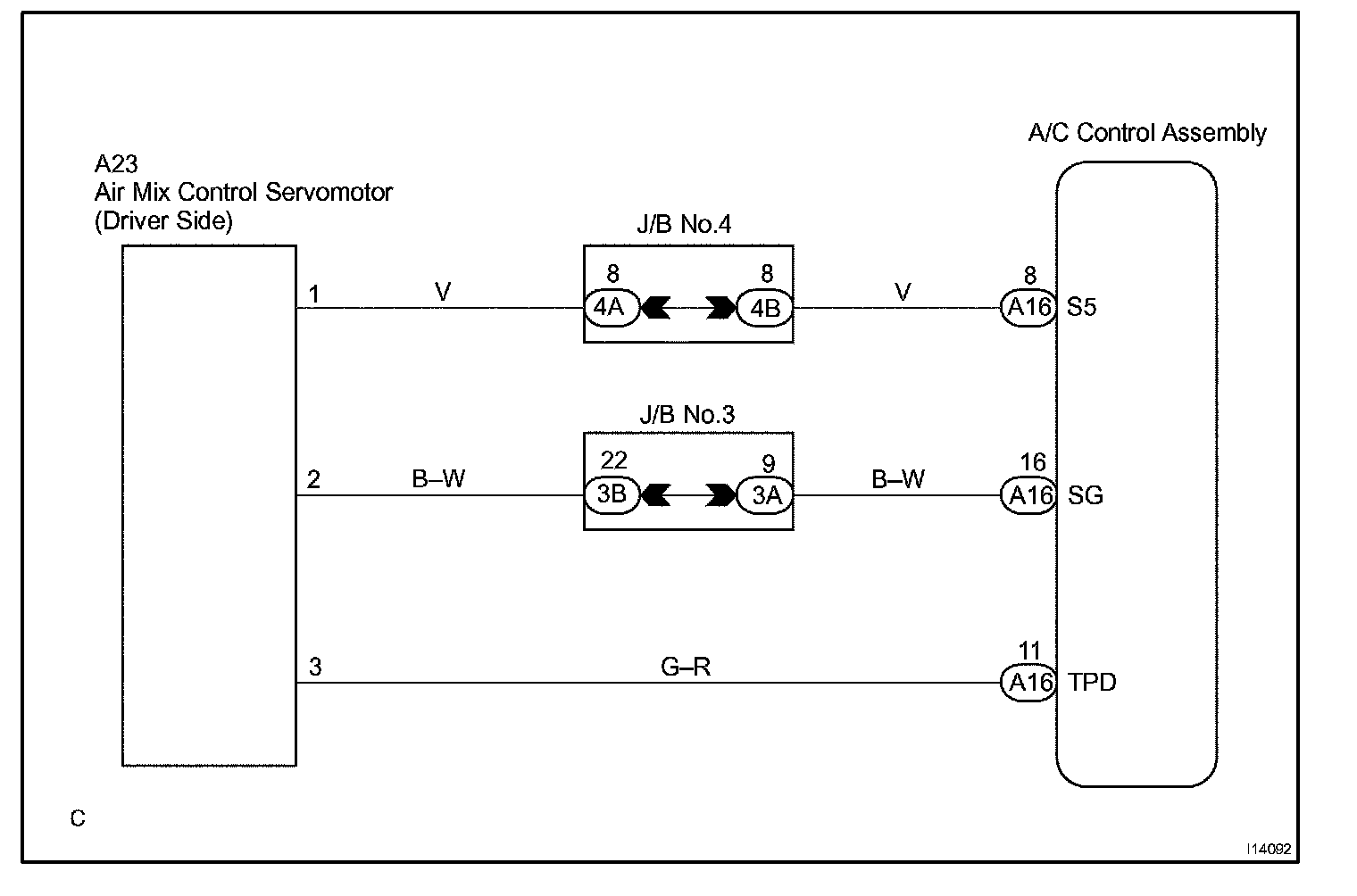

Wiring Diagram:

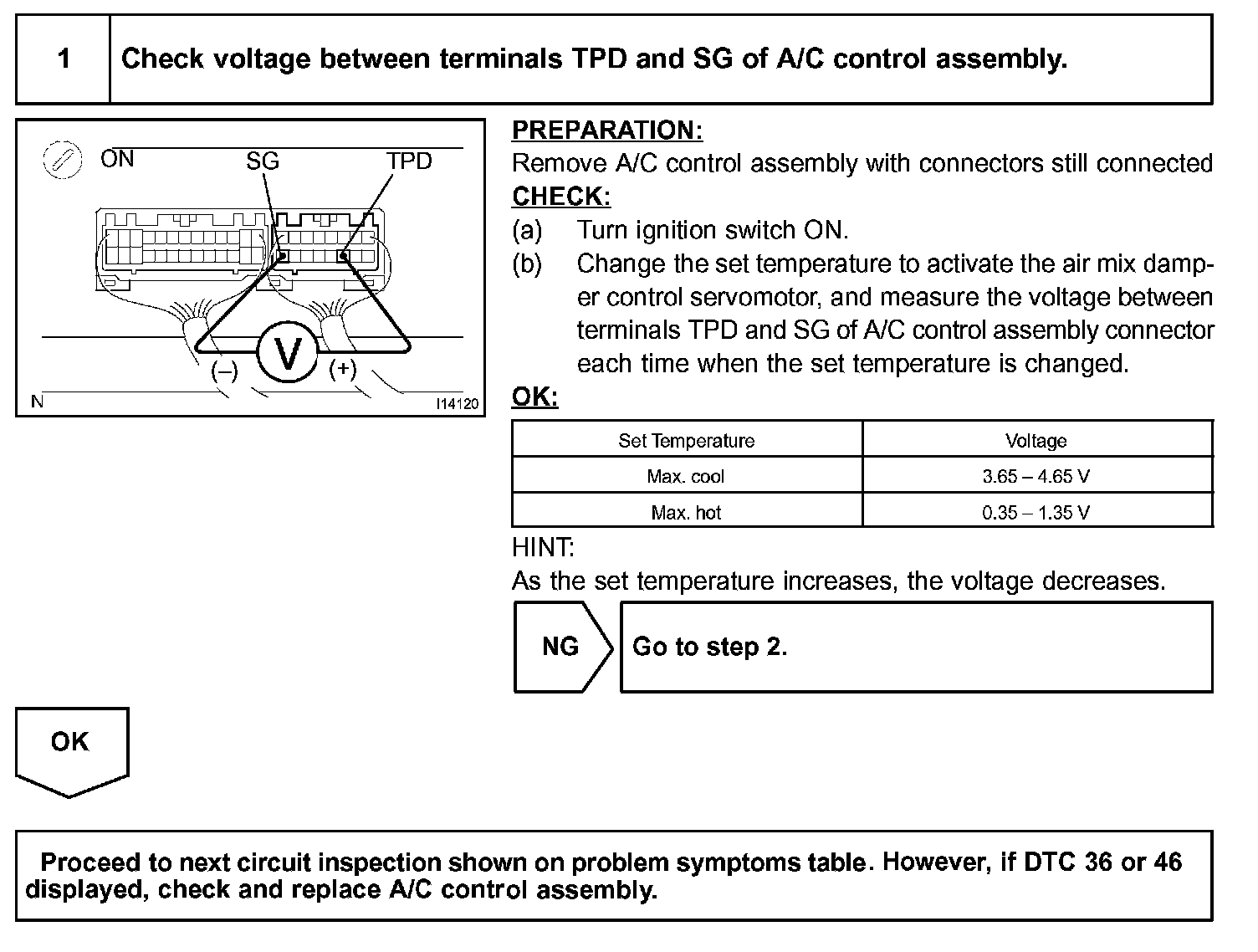

Step 1:

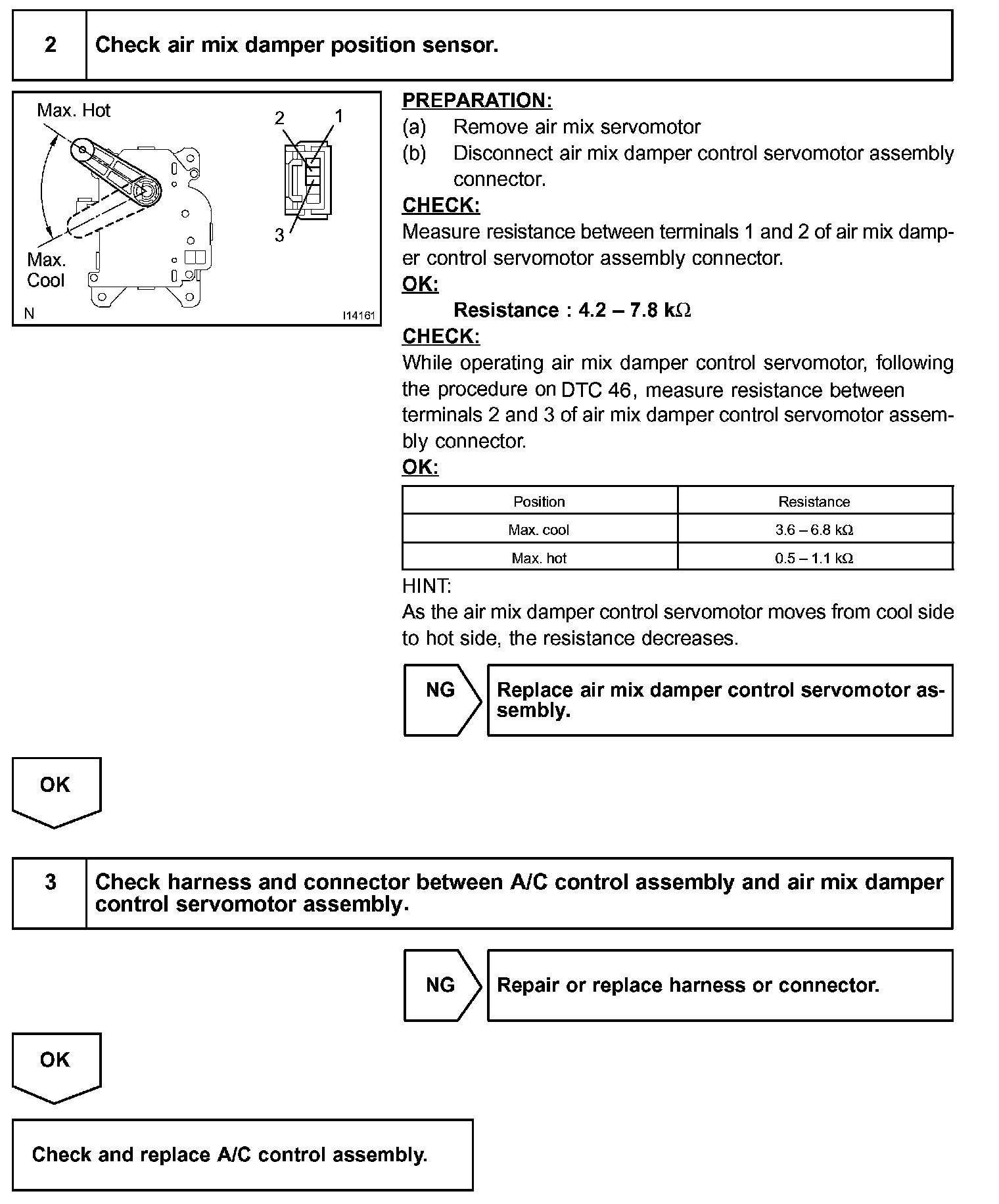

Step 2 - 3:

INSPECTION PROCEDURE
