Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Avalon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 58
>>
ABS W/EBD System
ABS W/EBD System
DTC 58 Stop Light Switch Circuit

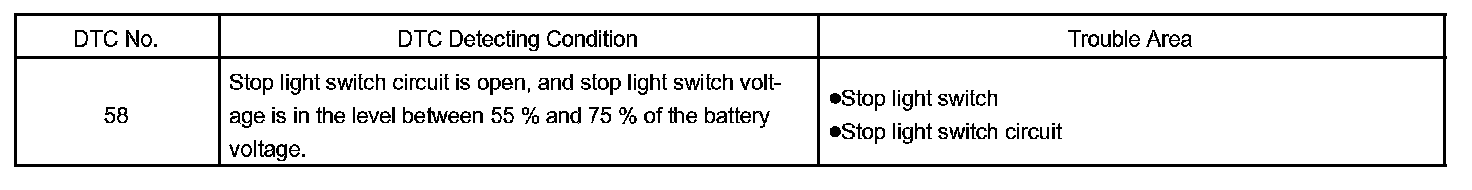

DTC Detecting Condition:
CIRCUIT DESCRIPTION

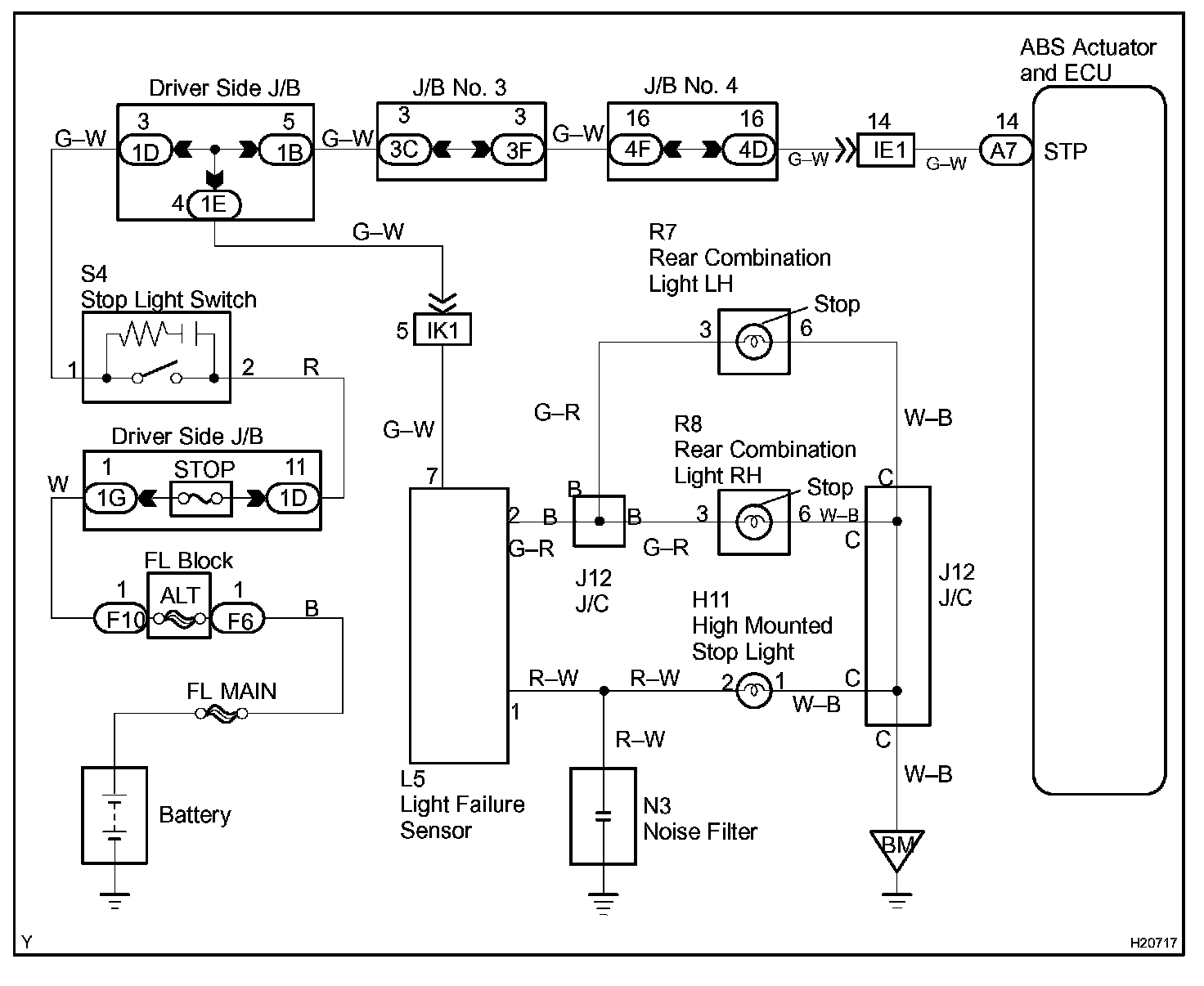

Wiring Diagram:

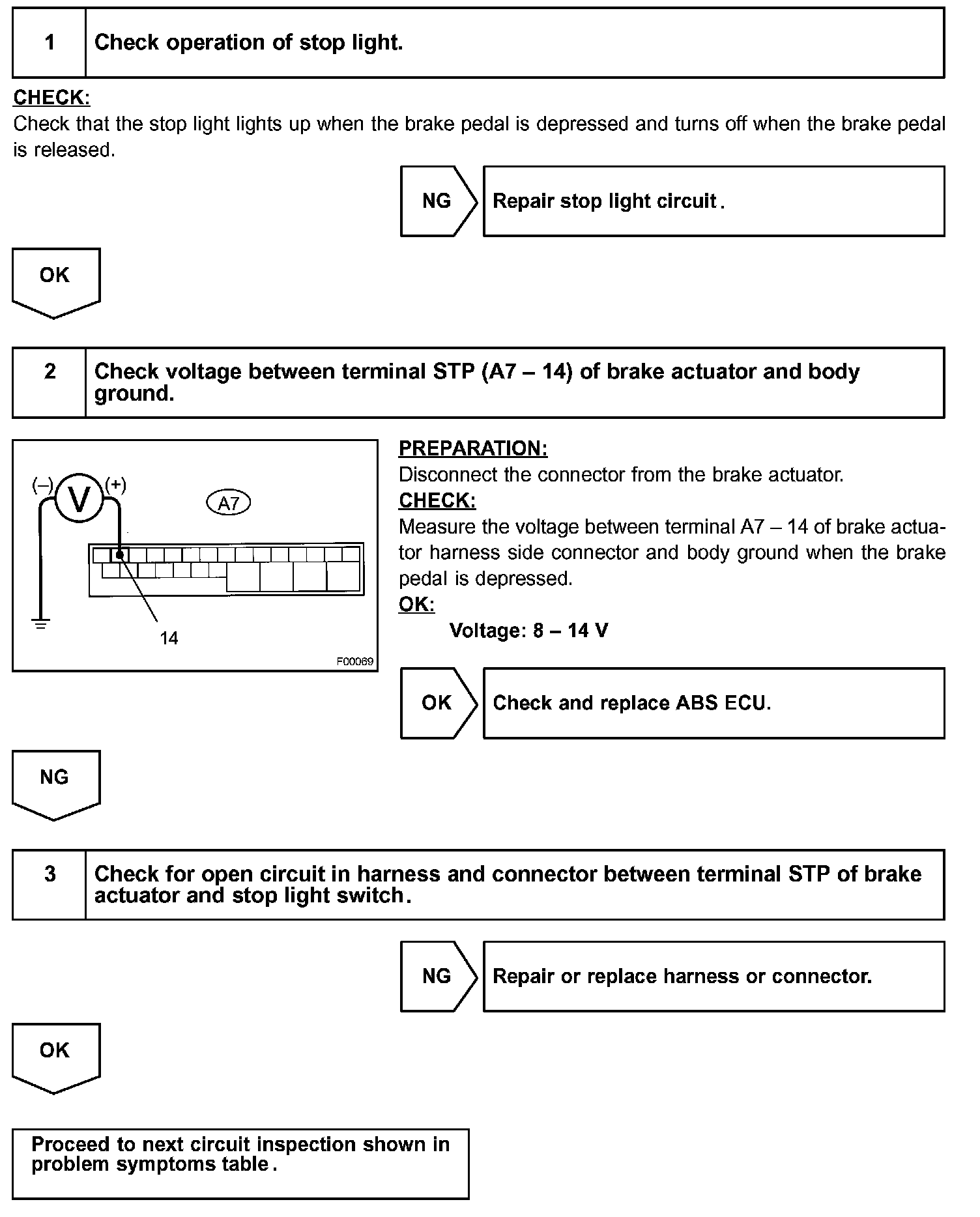

Step 1 - 3:
INSPECTION PROCEDURE
