DTC 62
>>
ABS W/EBD System
ABS W/EBD System
DTC 62 ABS ECU Malfunction

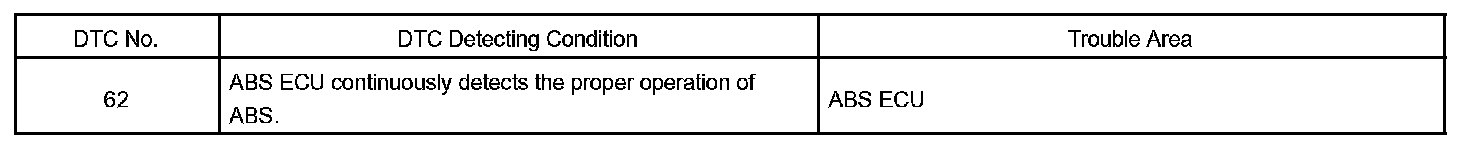

DTC Detecting Condition:
CIRCUIT DESCRIPTION

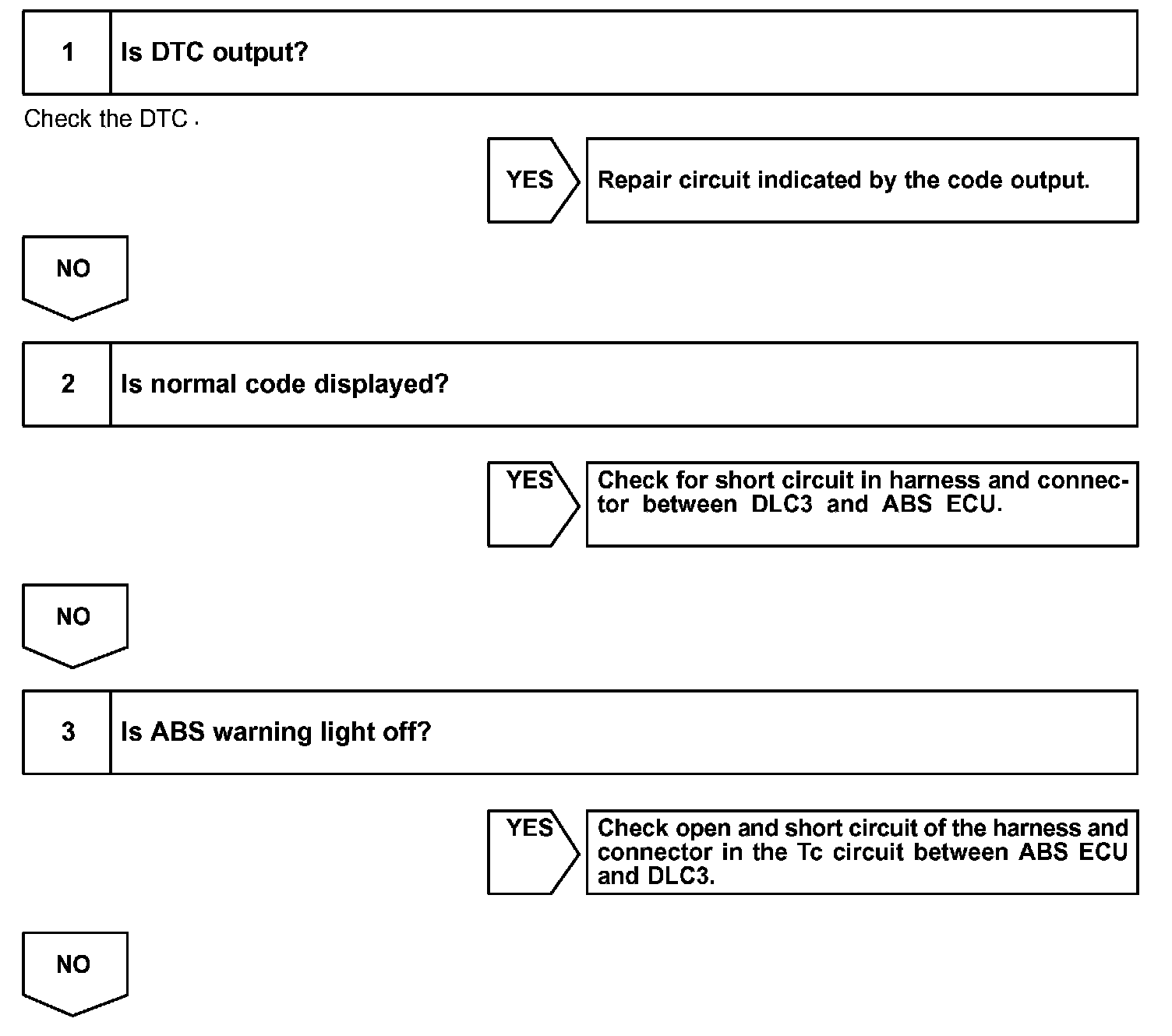

Step 1 - 3:

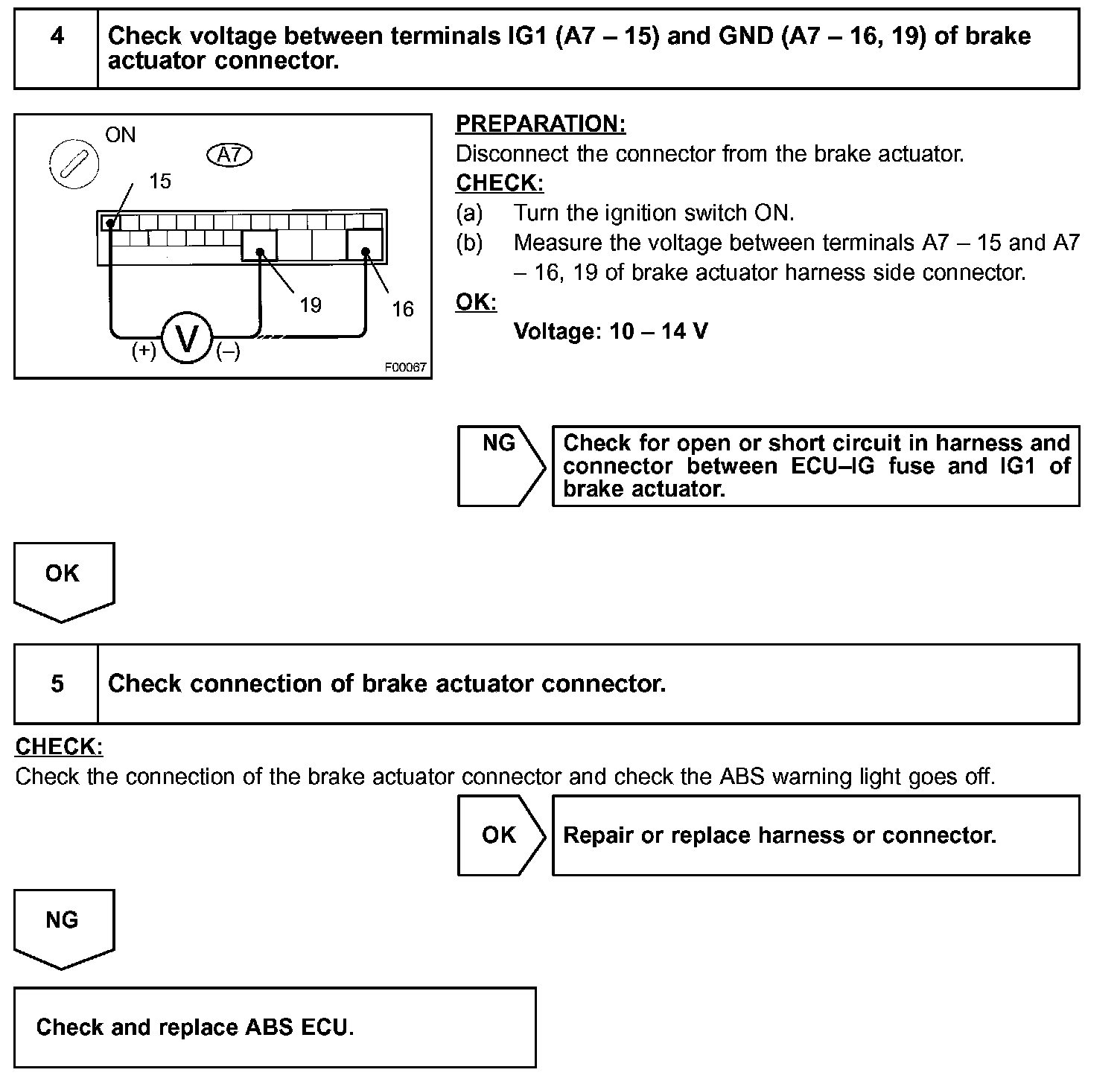

Step 4 - 5:
INSPECTION PROCEDURE
