Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Avalon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Theft Deterrent System
>>
Terminals of ECU
Terminals of ECU

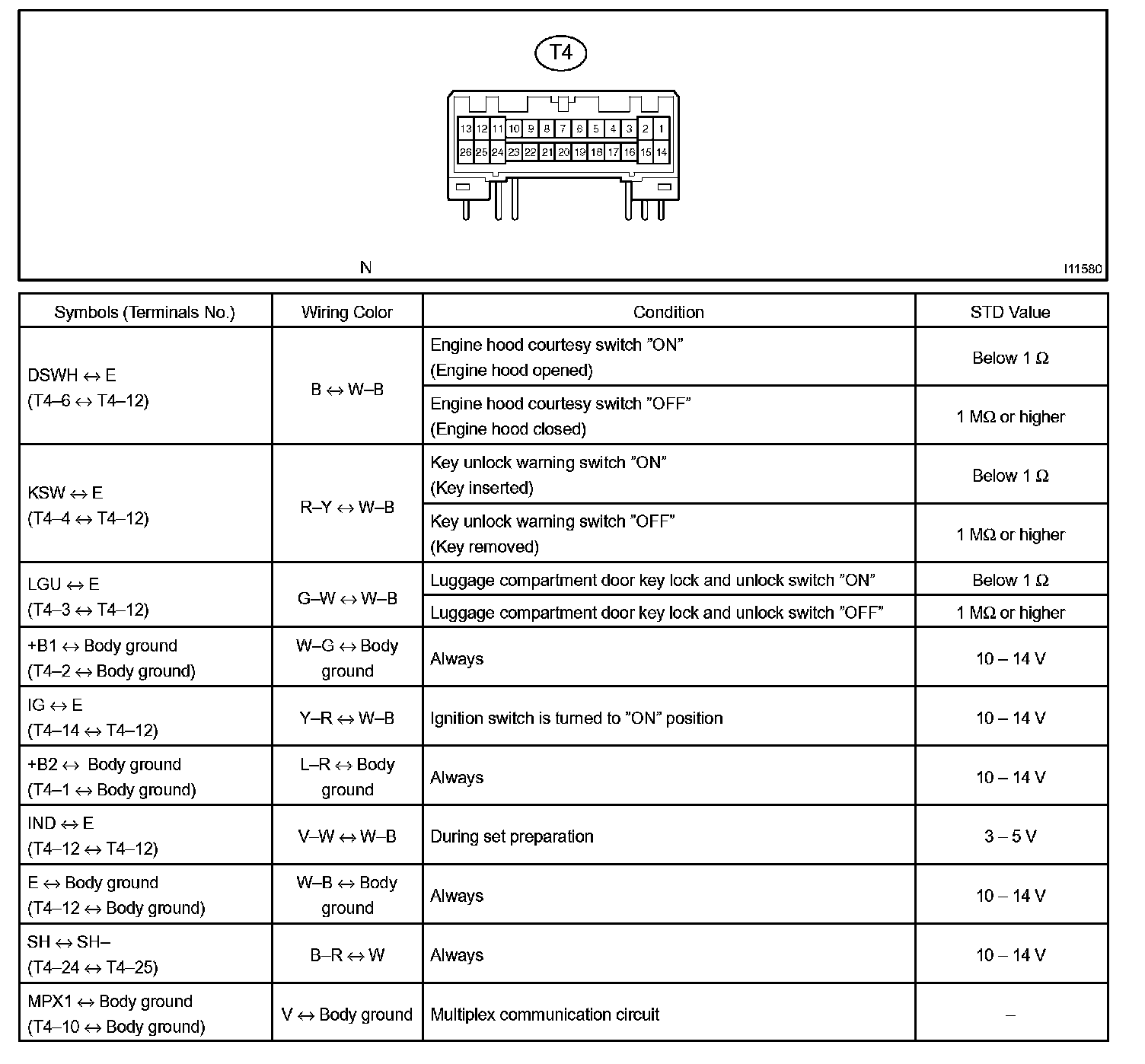

Terminals Of ECU/Pinouts:
