Symptom Diagnostic Procedures

CIRCUIT DESCRIPTION
This circuit provides power to operate the Transponder Key Amplifier.

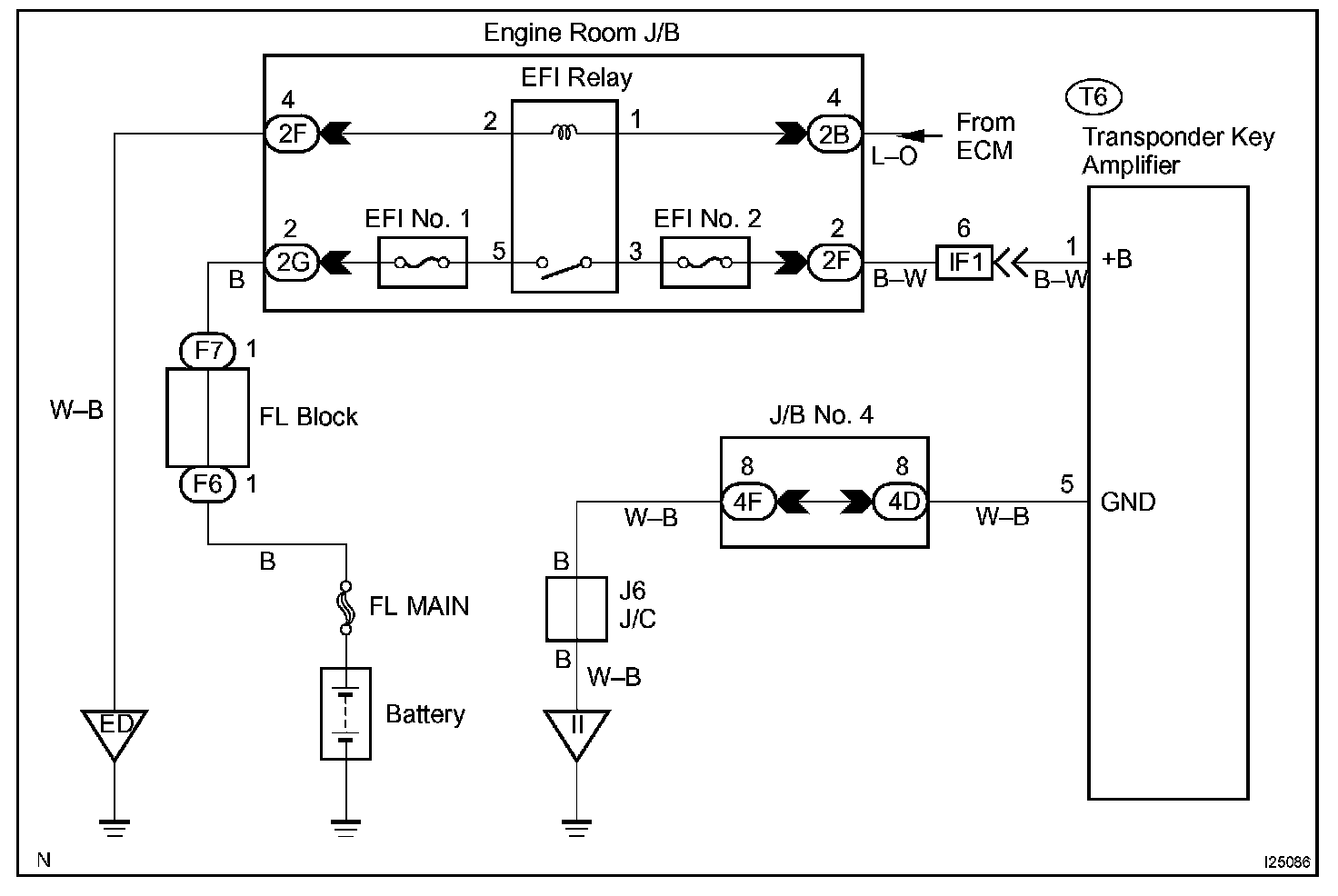

Wiring Diagram:

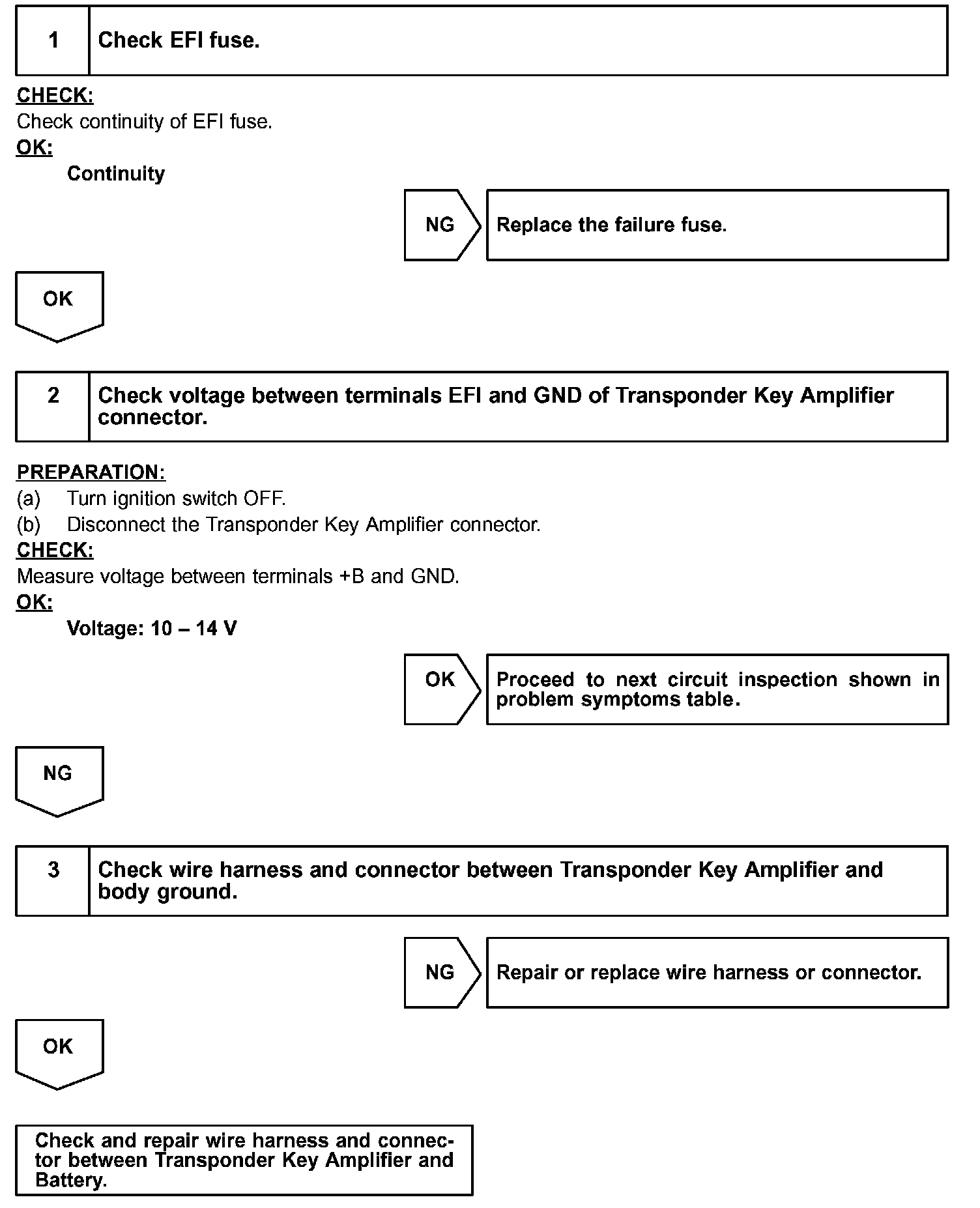

Step 1 - 3:




INSPECTION PROCEDURE
