ECU Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to operate the theft deterrent ECU.

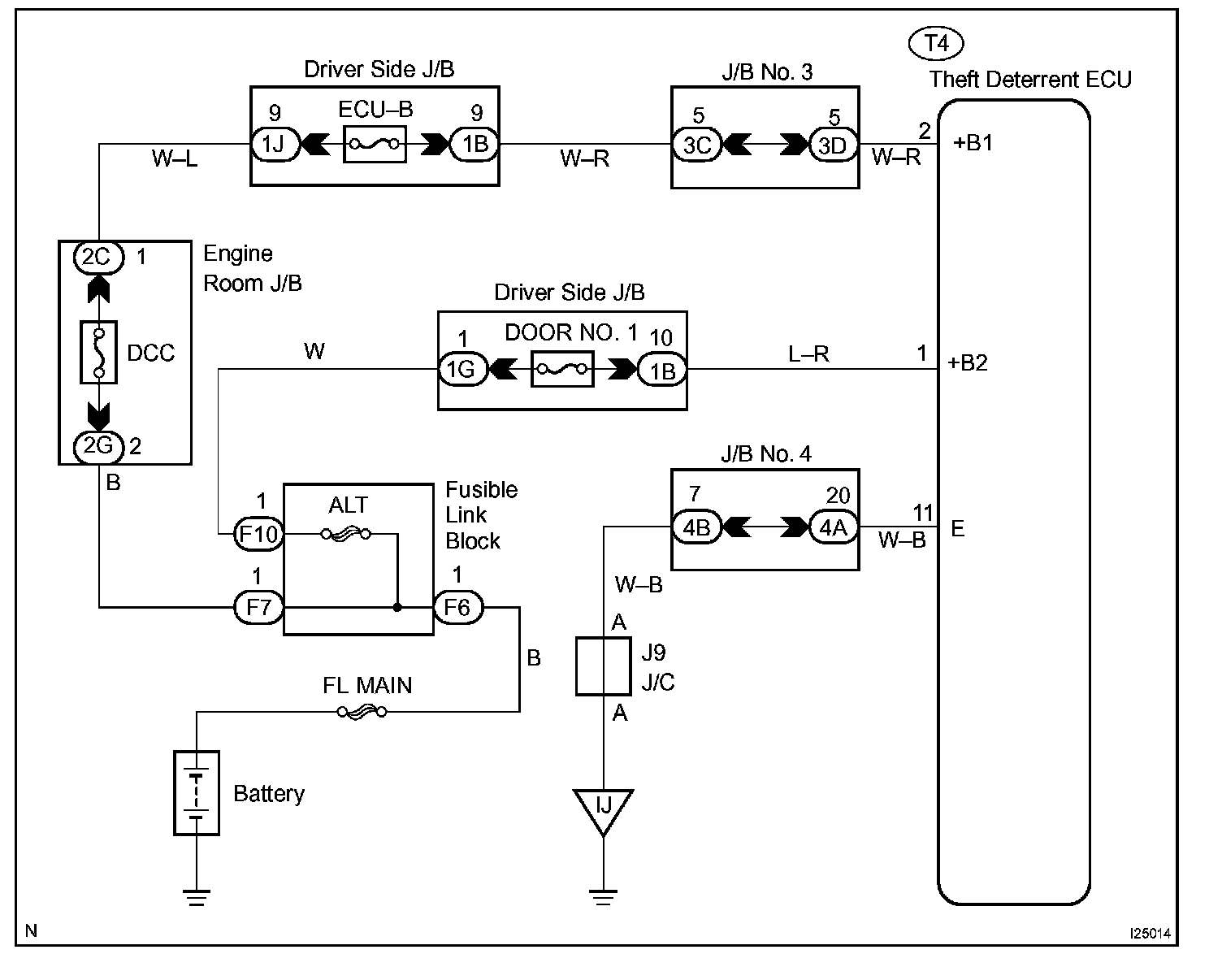

Wiring Diagram:

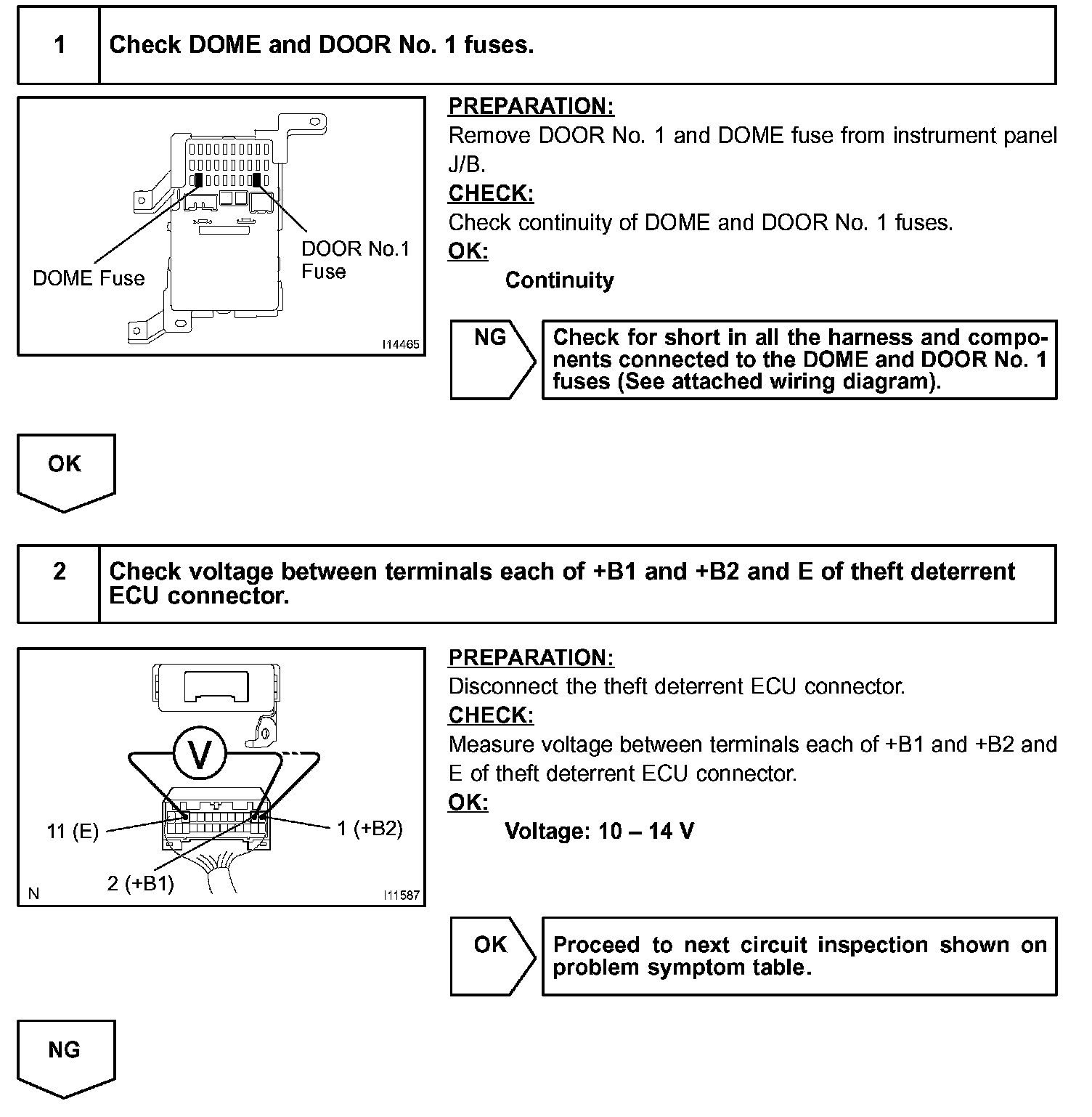

Step 1 - 2:

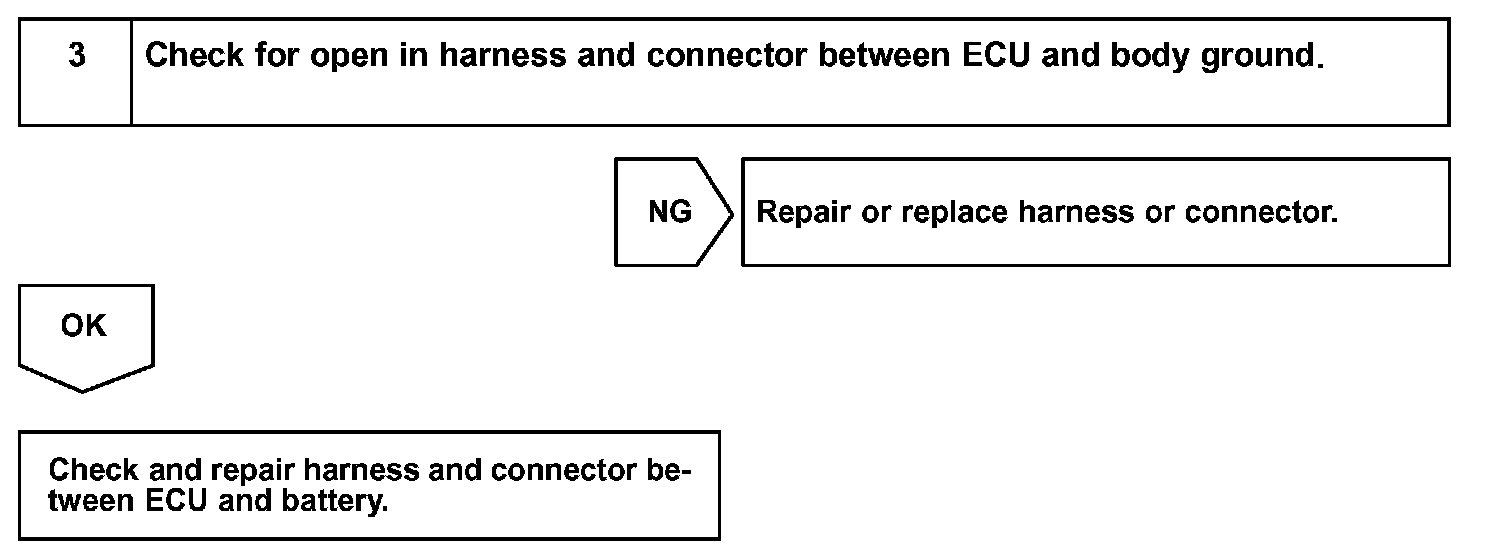

Step 3:




INSPECTION PROCEDURE
