Body Control System
Body Control System

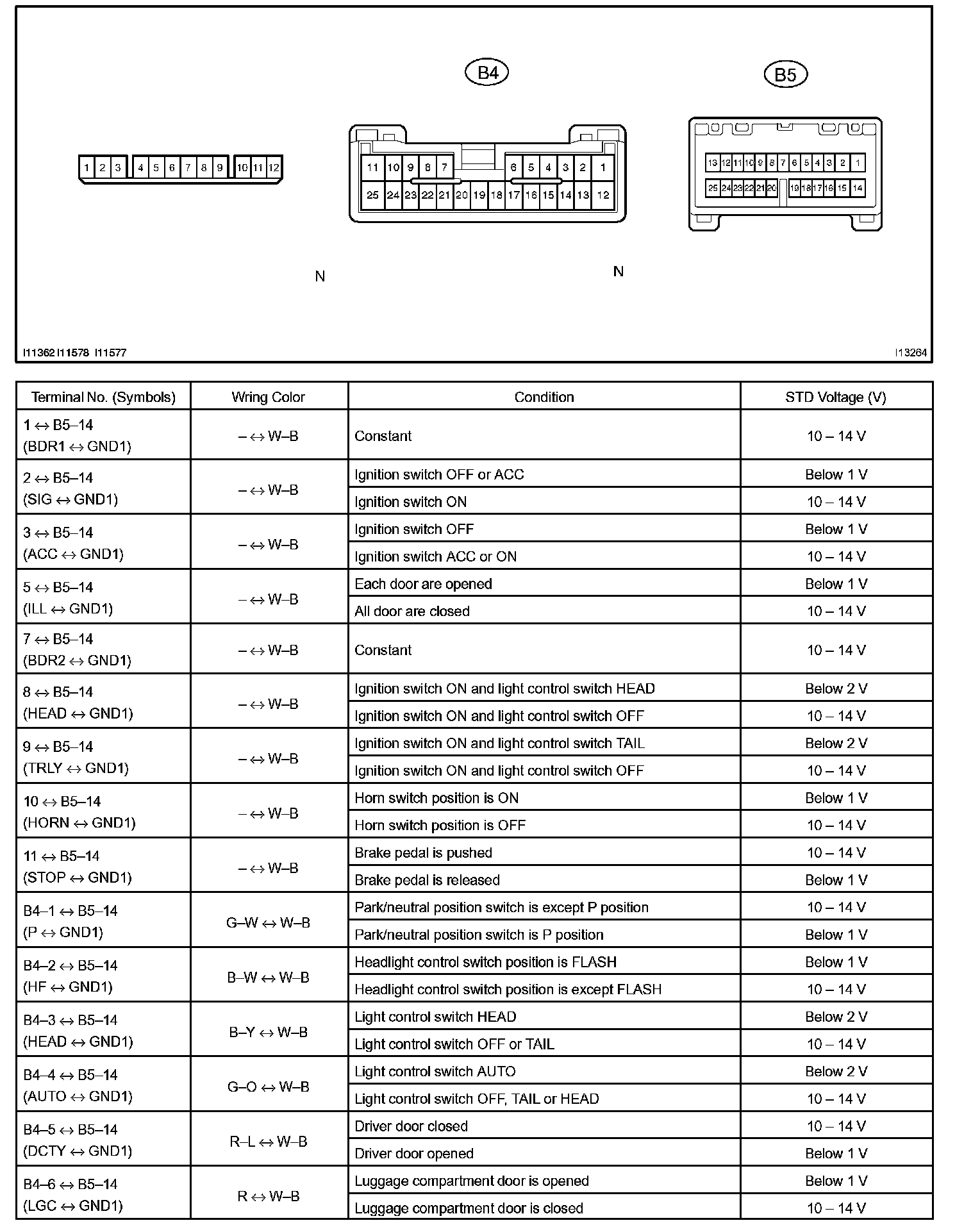

Terminals Of ECU/Pinouts Part 1:

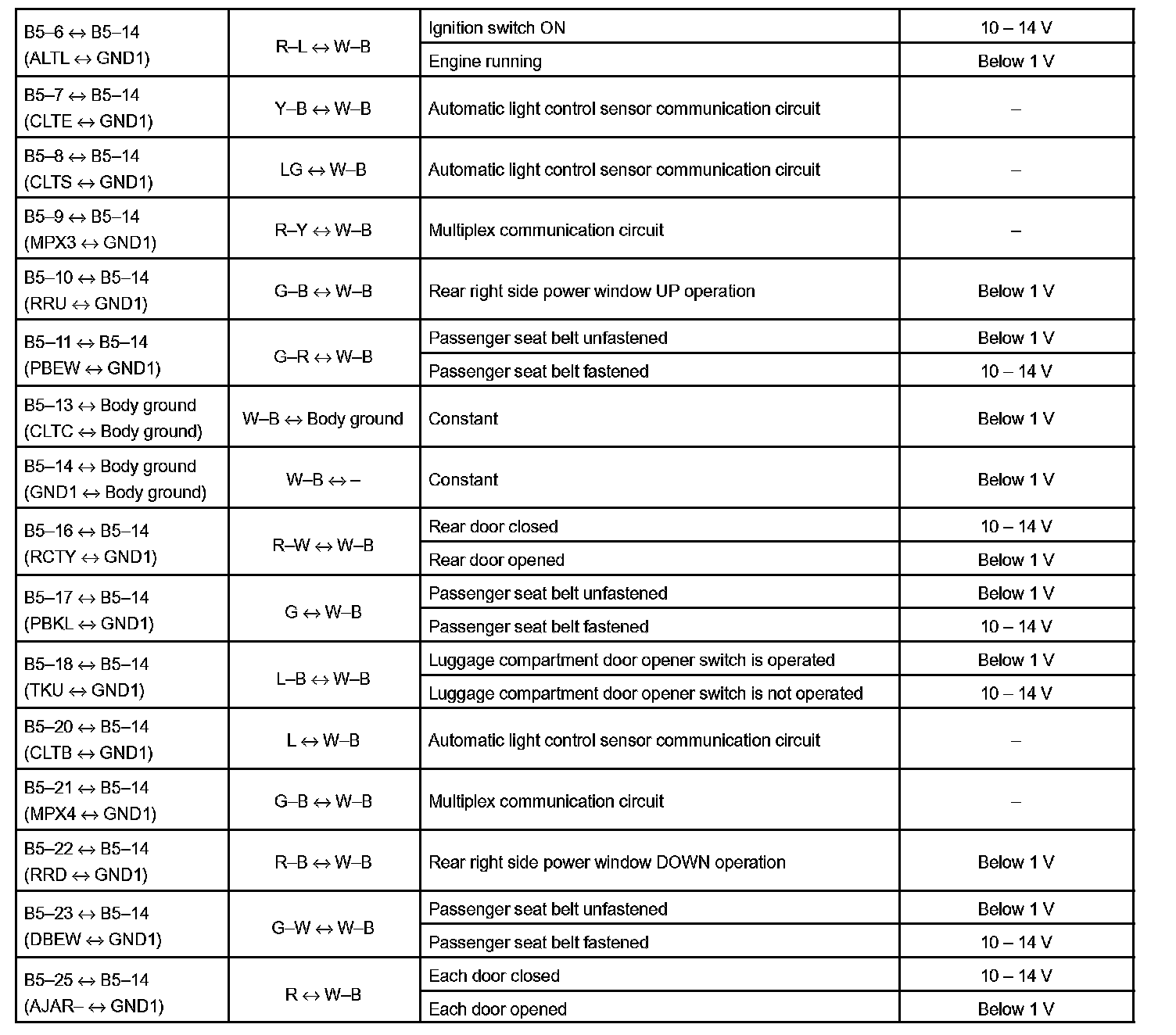

Terminals Of ECU/Pinouts Part 2:

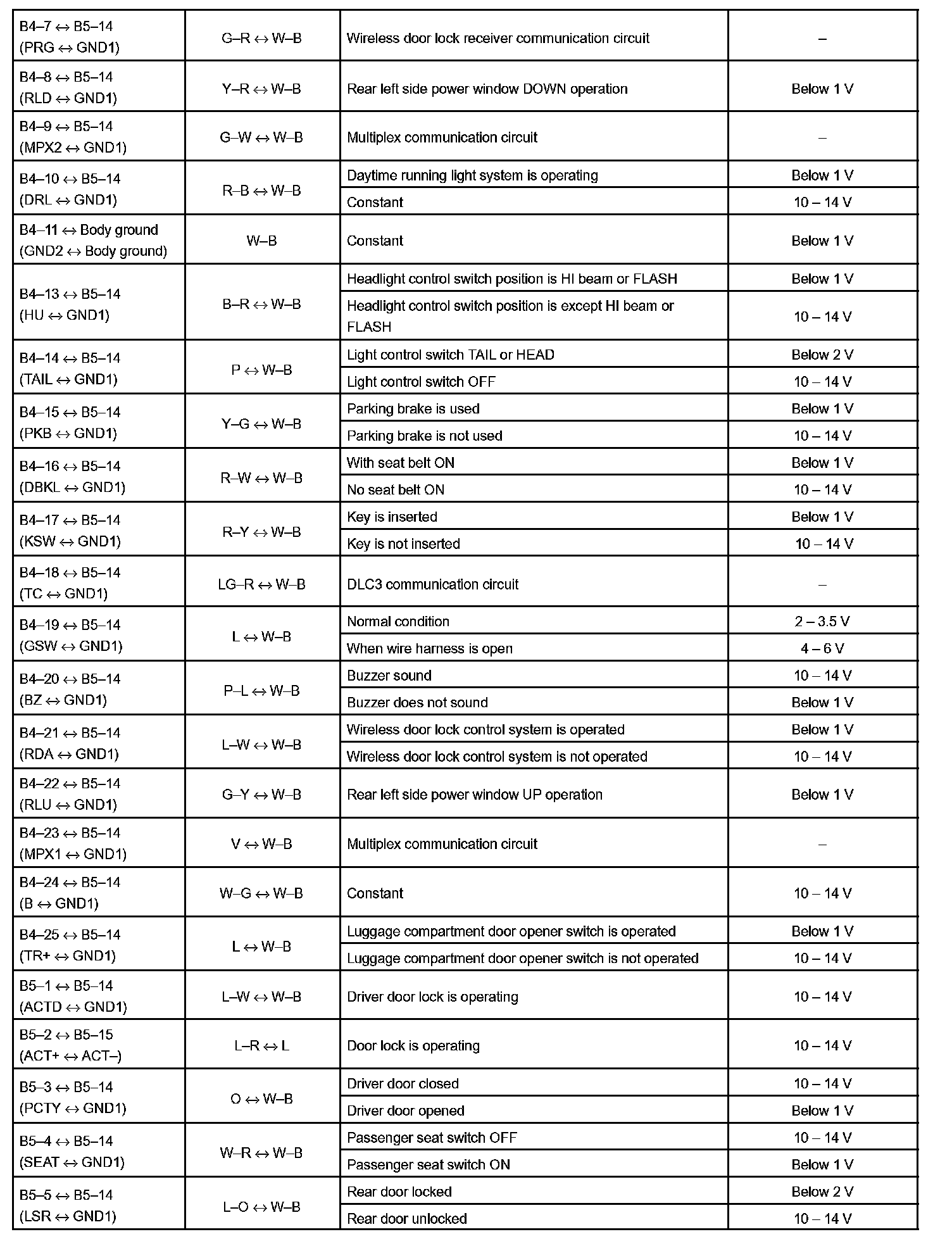

Terminals Of ECU/Pinouts Part 3:
