Driver Door Control System
Driver Door Control System

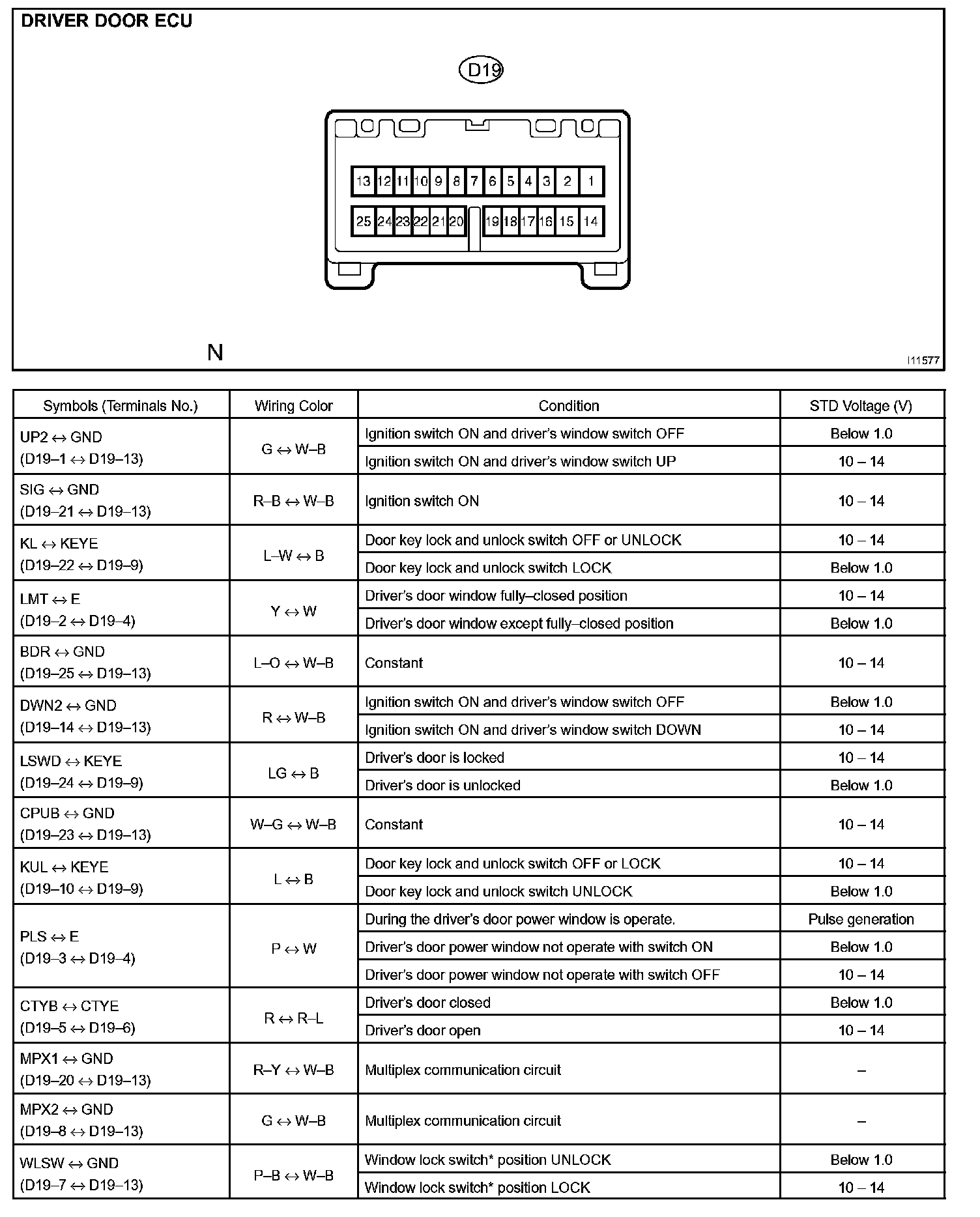

Terminals Of ECU/Pinouts Part 1:

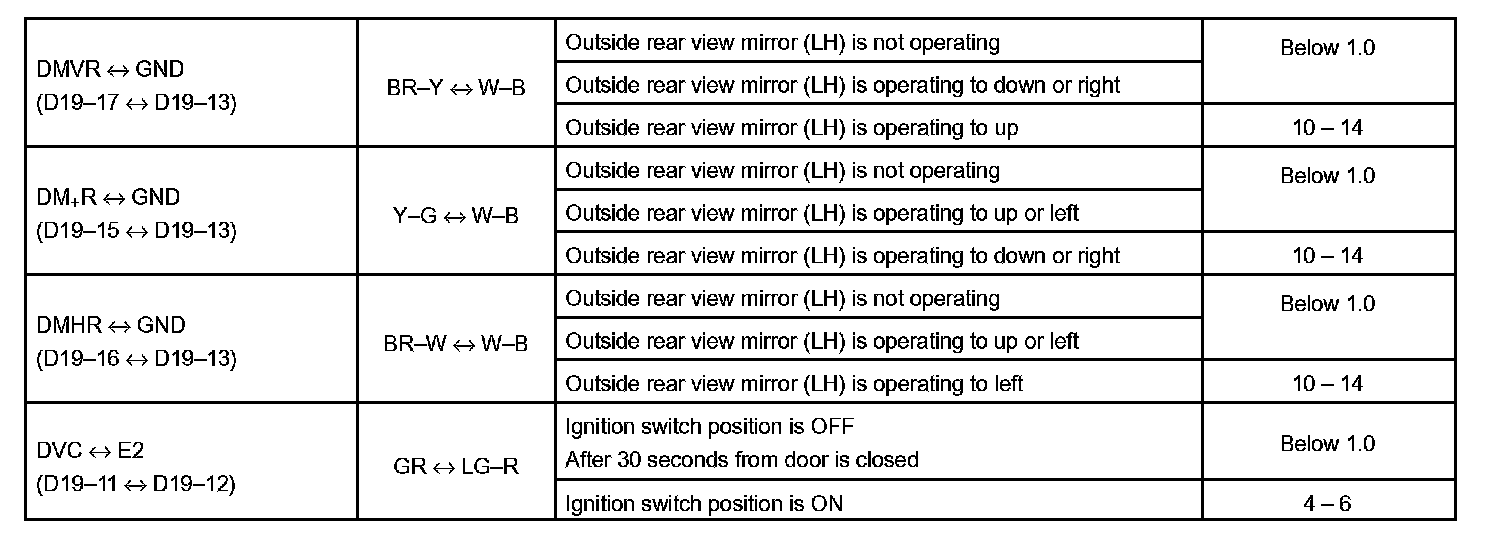

Terminals Of ECU/Pinouts Part 2:
