Daytime Running Light No. 2, 3 and 4 Relay Circuit
Daytime Running Light No. 2, 3 and 4 Relay Circuit

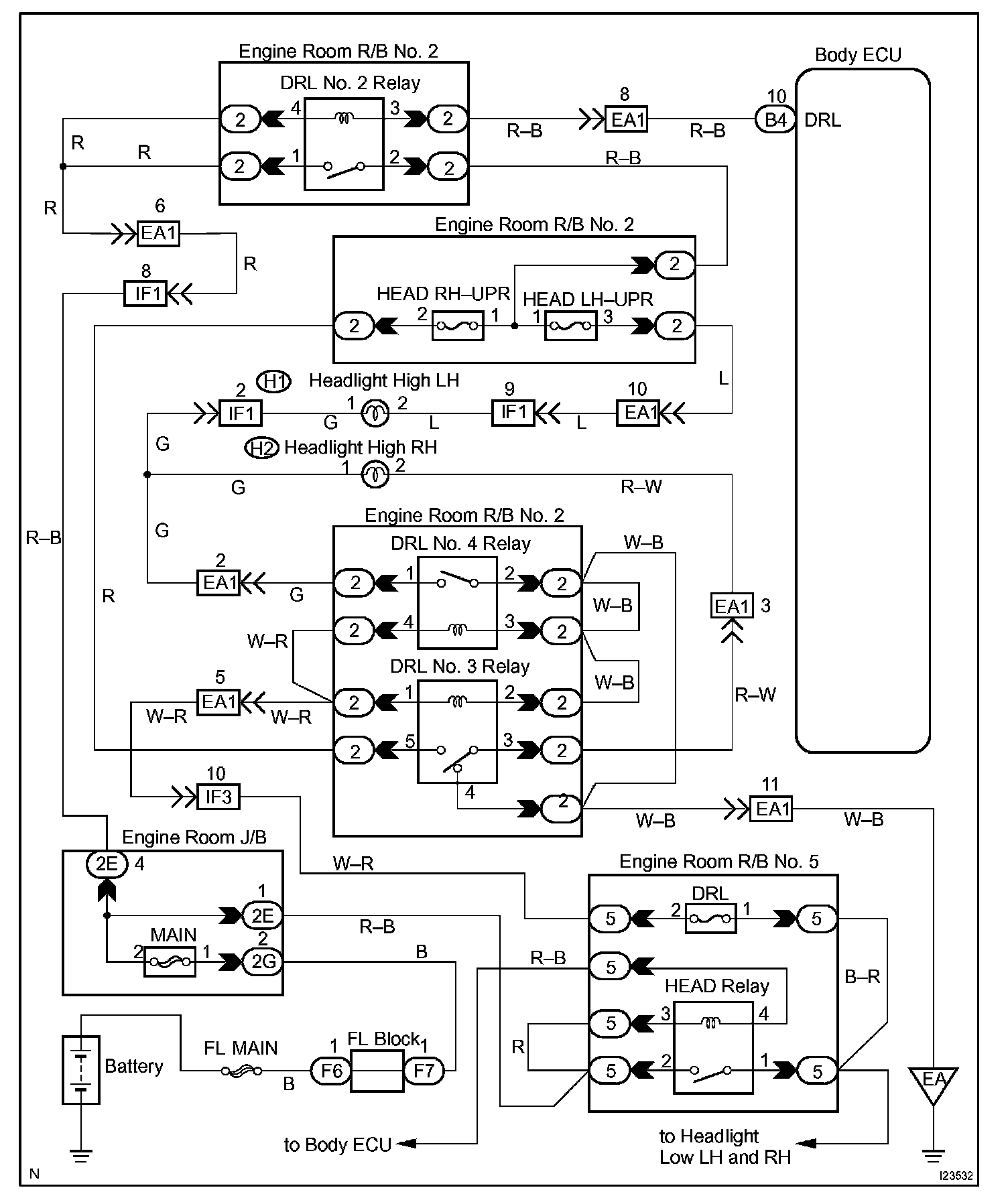

Wiring Diagram:

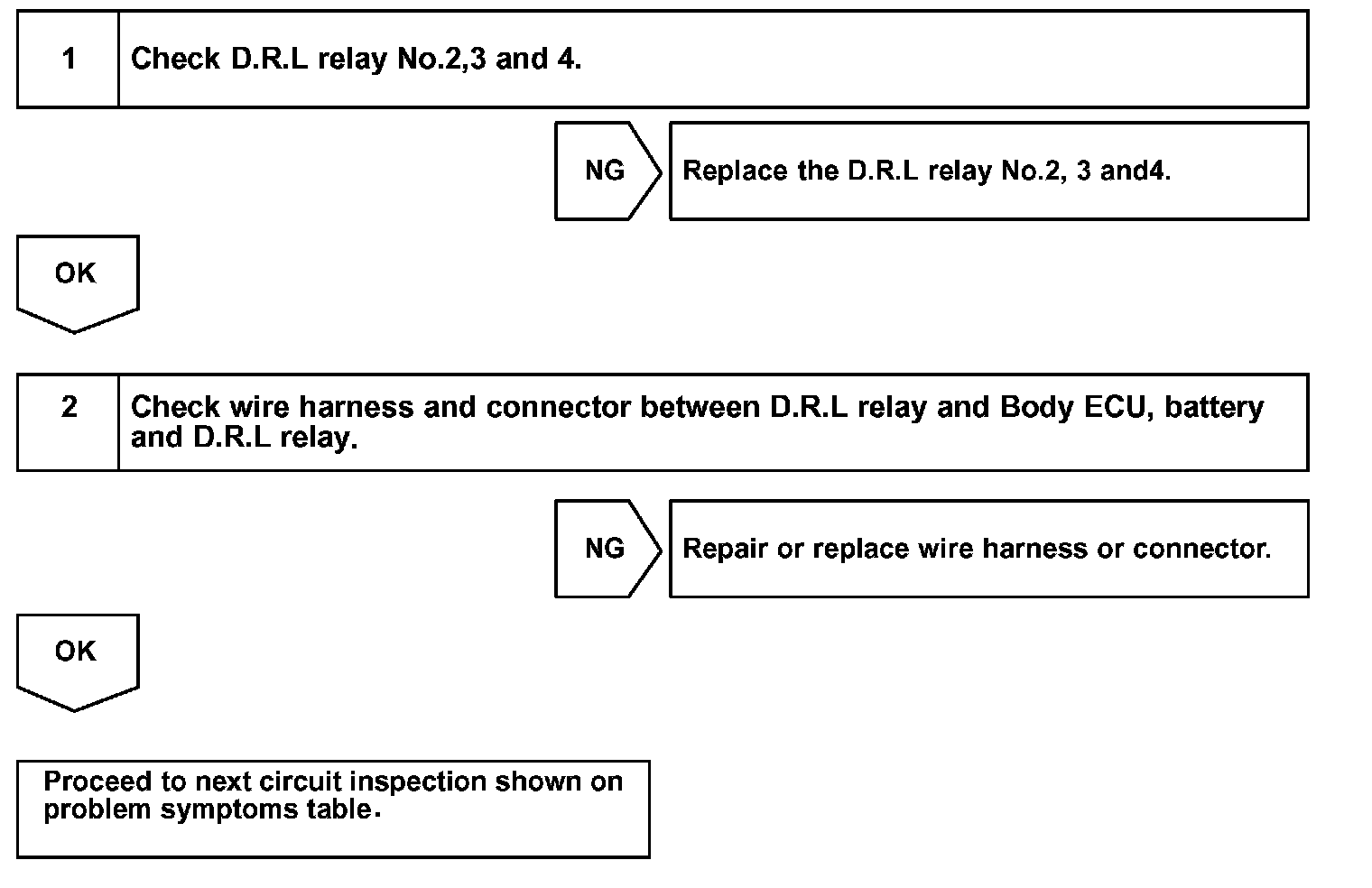

Step 1 - 2:
INSPECTION PROCEDURE
