Horn Circuit

CIRCUIT DESCRIPTION

The horn is connected to the body ECU and activated by the body ECU during warning of the theft deterrent system.

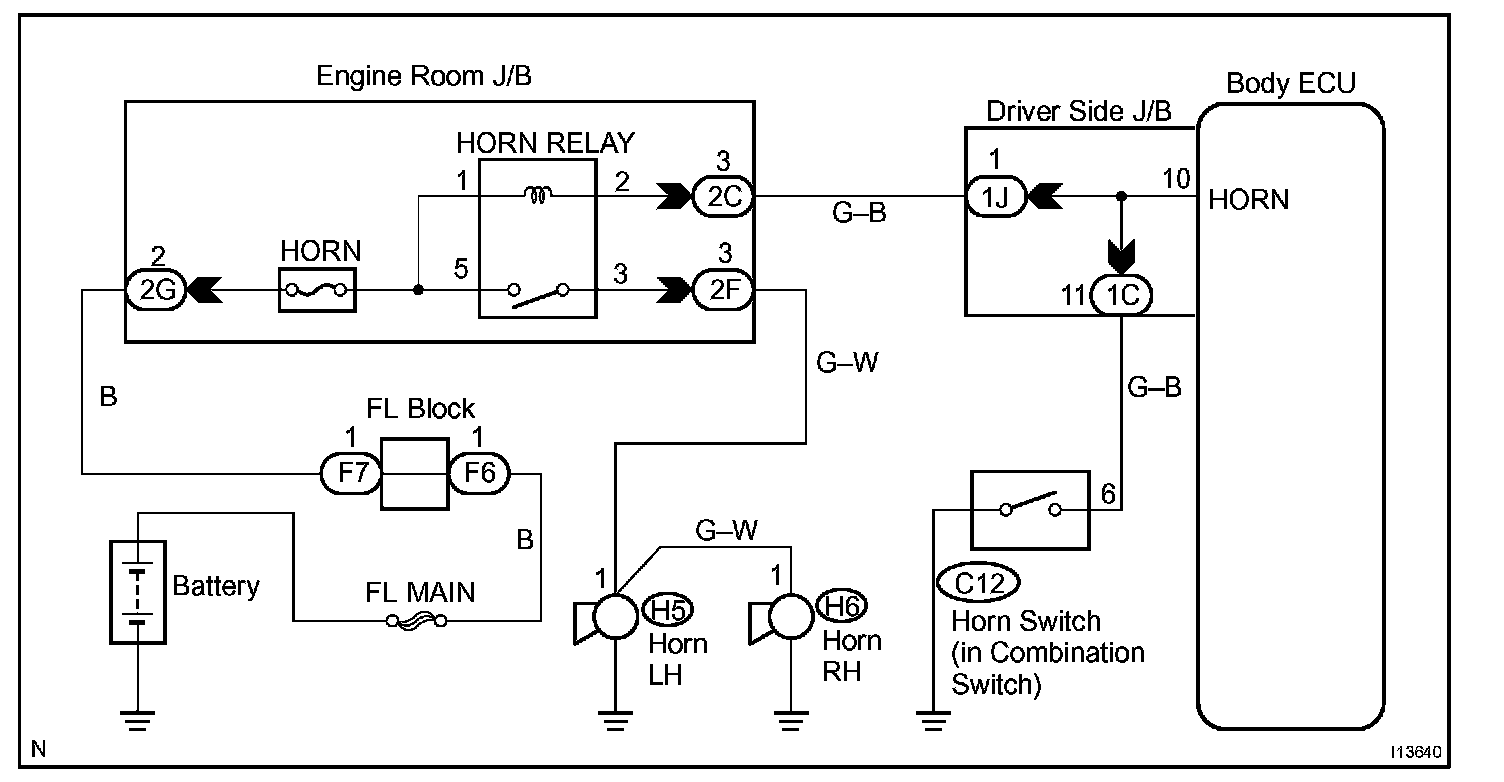

Wiring Diagram:






Step 1 - 2:

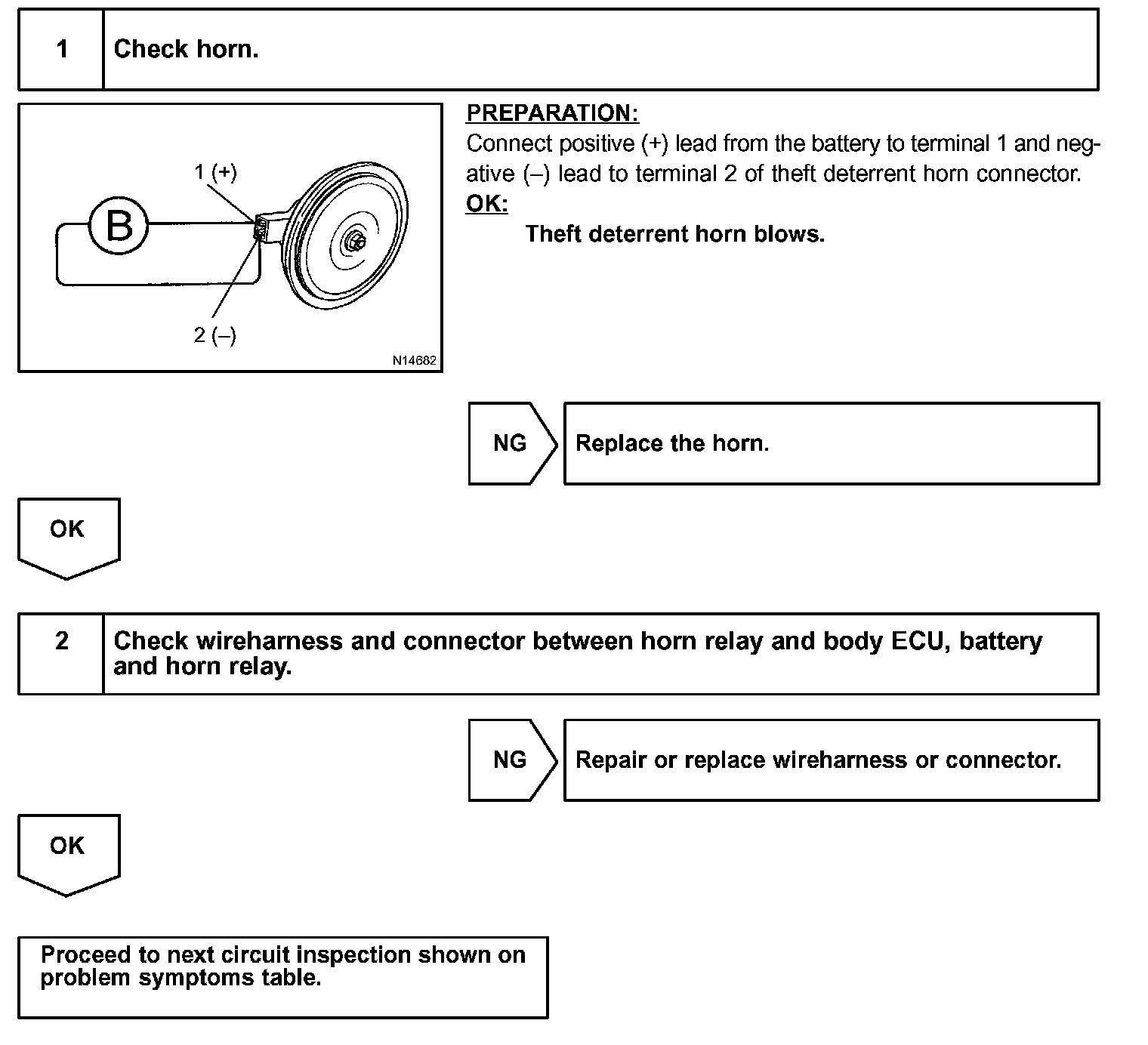

INSPECTION PROCEDURE
