Luggage Opener Motor Circuit
Luggage Opener Motor Circuit

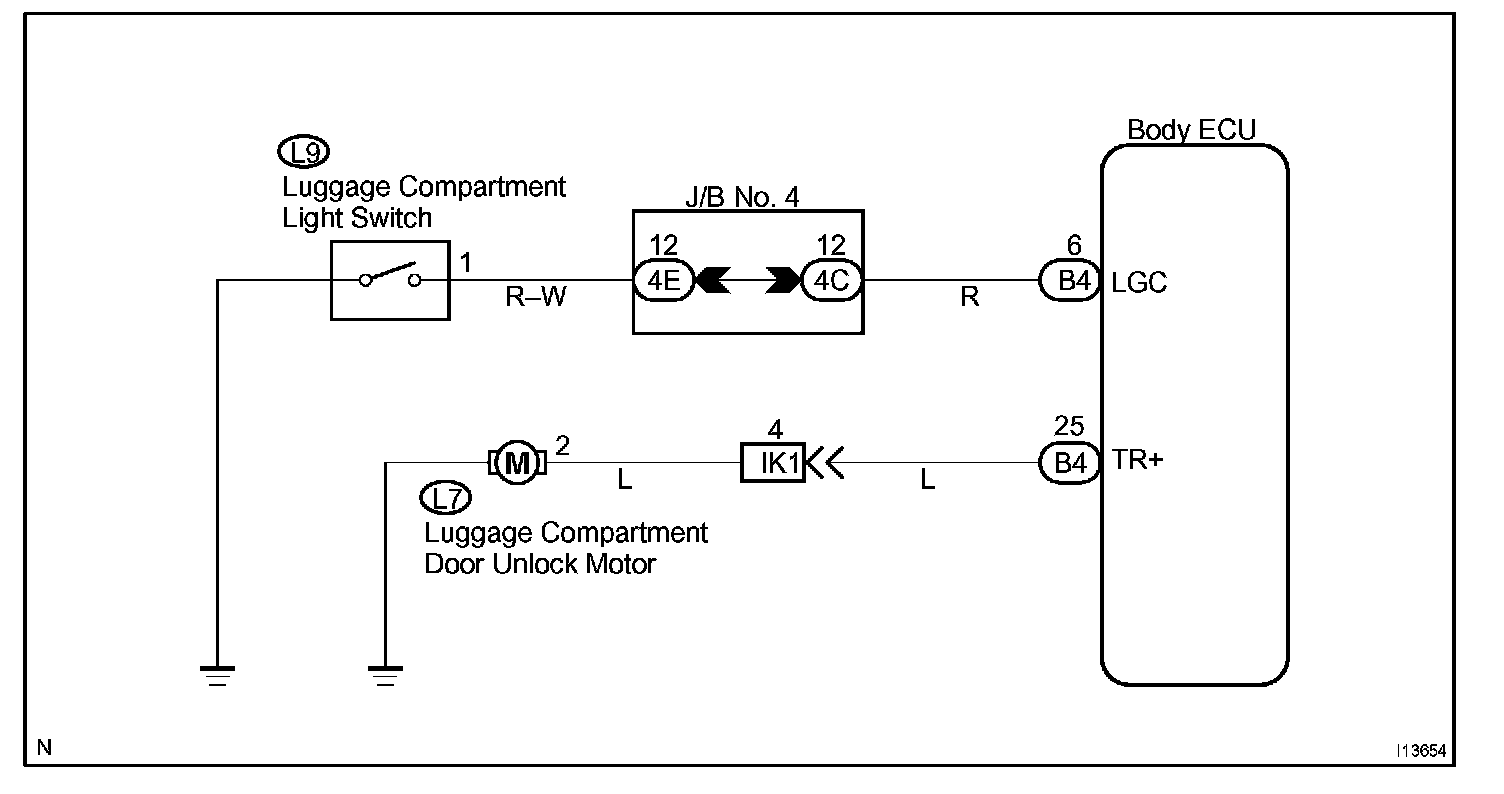

Wiring Diagram:

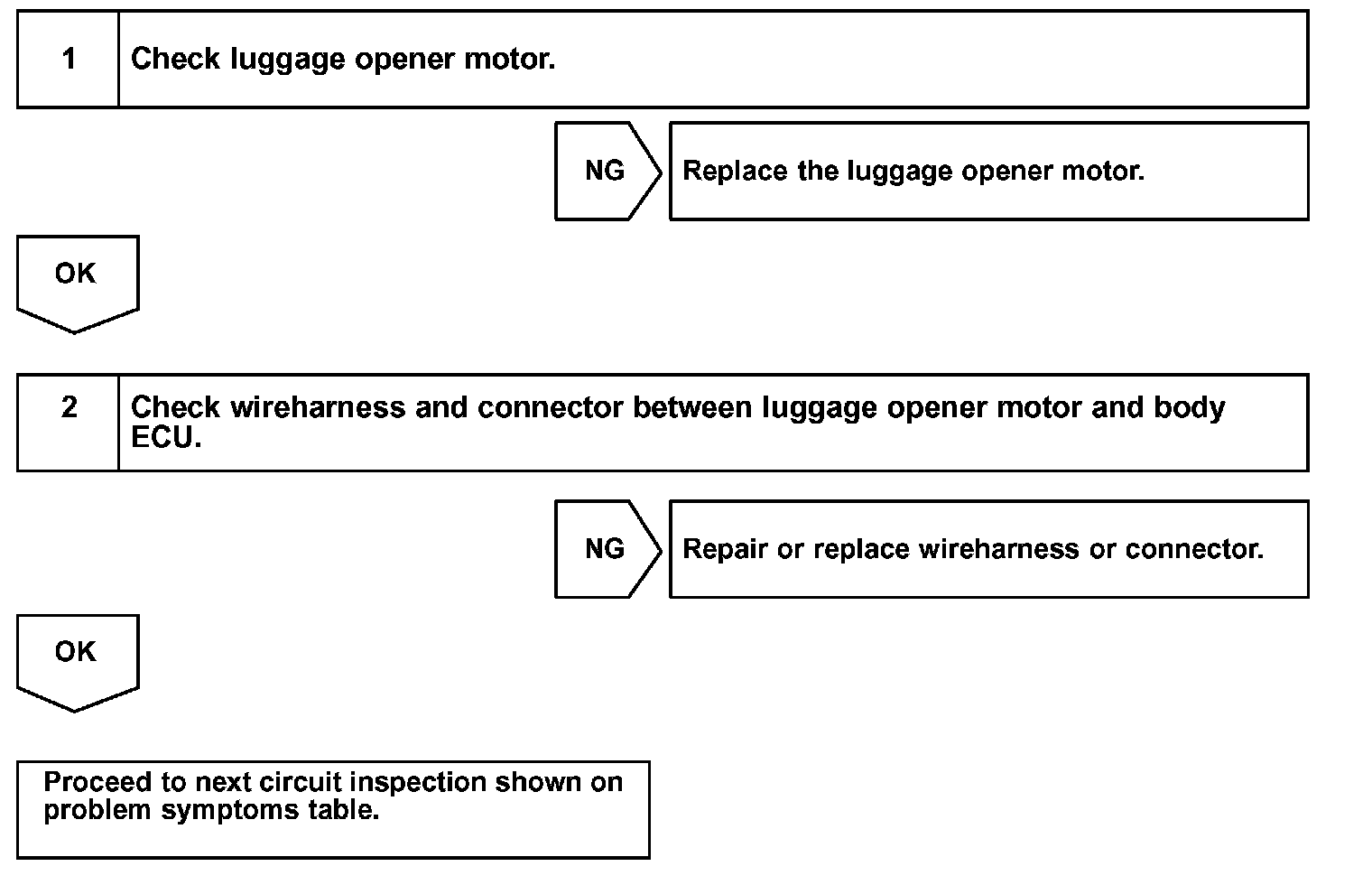

Step 1 - 2:
INSPECTION PROCEDURE
