Rear Power Window Switch Circuit
CIRCUIT DESCRIPTION
Power window switch circuit can be checked using DTC check.

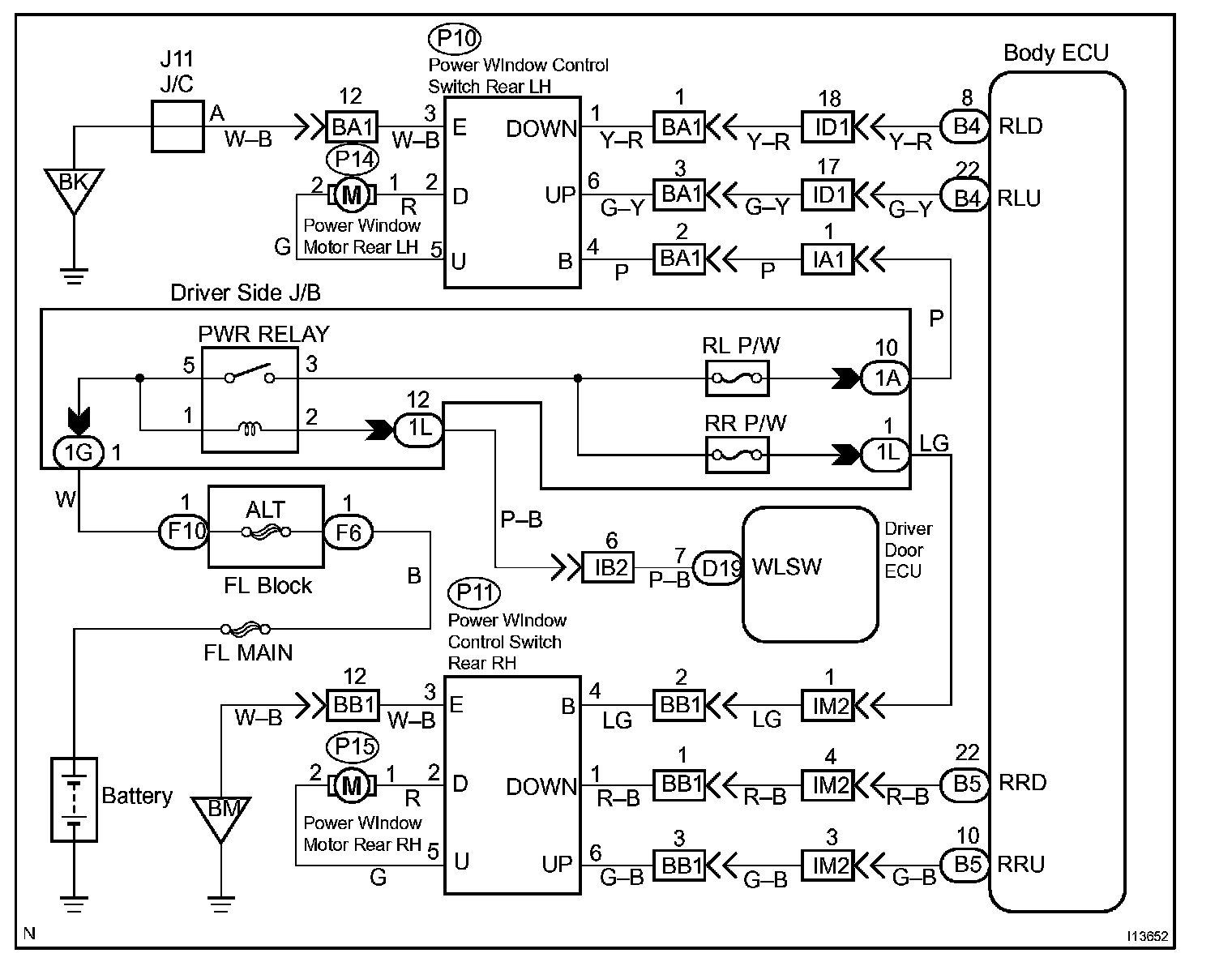

Wiring Diagram:

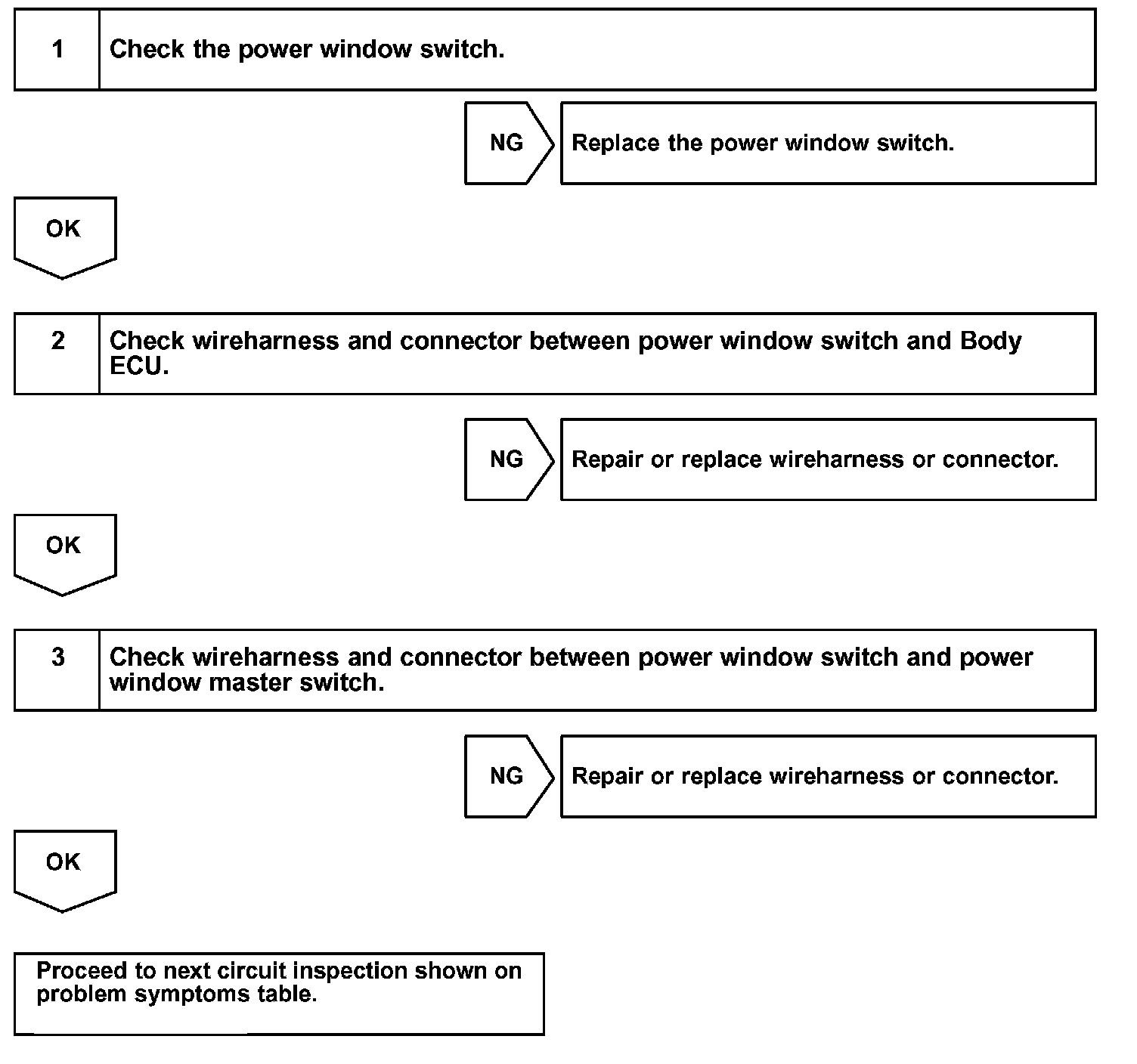

Step 1 - 3:
INSPECTION PROCEDURE
