Stop Light Switch Circuit

CIRCUIT DESCRIPTION
The Body ECU is detecting the condition of the stop light switch

Wiring Diagram:

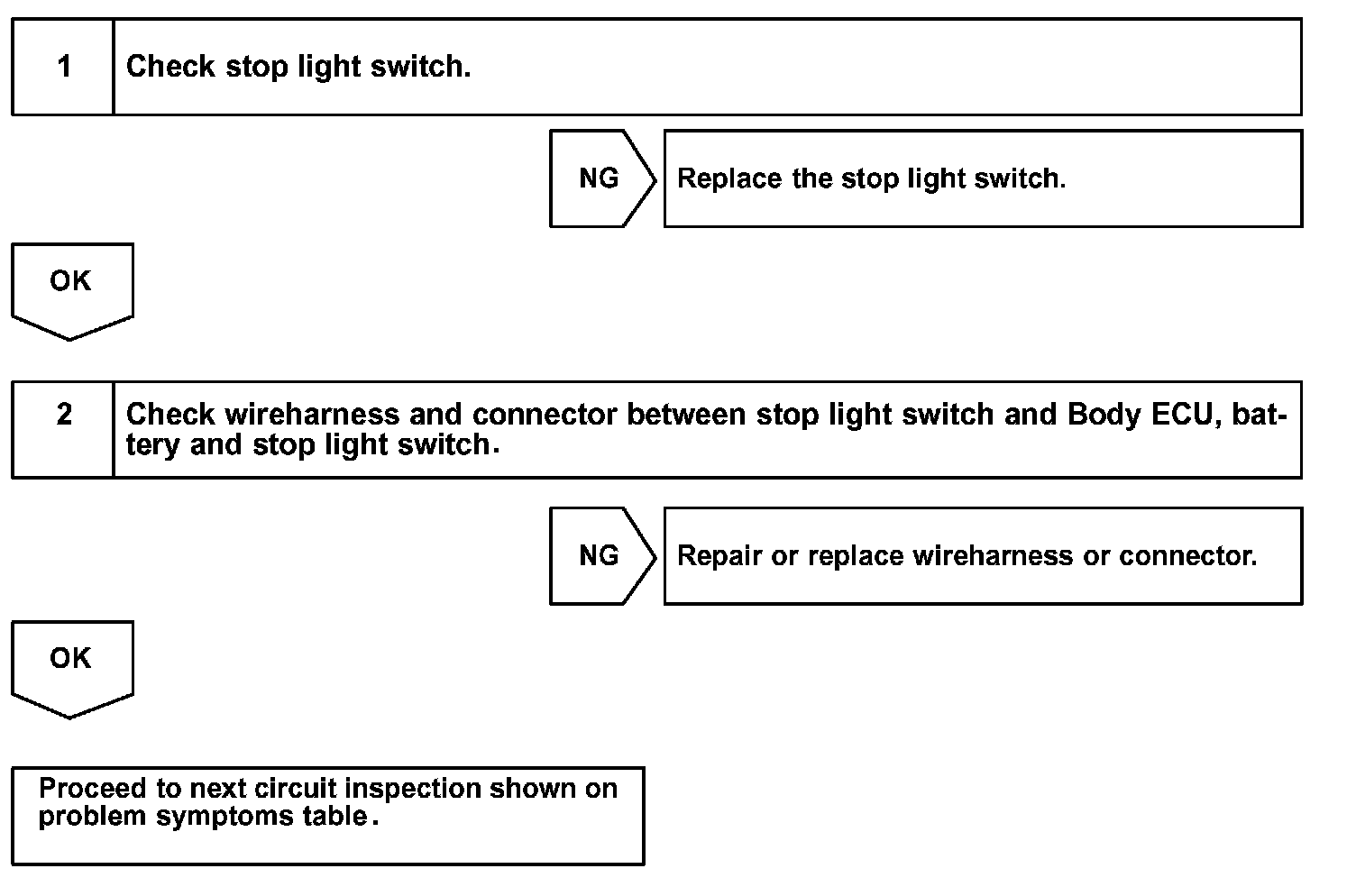

Step 1 - 2:




INSPECTION PROCEDURE
