Symptom Index

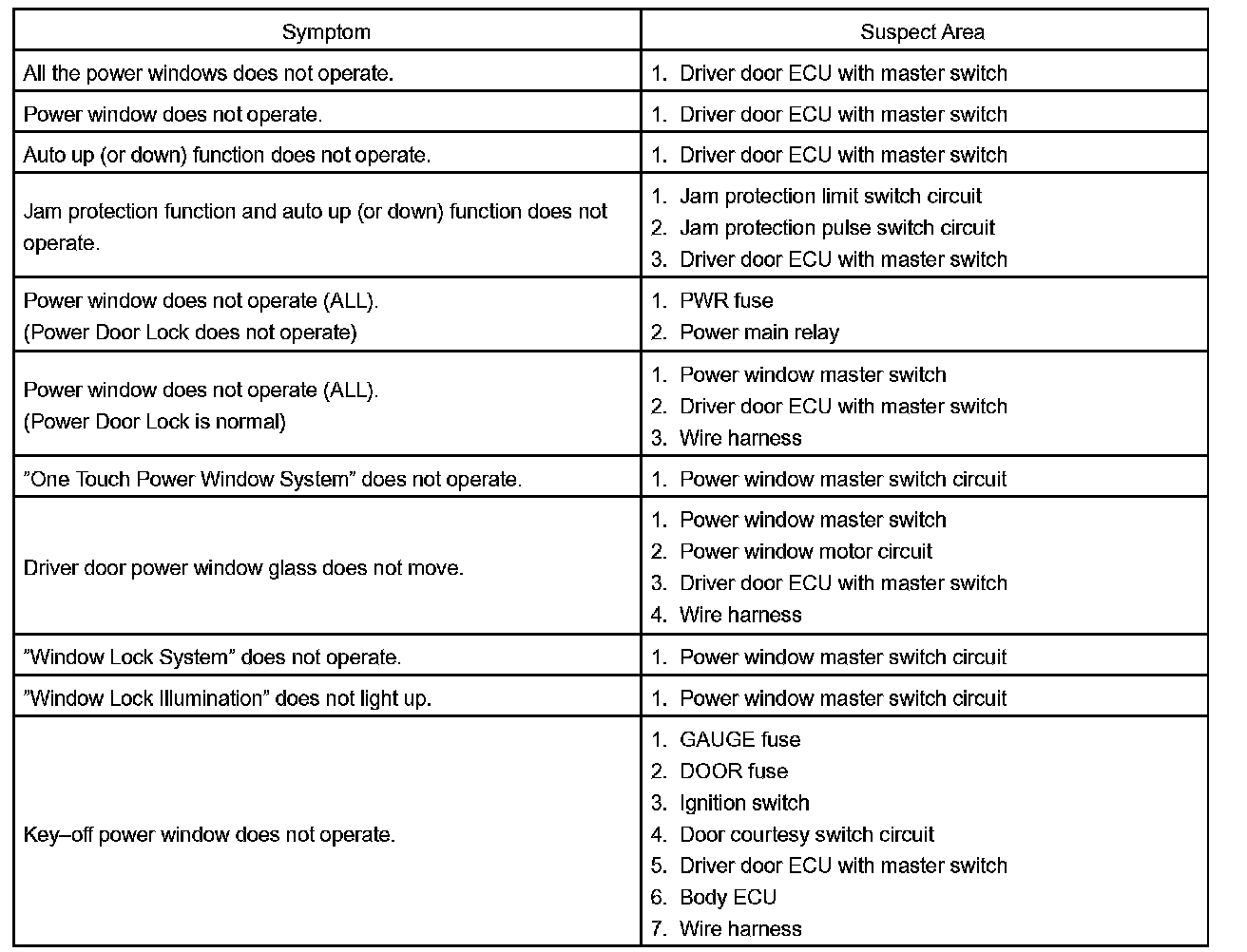

Problem Symptom Table - Power Window Control System:

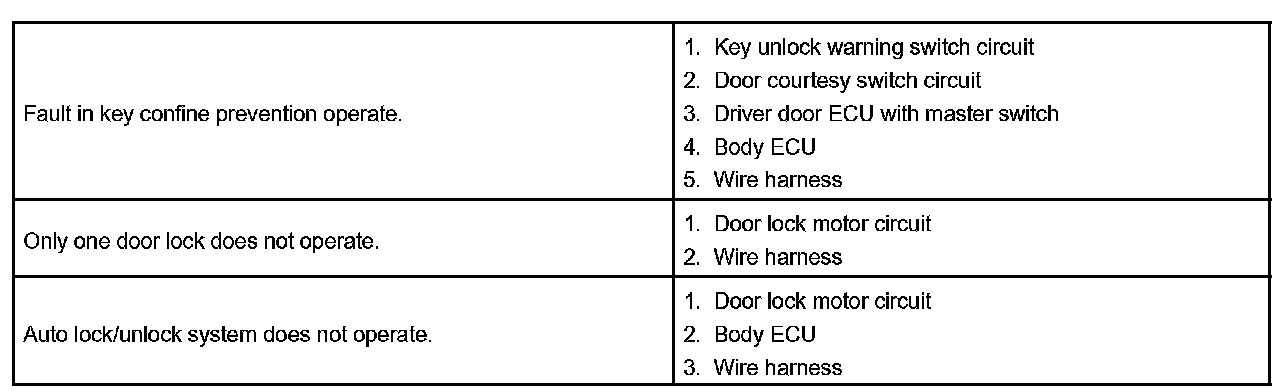

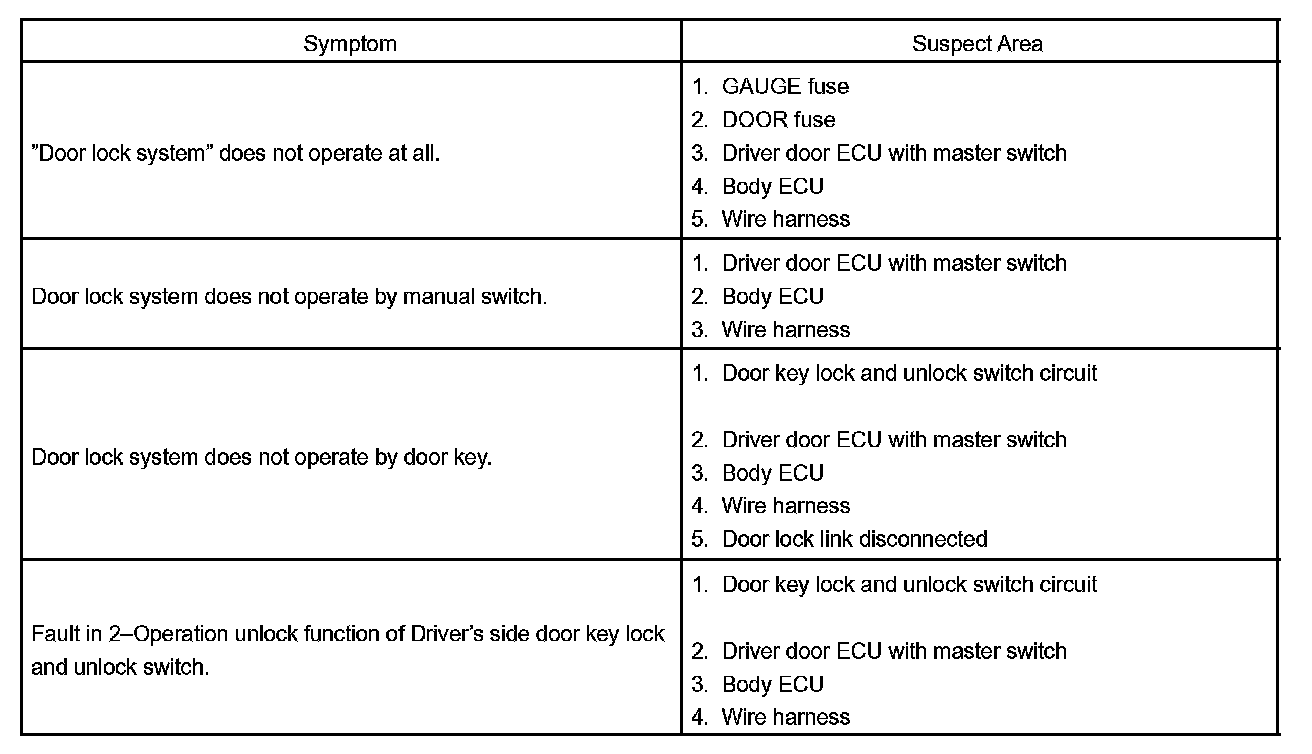

Problem Symptom Table - Power Door Lock Control System Part 1:



Problem Symptom Table - Power Door Lock Control System Part 2:

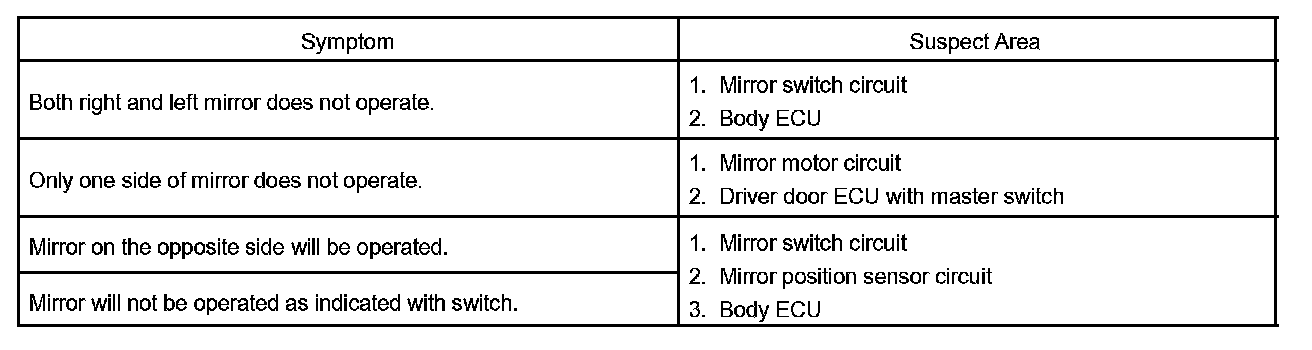

Problem Symptom Table - Power Mirror Control System:
