Overhaul

DISASSEMBLY

1. REMOVE LUGGAGE COMPARTMENT DOOR LOCK
a. Disconnect the control links from the luggage compartment door lock cylinder and door lock opener assembly.
b. w/ Power door opener:
Disconnect the connector.

c. Remove the 2 bolts and door lock.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)




d. Remove the door lock cover from the door lock.

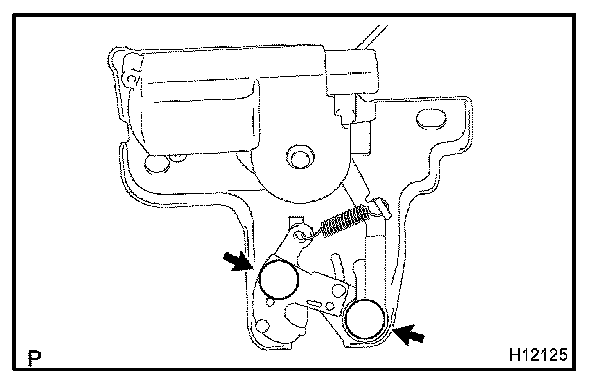

HINT: At the time of reassembly, please refer to the following item.
Apply MP grease to the sliding and rotating parts of the door lock.

2. REMOVE LUGGAGE COMPARTMENT DOOR LOCK OPENER ASSEMBLY
Remove the bolt and luggage compartment door lock opener assembly.

3. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

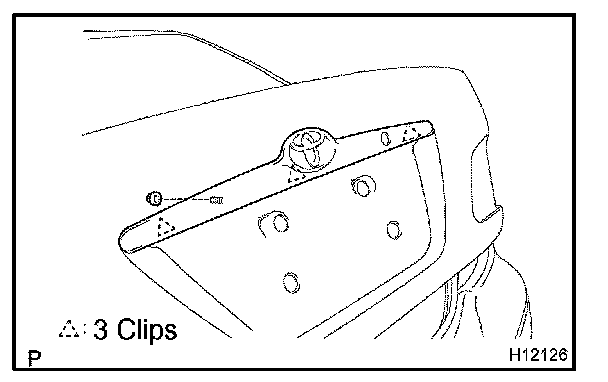

4. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
a. Remove the nut.
b. Remove the luggage compartment door outside garnish by compressing clips from the inside to disengage them.

5. REMOVE BACKUP LIGHTS

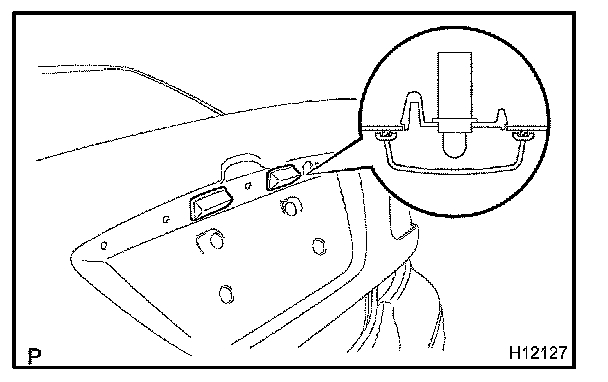

6. REMOVE LICENSE PLATE LIGHTS
a. Disconnect the connectors.
b. Using a screwdriver, remove the license plate lights.

HINT: Tape the screwdriver tip before use.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
