Rear Seat

DISASSEMBLY




1. REMOVE HEADRESTS

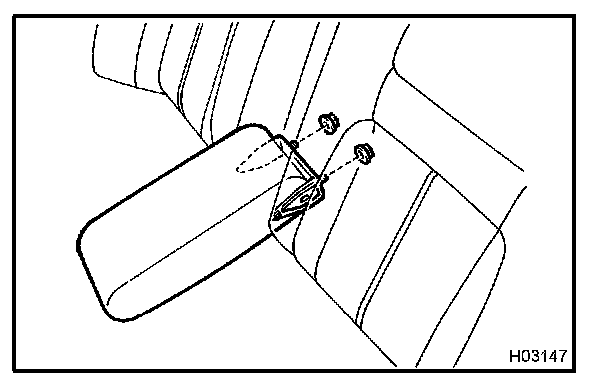

2. REMOVE CENTER ARMREST
Remove the 2 nuts and center armrest.

Torque: 5.9 N.m (60 kgf.cm, 52 in.lbf)

3. REMOVE SHOULDER BELT GUIDES
Remove the 4 screws and 2 shoulder belt guides.

4. REMOVE HEADREST SUPPORTS
5. REMOVE SEATBACK COVER
Remove the hog rings and seatback cover from the seatback pad with frame.

6. REMOVE SEAT CUSHION COVER
Remove the hog rings and seat cushion cover from the seat cushion pad.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
