Mirror Switch Circuit
CIRCUIT DESCRIPTIONThis circuit detects the conditions of the mirror selection switch and the mirror position switch.

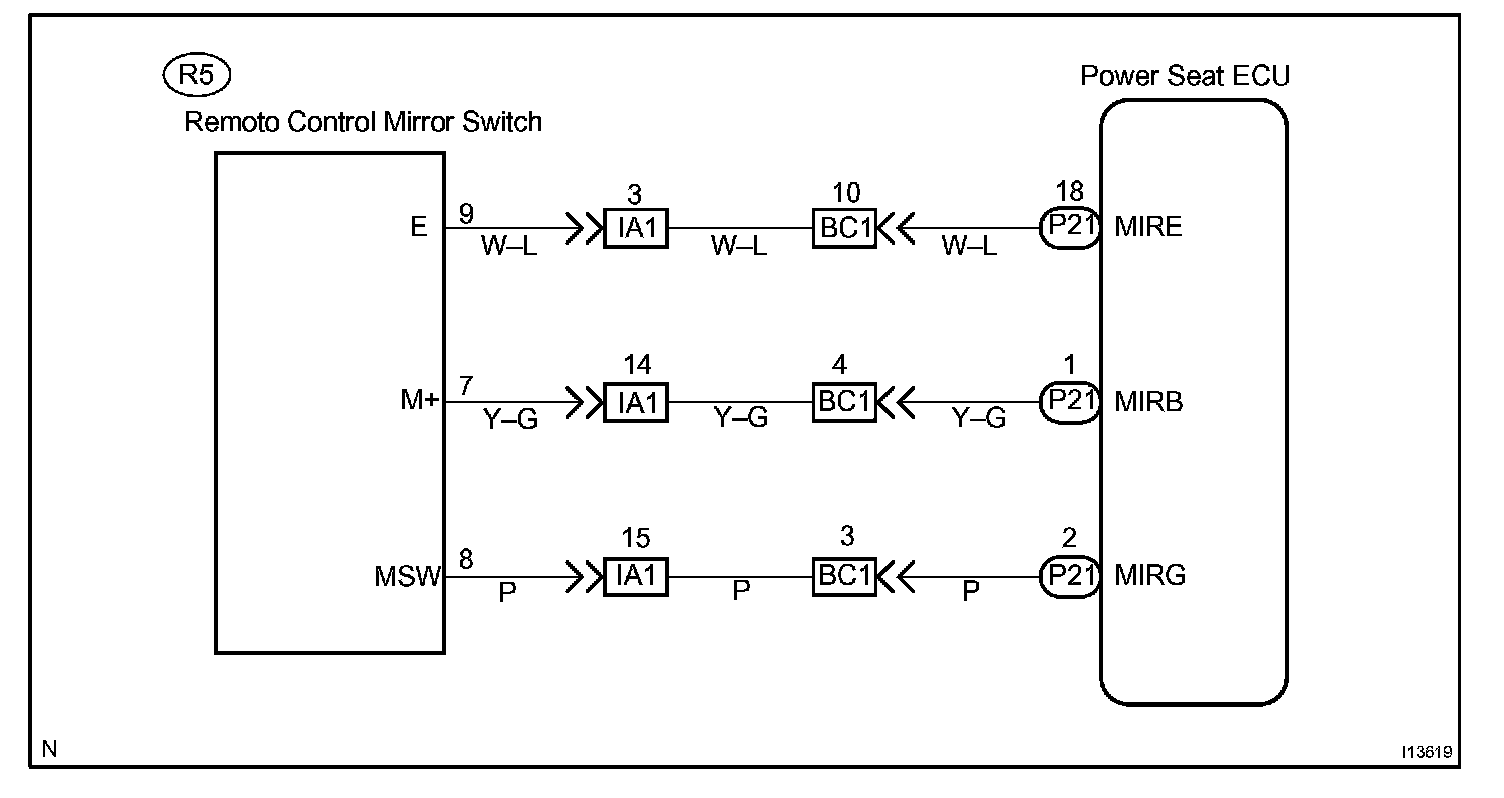

Wiring Diagram:

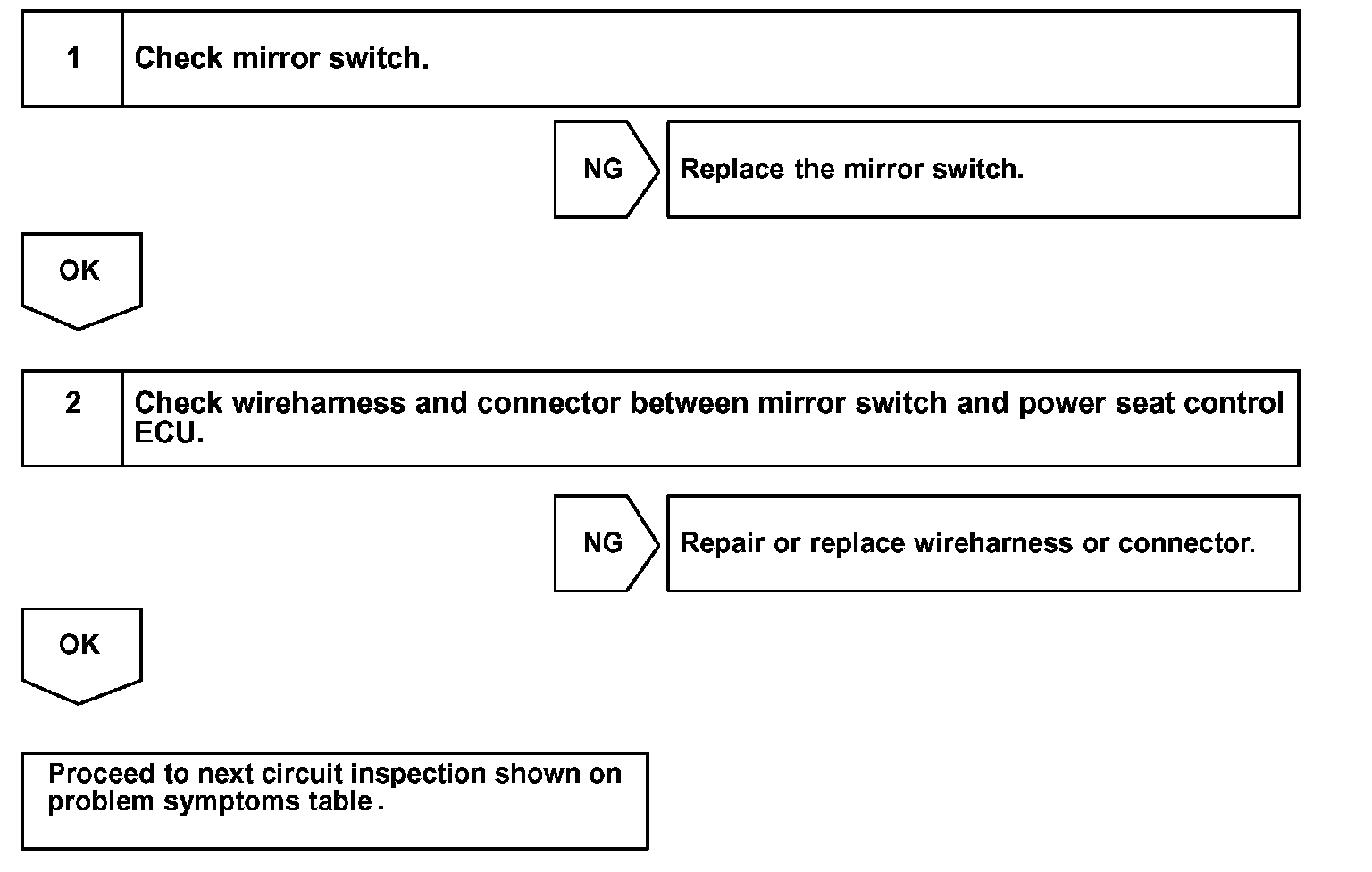

Step 1 - 2:
INSPECTION PROCEDURE
This circuit detects the conditions of the mirror selection switch and the mirror position switch.
INSPECTION PROCEDURE
