ABS Warning Light Circuit

ABS Warning Light Circuit

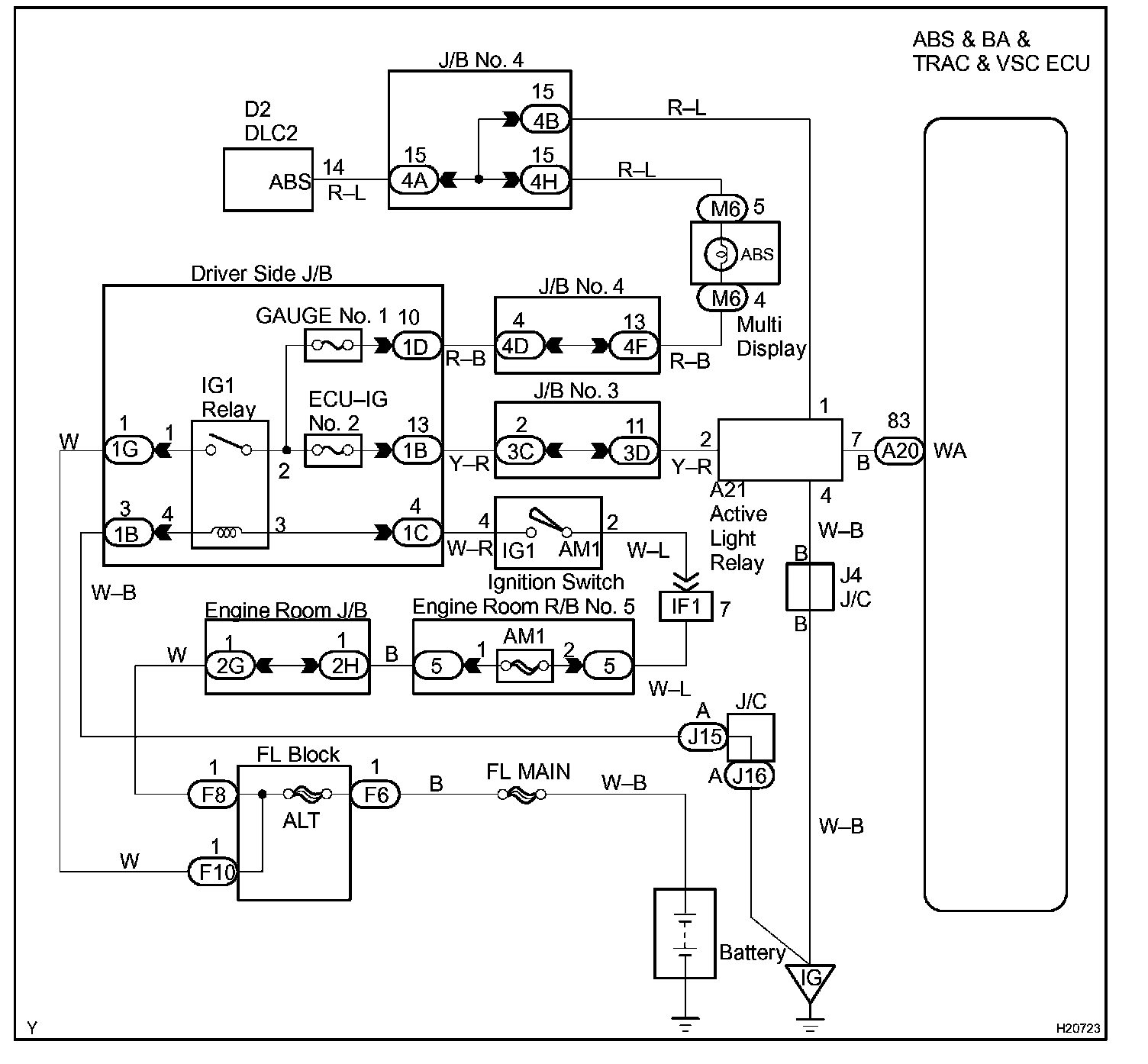

Wiring Diagram:

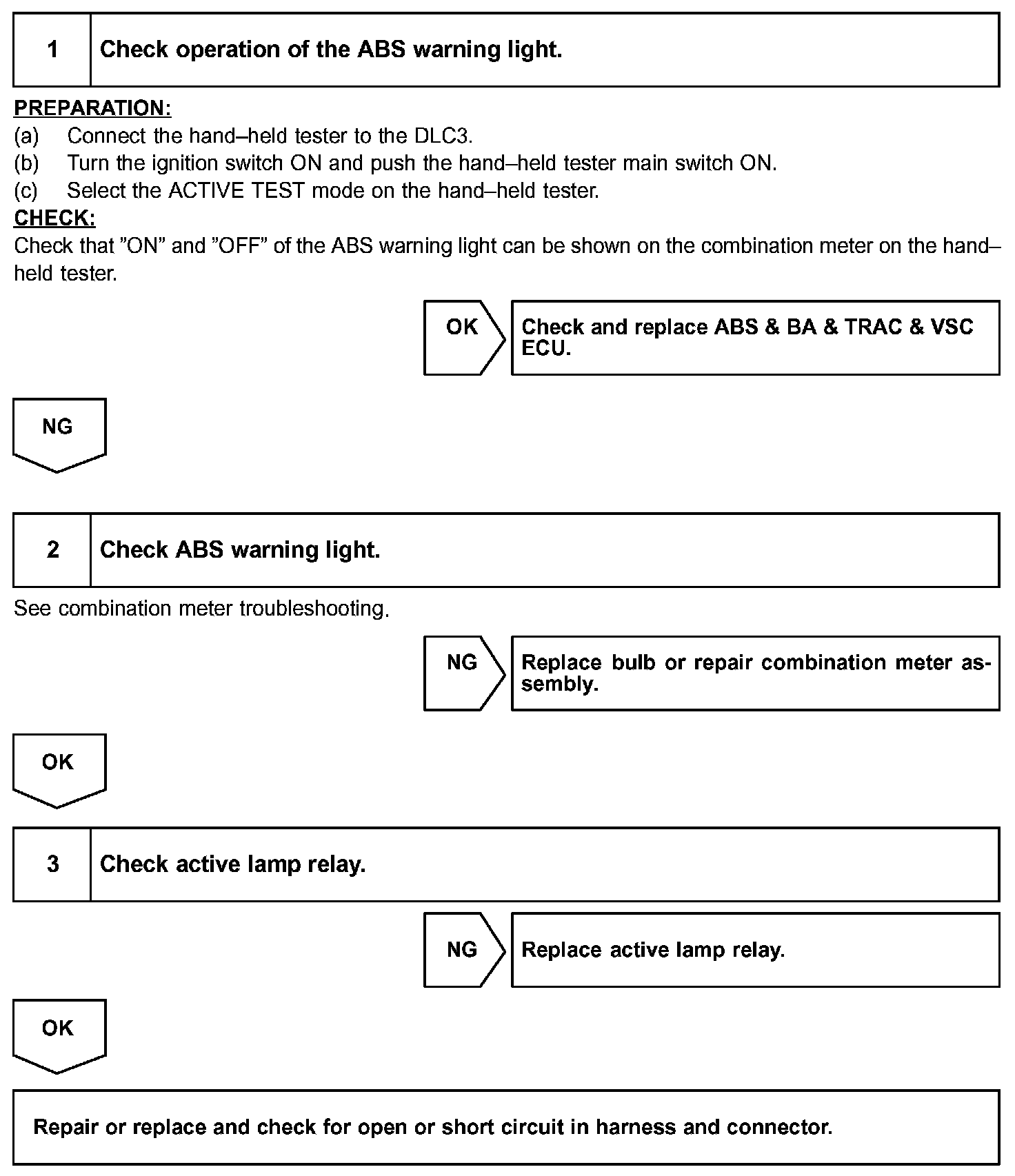

Step 1 - 3:




INSPECTION PROCEDURE

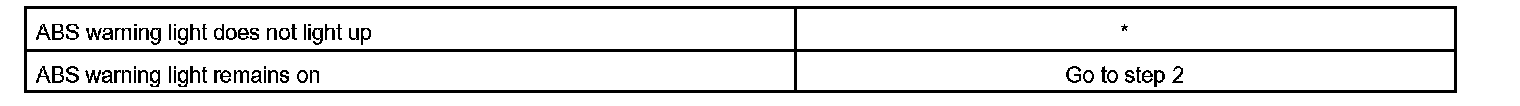

HINT: Troubleshoot in accordance with the chart for each trouble symptom.
