SLIP Indicator Light Circuit

CIRCUIT DESCRIPTION

The SLIP indicator light blinks during TRAC & VSC operation.

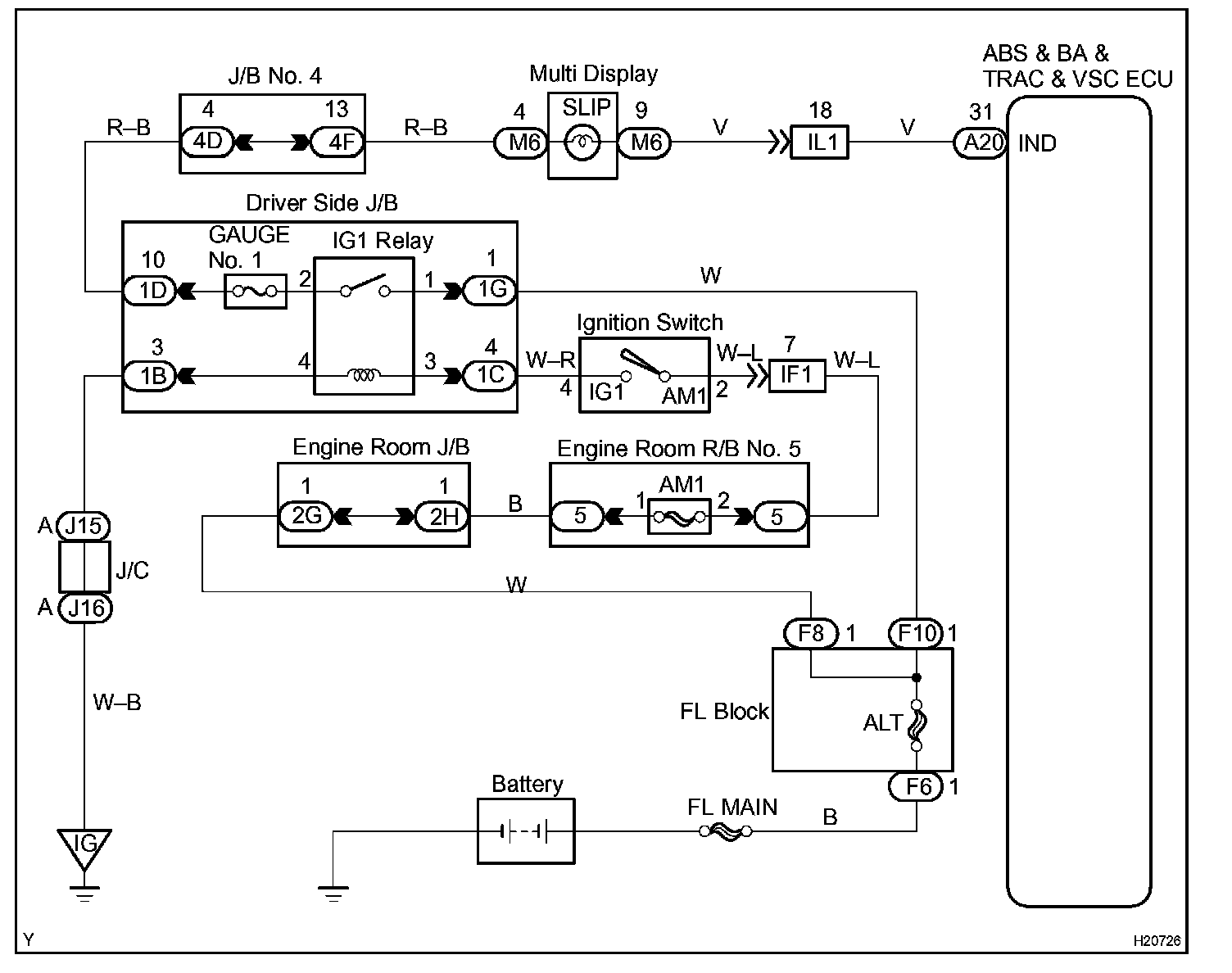

Wiring Diagram:

Step 1 - 3:

Step 4:

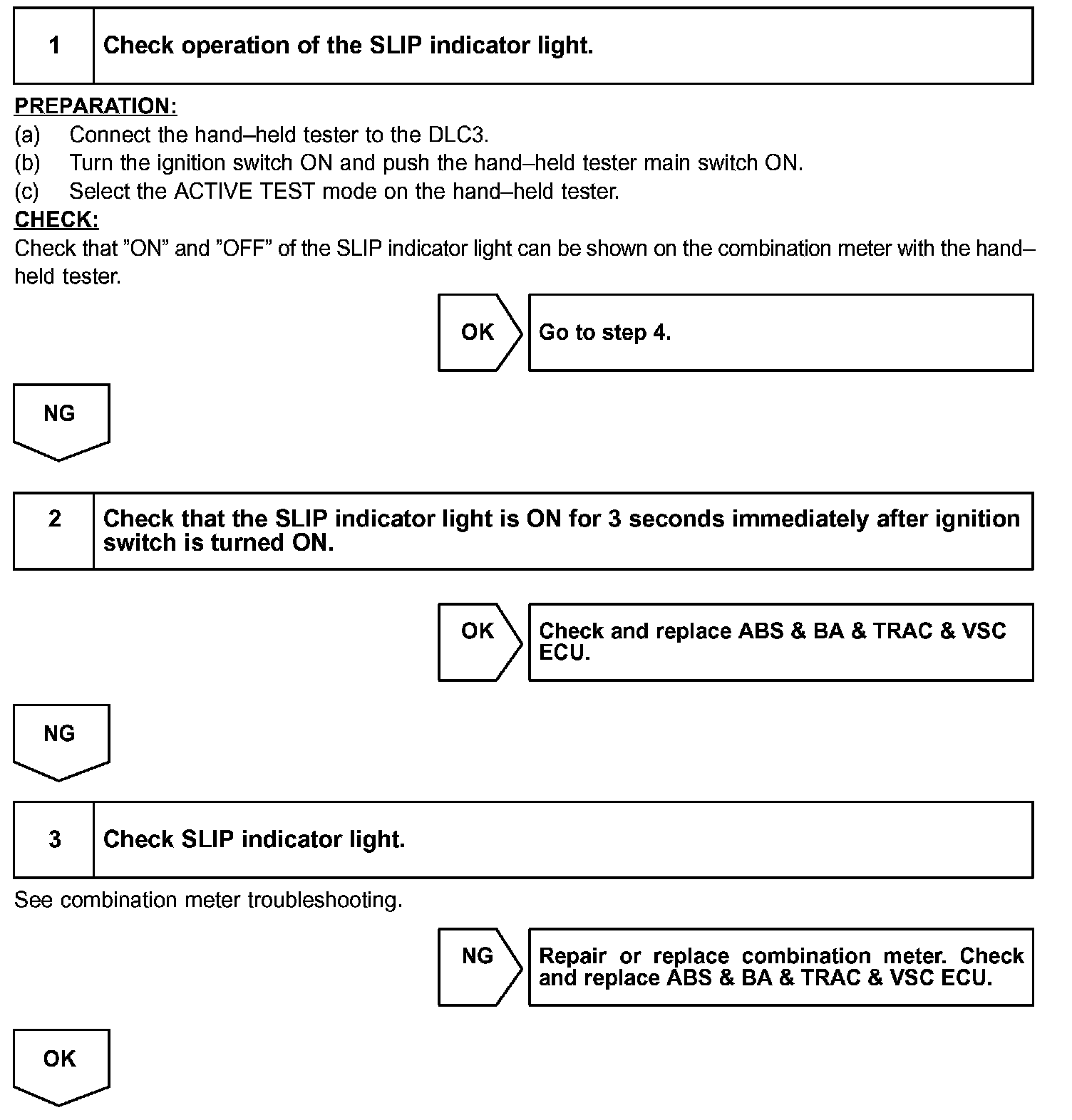

INSPECTION PROCEDURE

HINT: Start the inspection from step 1, in case of using the hand-held tester and start from step 2, in case of not using the hand-held tester.
