Ts Terminal Circuit

CIRCUIT DESCRIPTION

The sensor check circuit detects abnormality in the speed sensor signal which cannot be detected with the DTC check.

Connecting terminals Ts and CG of the DLC3 starts the check.

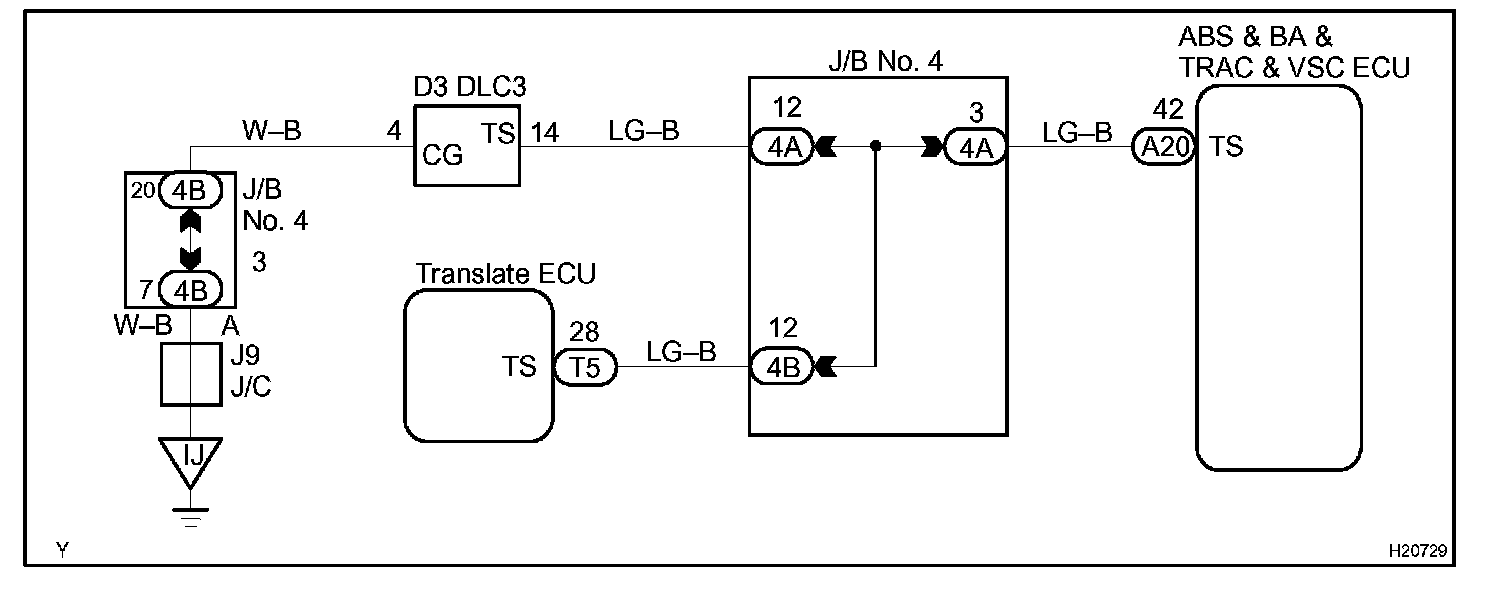

Wiring Diagram:

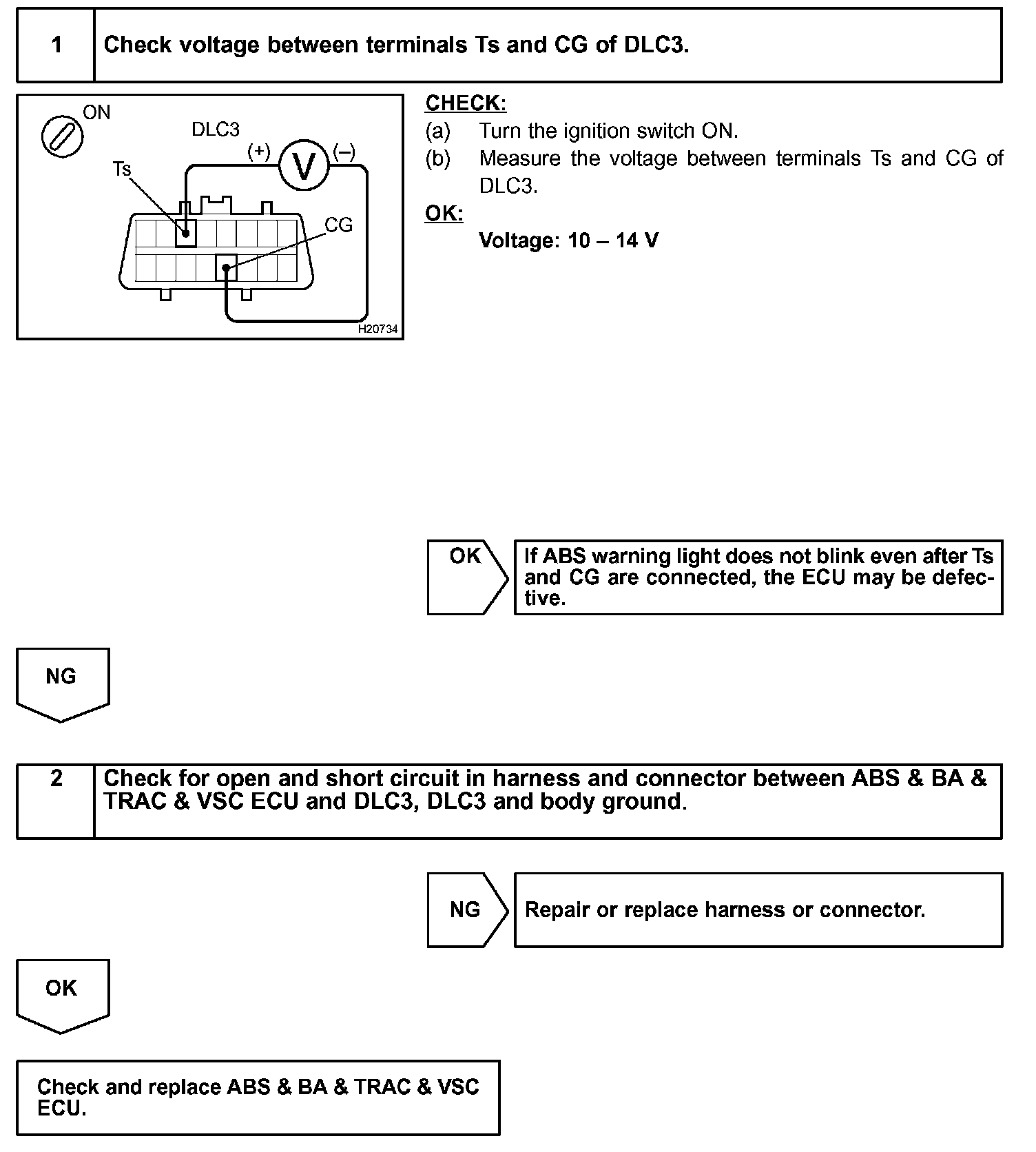

Step 1 - 2:

INSPECTION PROCEDURE
