VSC Off Indicator Light Circuit, VSC Off Switch Circuit

CIRCUIT DESCRIPTION

This is the TRAC & VSC control main switch. When the VSC OFF switch is pressed, TRAC & VSC control is deactivated and the VSC OFF indicator light lights up. By turning off the ignition switch, TRAC & VSC control is surely activated when the ignition switch turns ON next time. Also, the VSC OFF indicator light turns "ON" when the ECU prohibit TRAC & VSC controls.

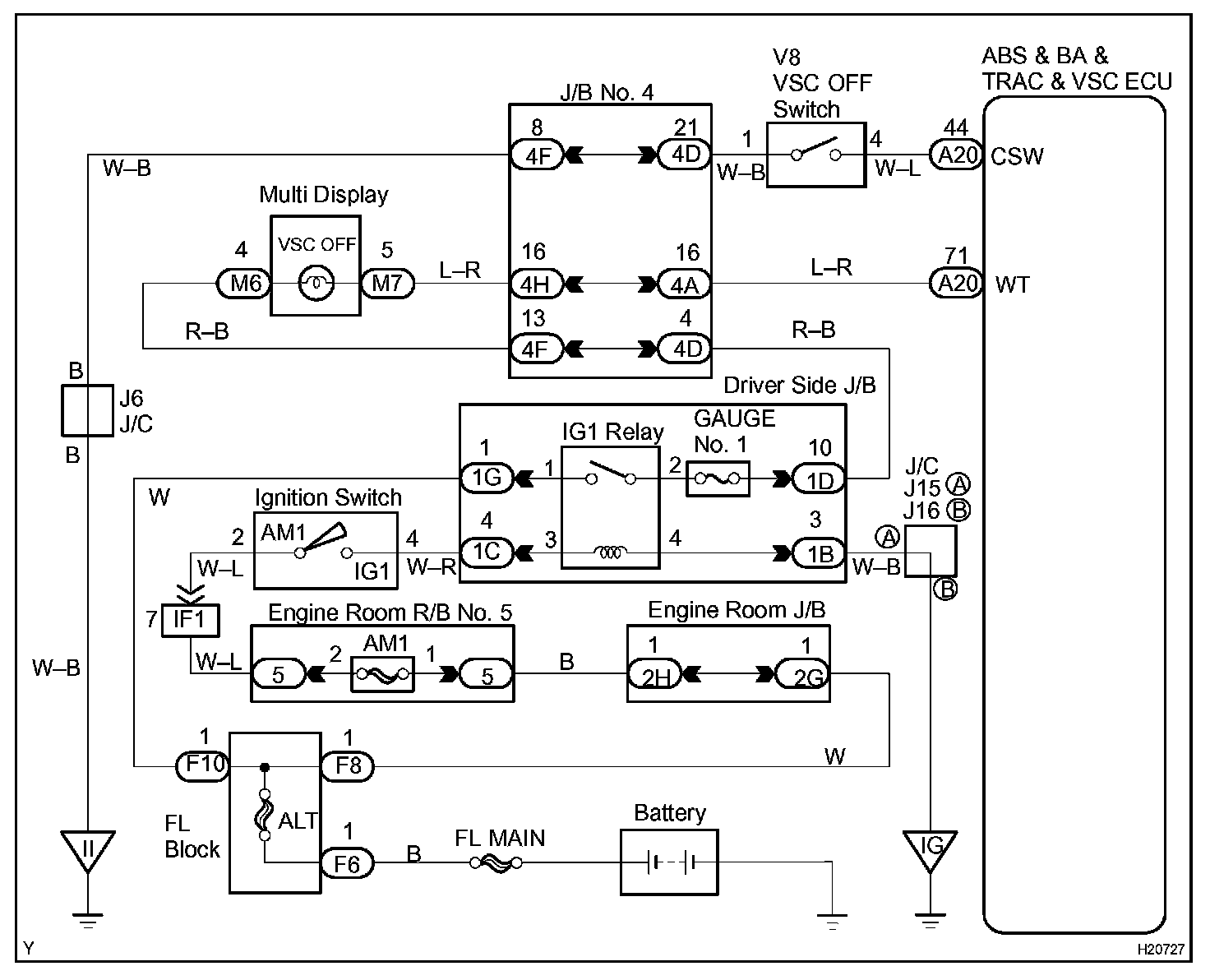

Wiring Diagram:

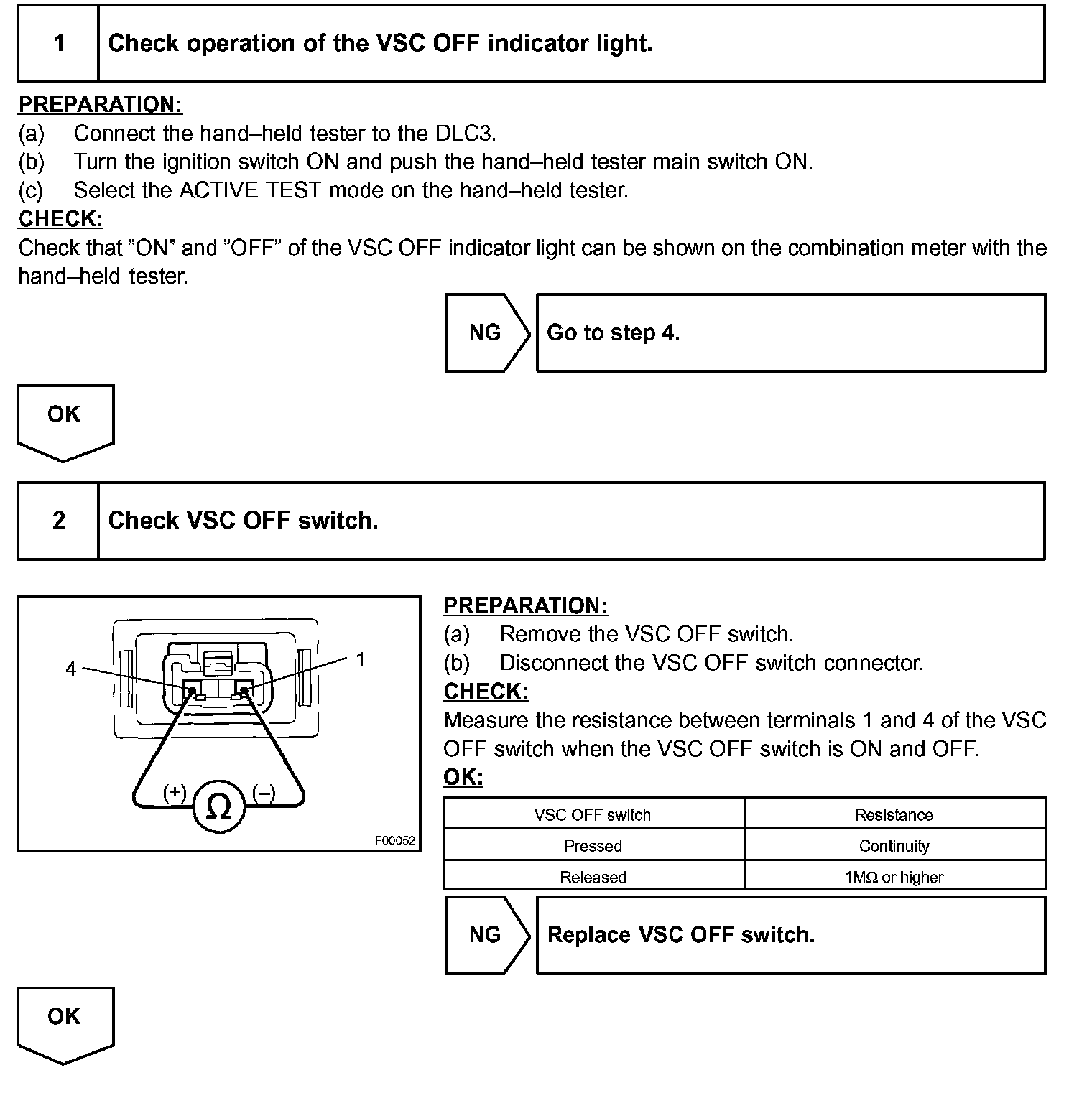

Step 1 - 2:

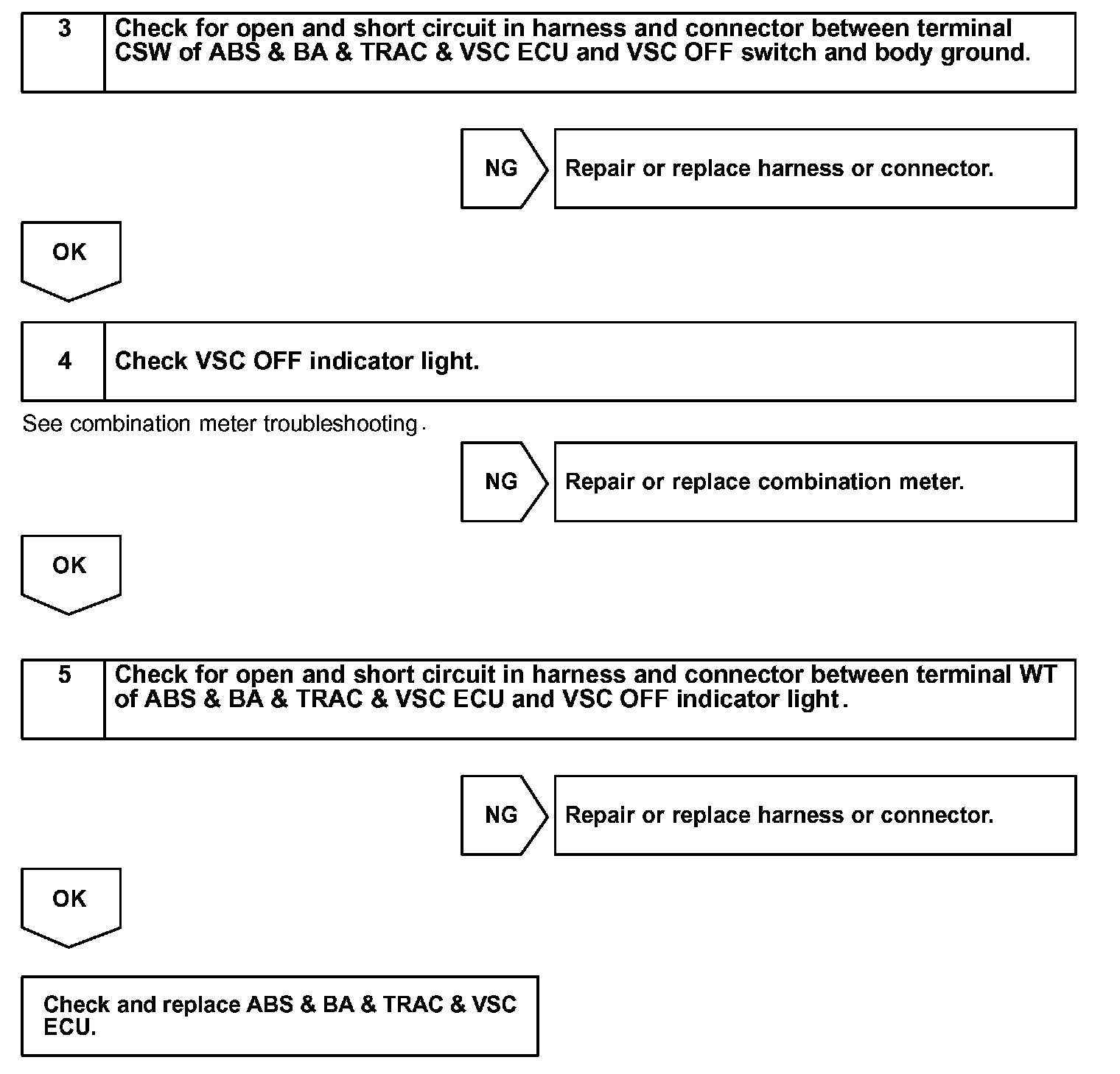

Step 3 - 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using the hand-held tester.
