ABS Warning Light Circuit

CIRCUIT DESCRIPTION

If the ECU detects trouble, the ABS warning light lights up and ABS control is prohibited at the same time. At this time, the ECU records a DTC in memory.

Connecting terminals Tc and CG of the DLC3 makes the ABS warning light blink and output the DTC.

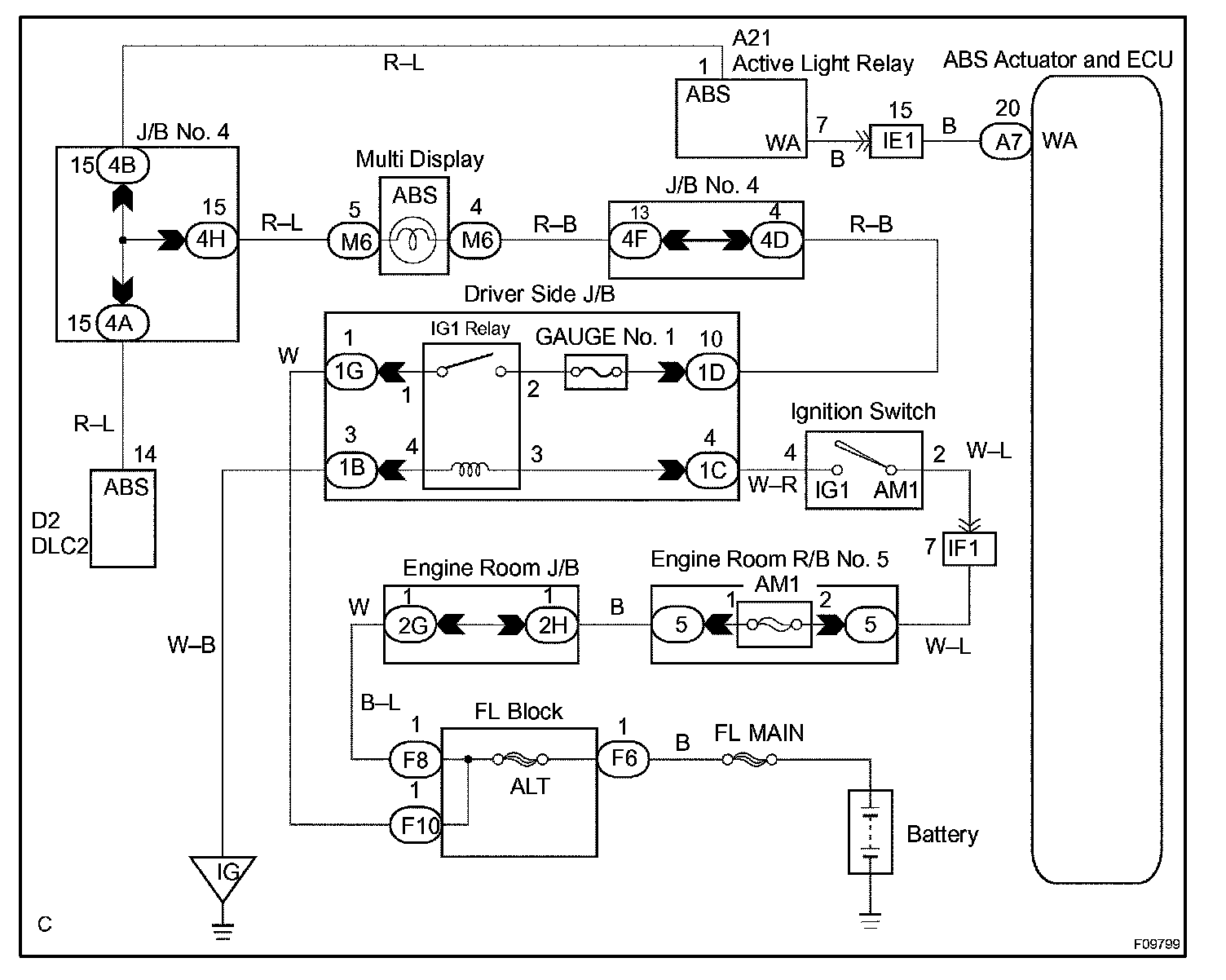

Wiring Diagram:

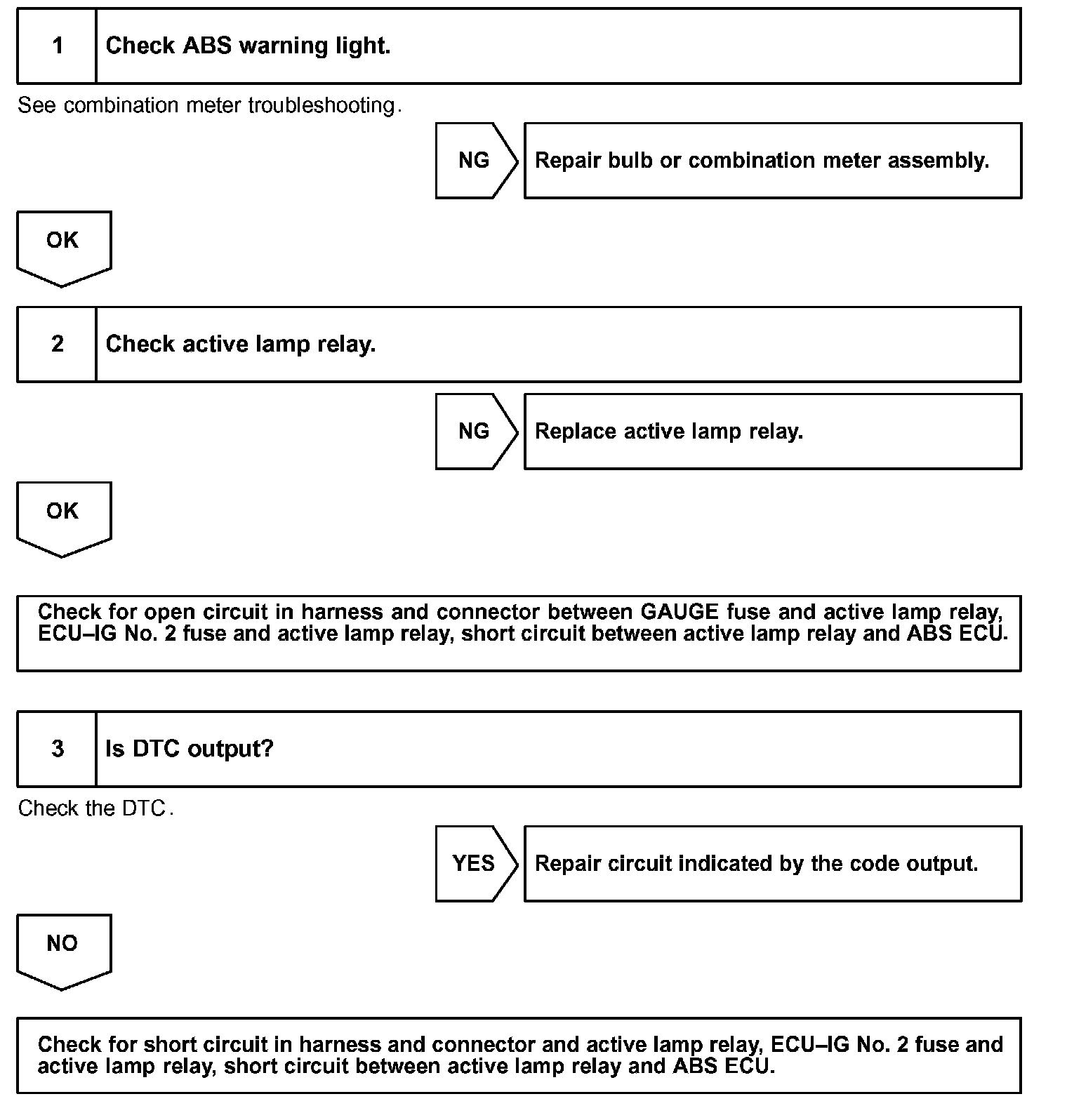

Step 1 - 3:

INSPECTION PROCEDURE

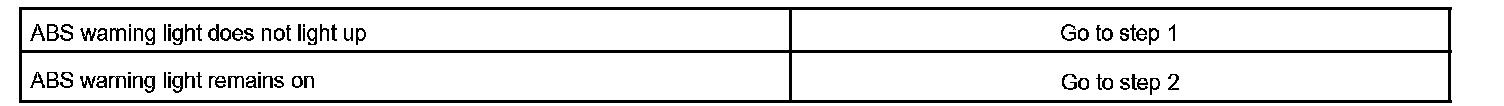

Troubleshooting in accordance with the chart for each trouble symptom.
