Brake Warning Light Circuit

CIRCUIT DESCRIPTION

The BRAKE warning light lights up when the brake fluid is insufficient, parking brake is applied or the EBD is defective.

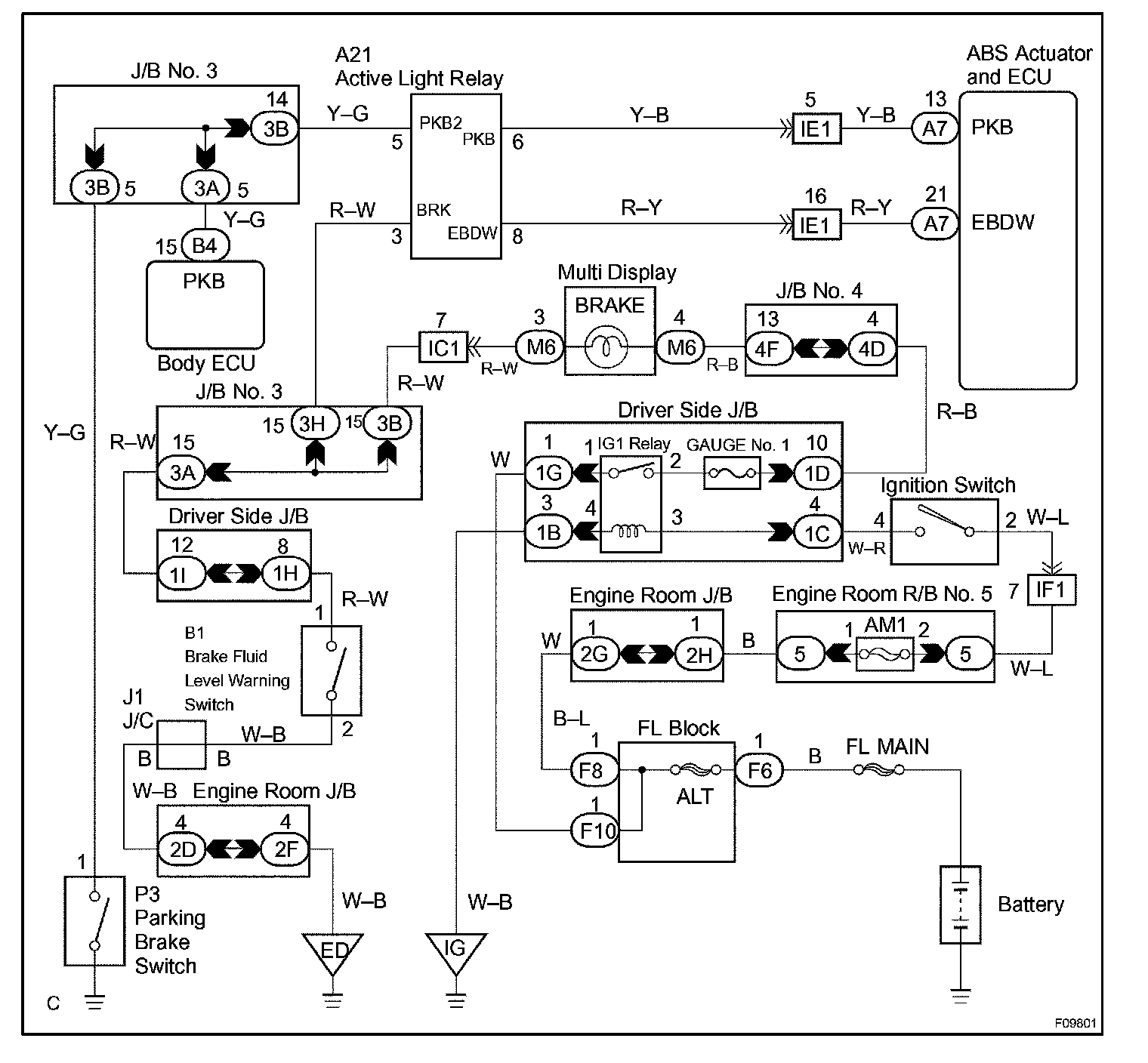

Wiring Diagram:

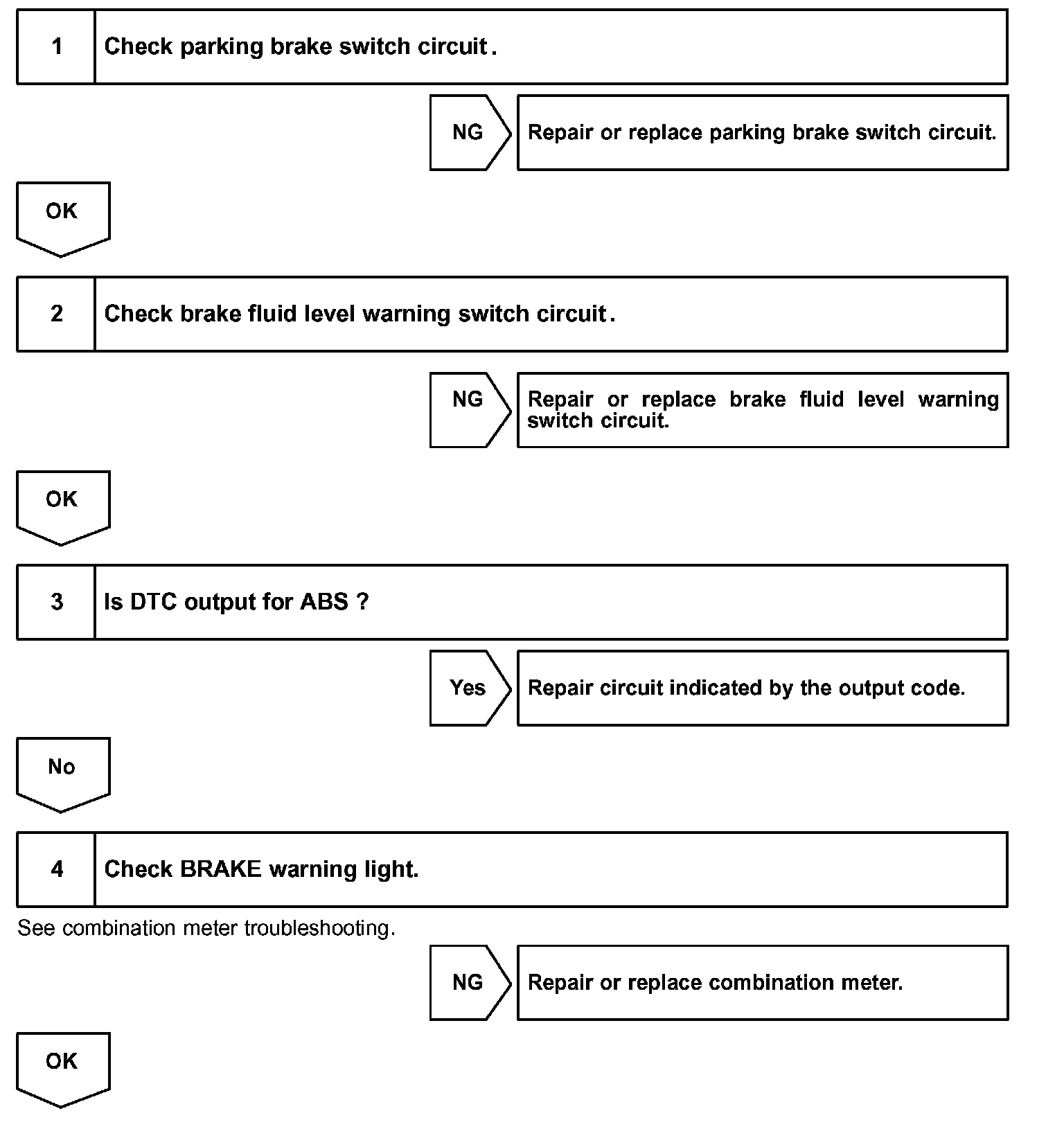

Step 1 - 4:

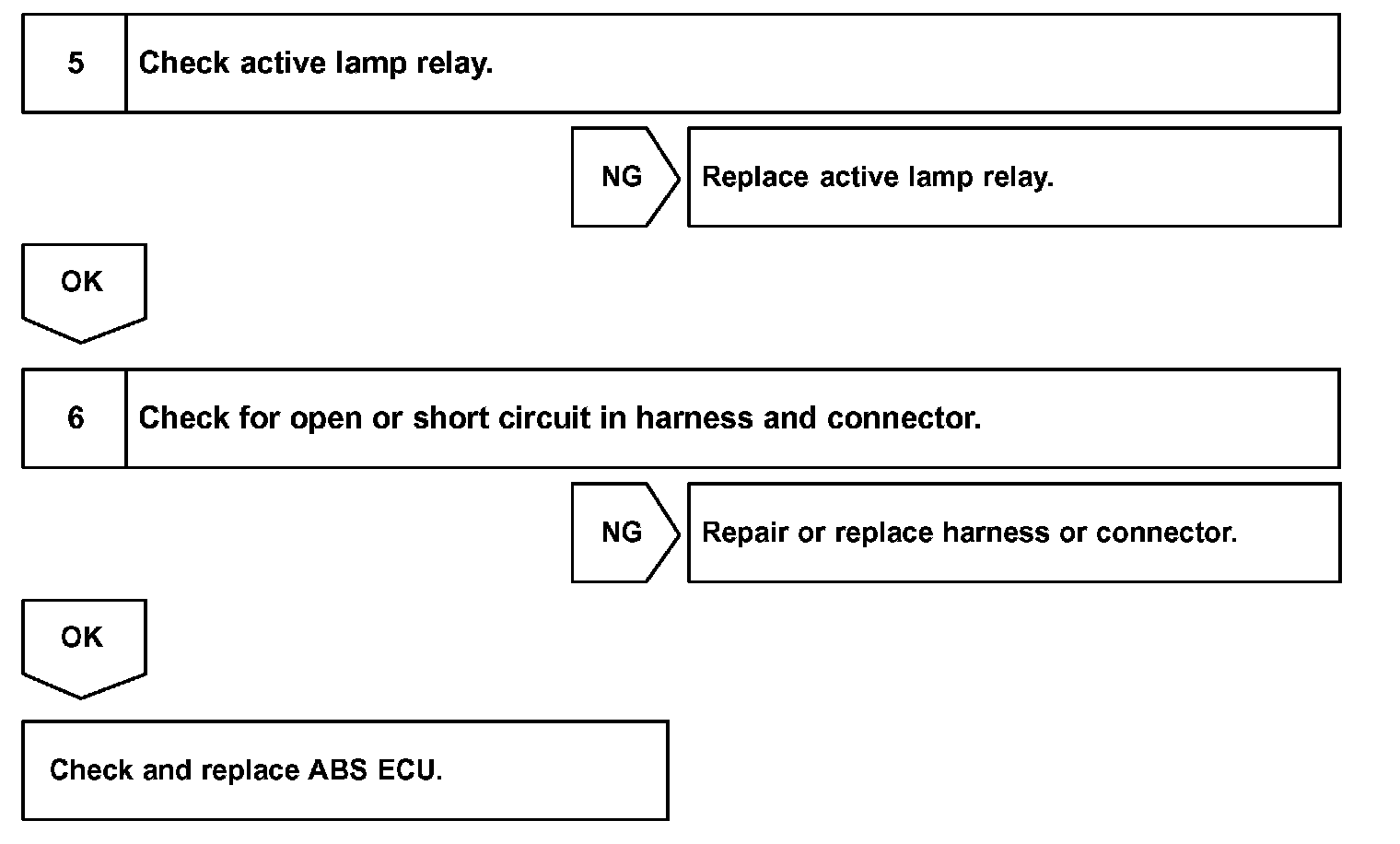

Step 5 - 6:

INSPECTION PROCEDURE
