Tc Terminal Circuit
CIRCUIT DESCRIPTIONConnecting between terminals Tc and CG of the DLC3 causes the ECU to display the DTC by flashing the ABS warning light.

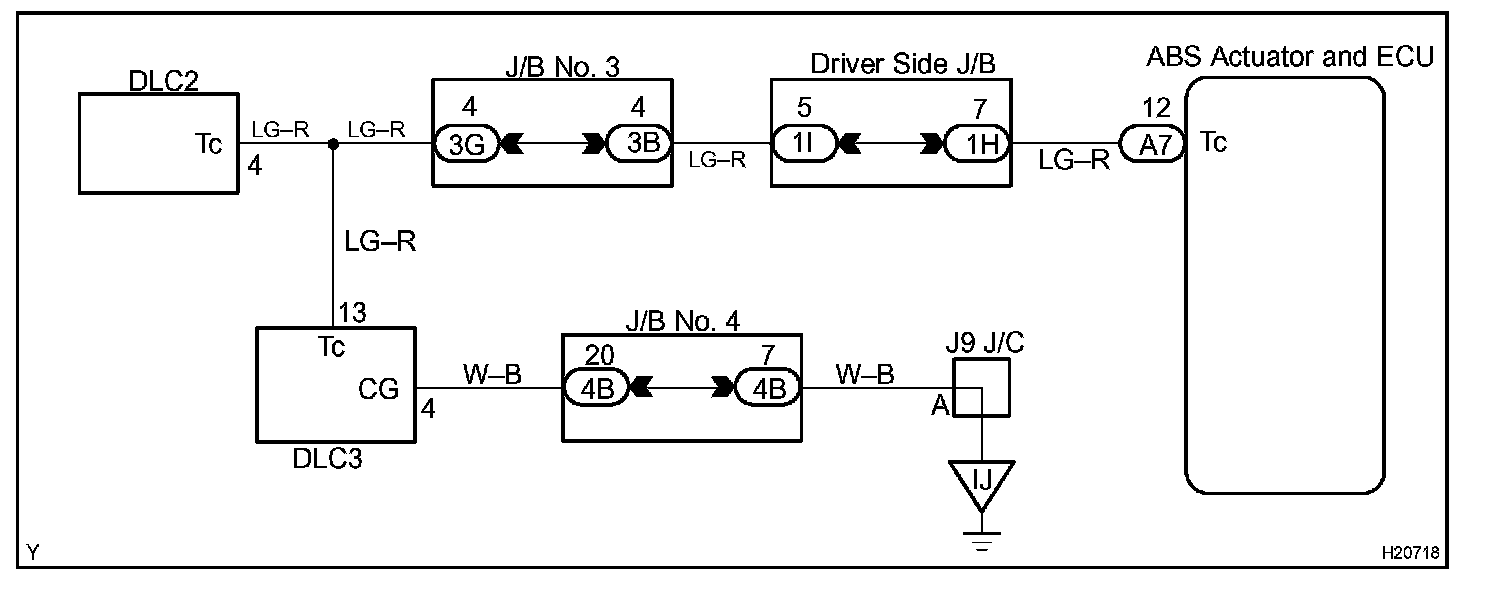

Wiring Diagram:

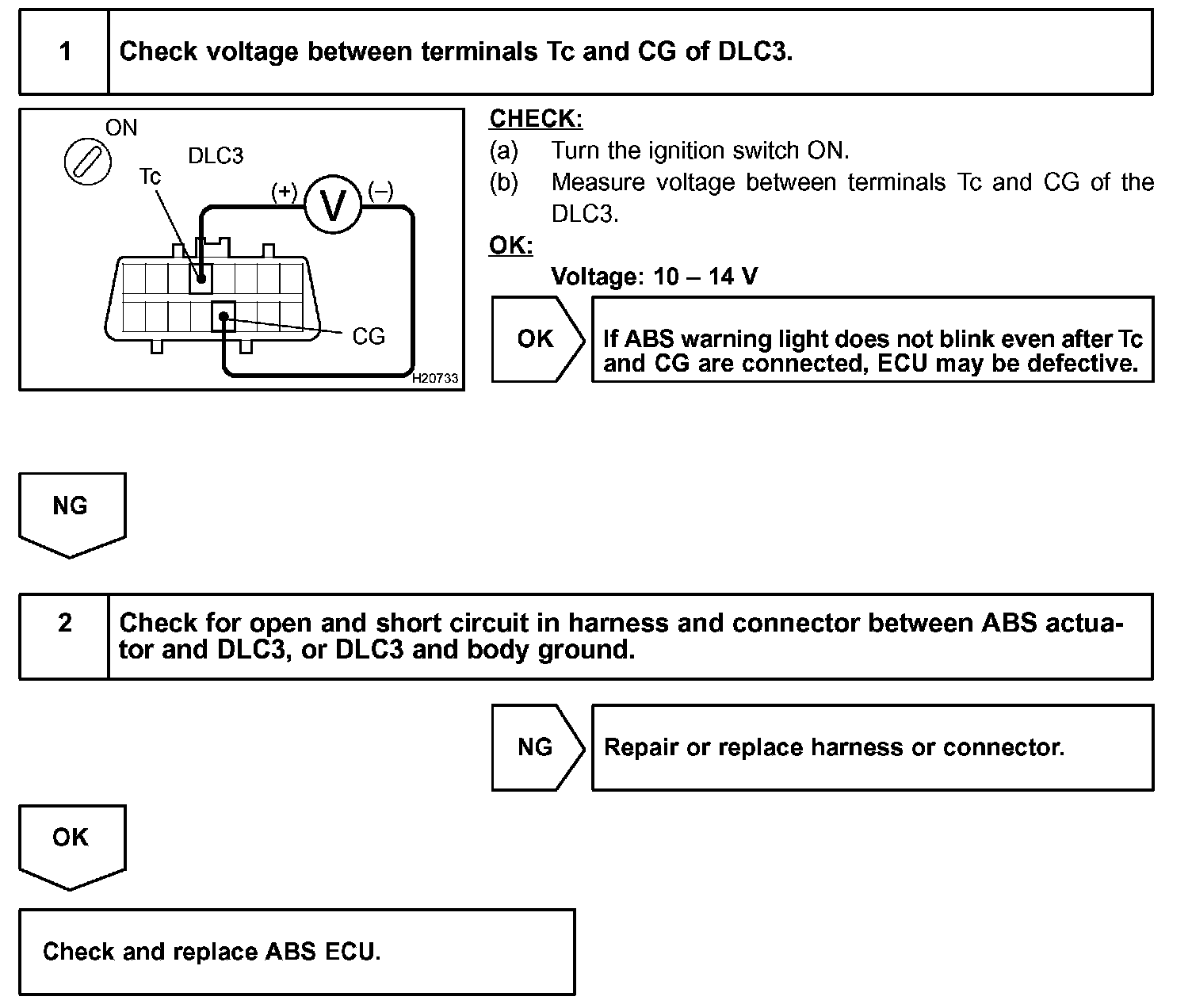

Step 1 - 2:
INSPECTION PROCEDURE
Connecting between terminals Tc and CG of the DLC3 causes the ECU to display the DTC by flashing the ABS warning light.
INSPECTION PROCEDURE
