Always ON - Malfunction in ECU VSC Warning Light Circuit

DTC Always ON Malfunction in ECU VSC Warning Light Circuit

CIRCUIT DESCRIPTION

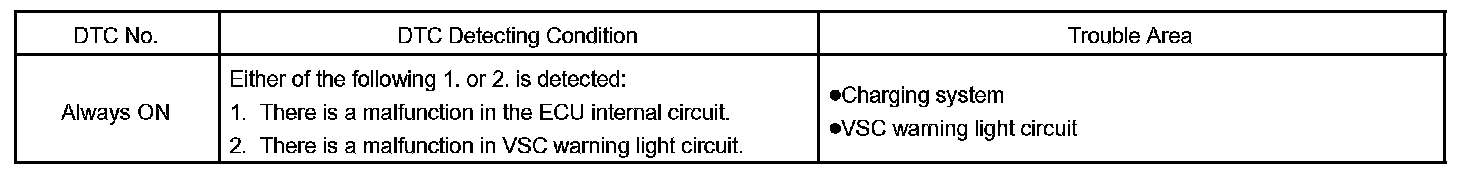

DTC Detecting Condition:

HINT: Hand-held tester may not be able to be used when ECU is defective.

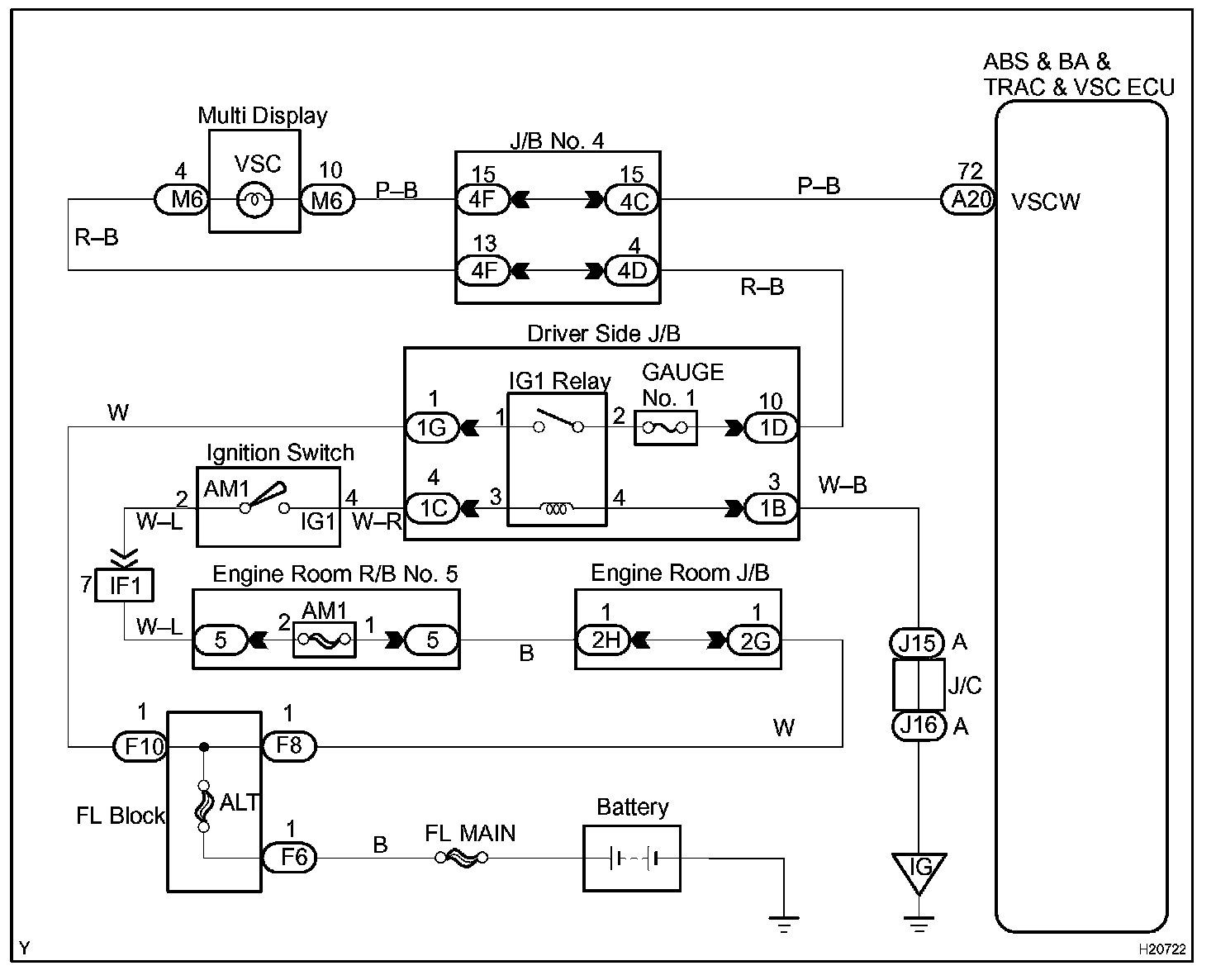

Wiring Diagram:

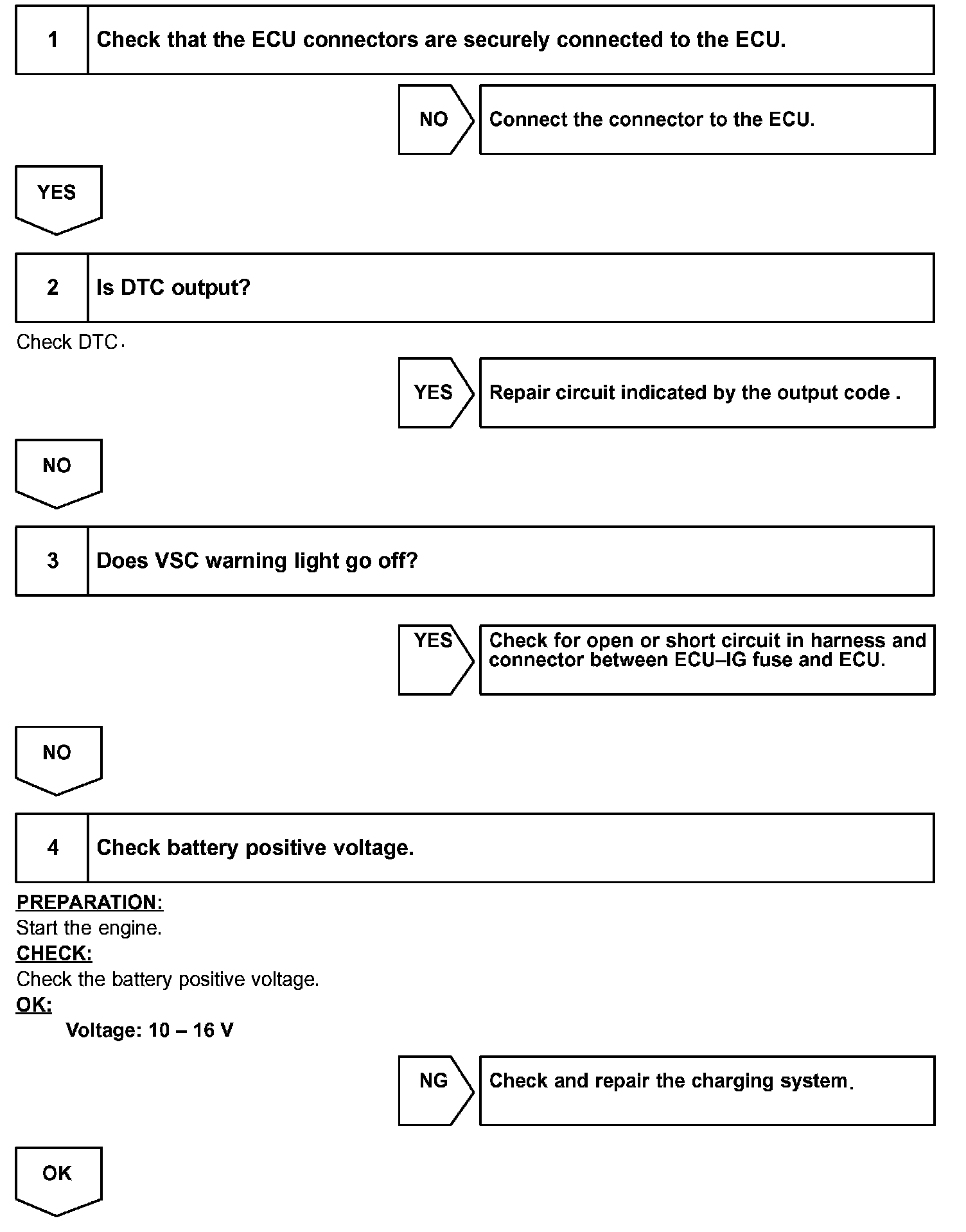

Step 1 - 4:

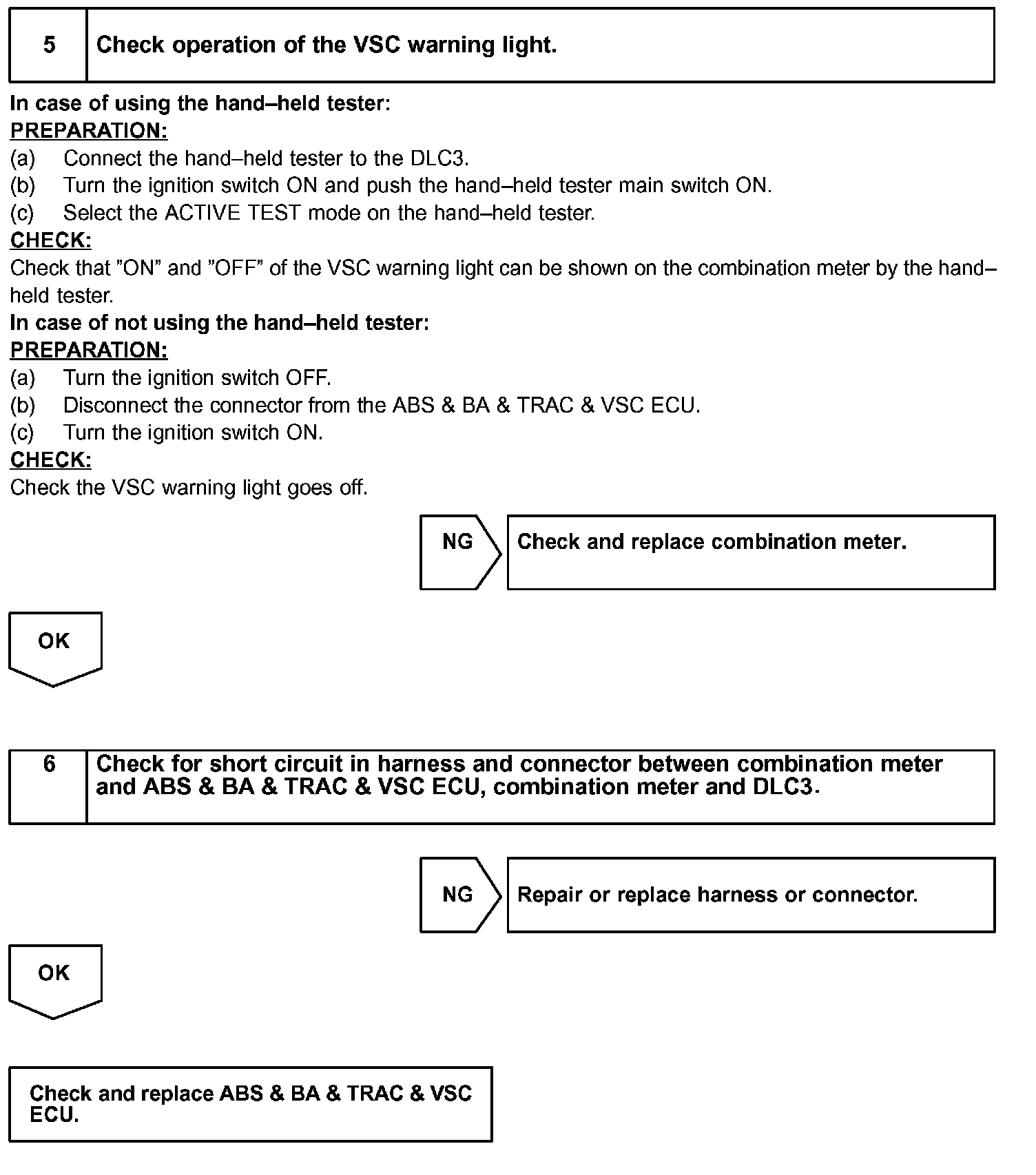

Step 5 - 6:

INSPECTION PROCEDURE
