Disassembly and Assembly

Part 1 Of 2:

Part 2 Of 2:

DISASSEMBLY
1. DISCONNECT CONNECTOR





2. REMOVE ECU

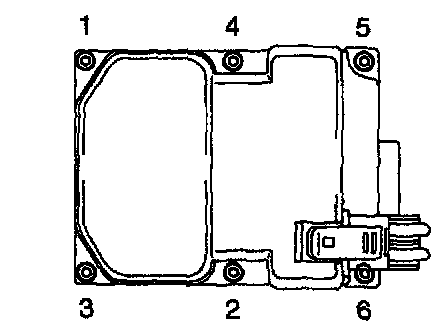

a. Using a T20 torx wrench, loosen the 6 screws.
Torque: 3.0 Nm (31 kgf-cm, 27 inch lbs.)

NOTICE: At the time of reassembly, tighten the screws according to the order shown on the left.

b. Remove the ECU and spring plate from the actuator.

NOTICE: Protect the actuator in order to prevent sealing surface from getting dirty and causing damage on the valve body. If the dirt and the like are stuck to the sealing surface, use plastic tools or soft objects to remove the dirt. Do not use chemical solvents.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
