REMOVAL
1. REMOVE AIR CLEANER ASSEMBLY





2. DISCONNECT CONNECTOR

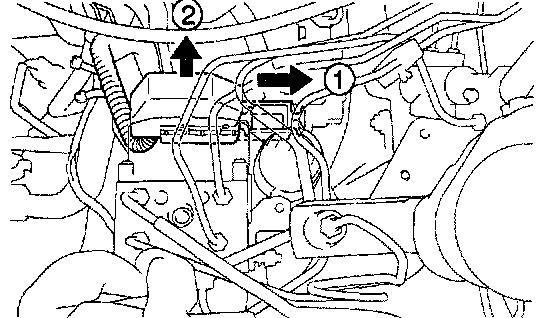

Pull out the release bar, and disconnect the connector.





3. DISCONNECT BRAKE LINES

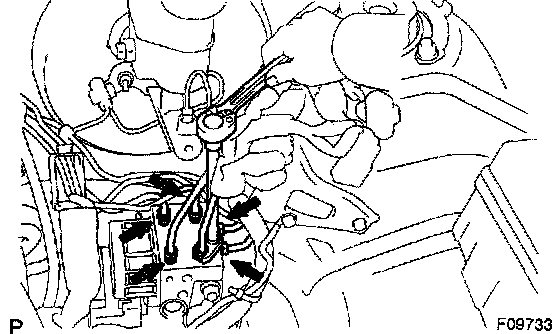

Using SST, disconnect the 6 brake lines from the ABS actuator.
SST 09023-00100
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)





4. REMOVE ABS ACTUATOR ASSEMBLY

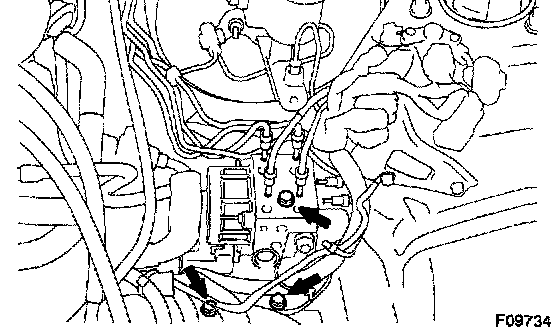

Remove the 3 bolts and ABS actuator assembly.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)
5. REMOVE ABS ACTUATOR
a. Remove the 2 nuts and ABS actuator.
Torque: 13 Nm (130 kgf-cm, 9 ft. lbs.)
b. Remove the 2 holders and 3 cushions from the ABS actuator.

INSTALLATION
Installation is in the reverse order of removal.

HINT:
^ After installation, fill the brake reservoir with brake fluid, bleed brake system.
^ Check for fluid leaks.
