Parking Brake Pedal: Service and Repair

REMOVAL
1. REMOVE LOWER NO. 1 INSTRUMENT PANEL, LOWER LH PANEL INSERT AND NO. 2 HEATER TO REGISTER DUCT
2. RELEASE PARKING BRAKE PEDAL
3. REMOVE PARKING BRAKE PEDAL ASSEMBLY

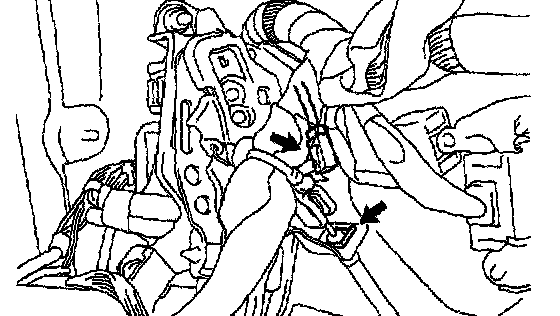

a. Disconnect the parking brake switch connector.
b. Remove the clip, and disconnect the parking brake cable.

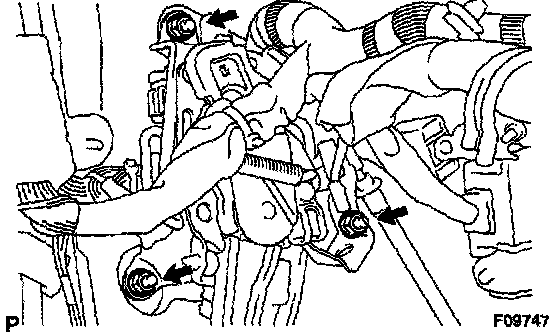

c. Remove the 3 nuts and parking brake pedal assembly.
Torque: 61 Nm (620 kgf-cm, 45 ft lbs.
d. Remove the parking brake switch and cushion from the parking brake pedal assembly.

INSTALLATION
Installation is in the reverse order of removal.
AFTER INSTALLATION, ADJUST PARKING BRAKE PEDAL TRAVEL
