Cancel Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION

When the cruise control cancel switch is turned ON, the cruise control does not operate.

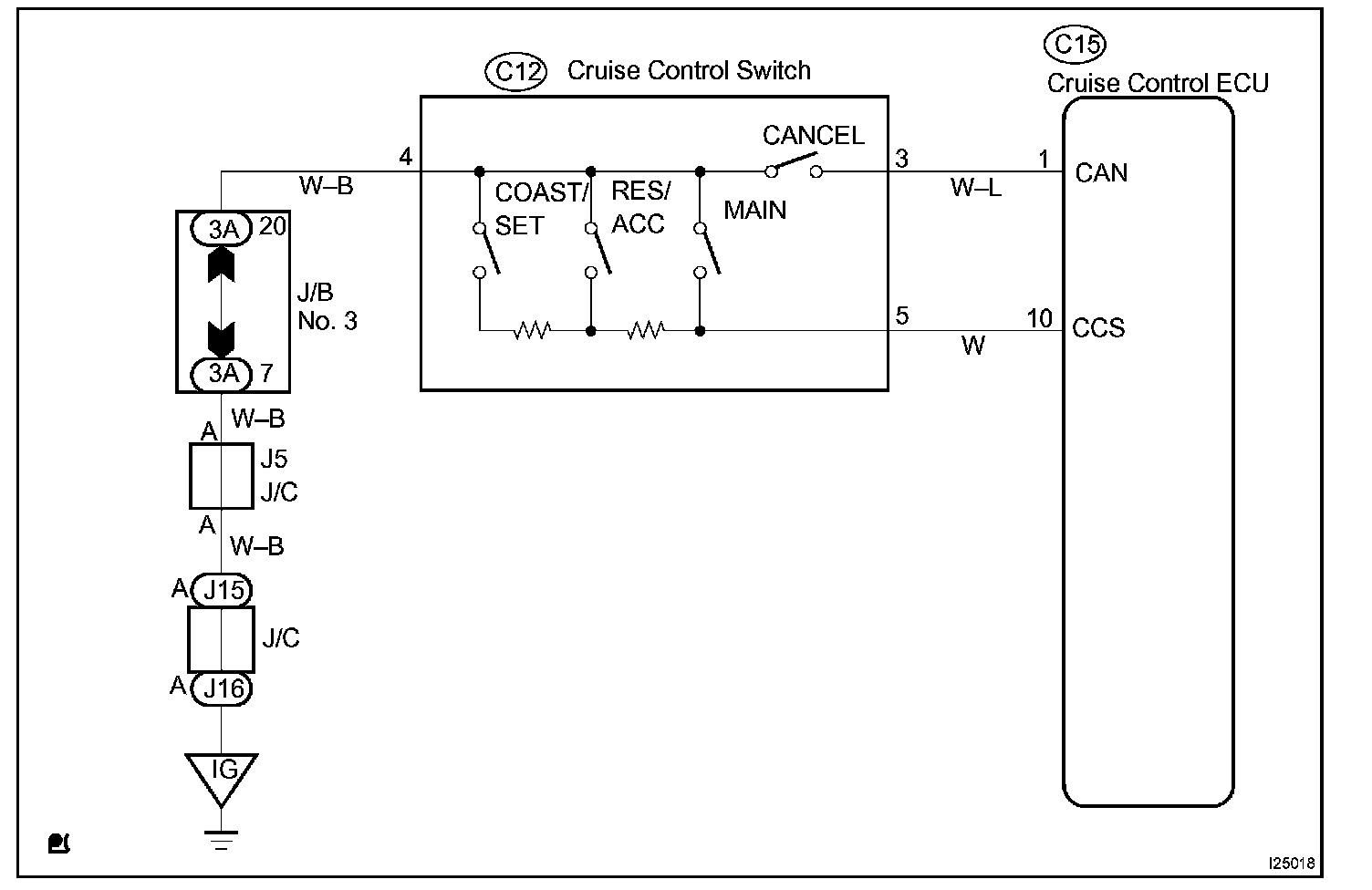

Wiring Diagram:

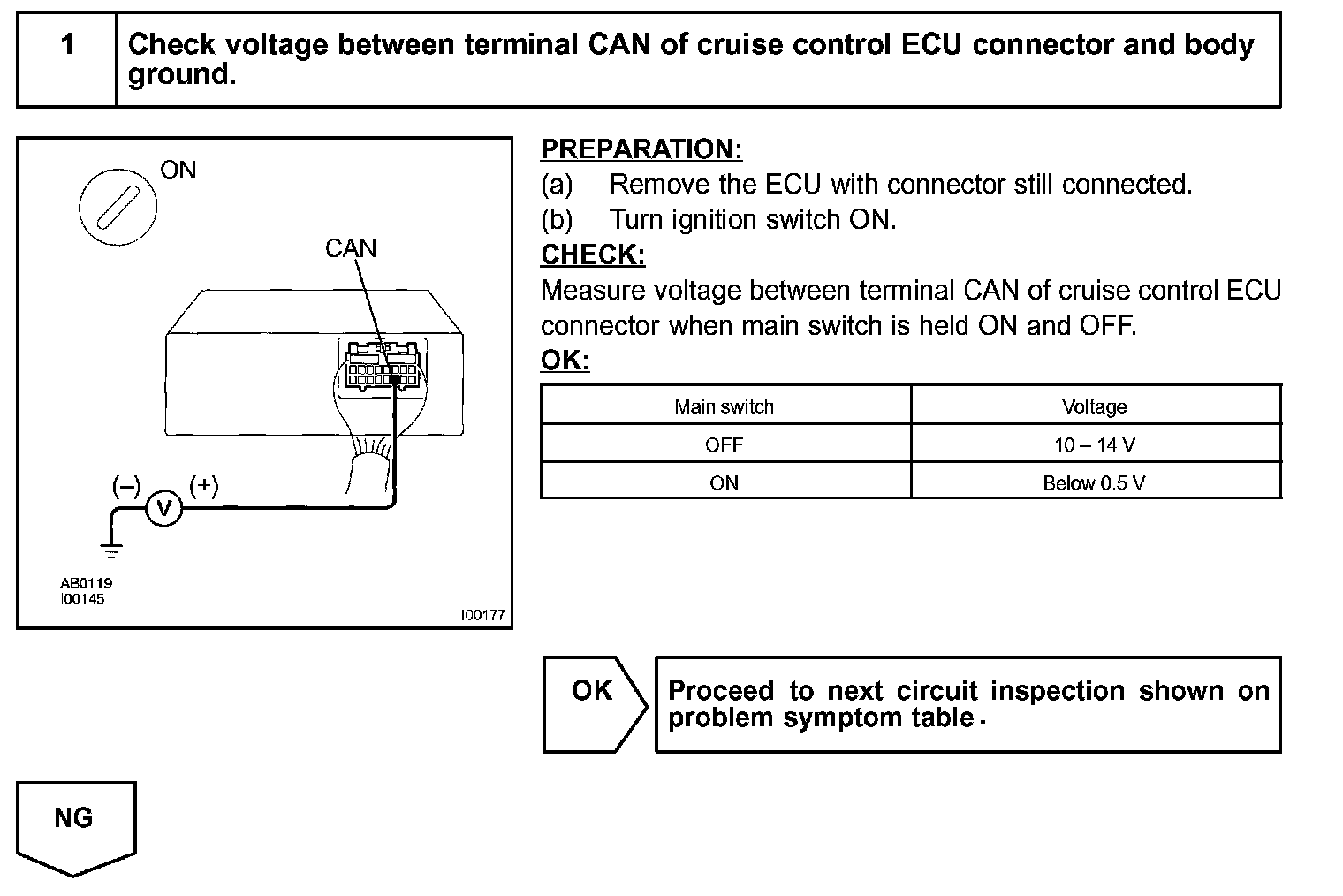

Step 1:

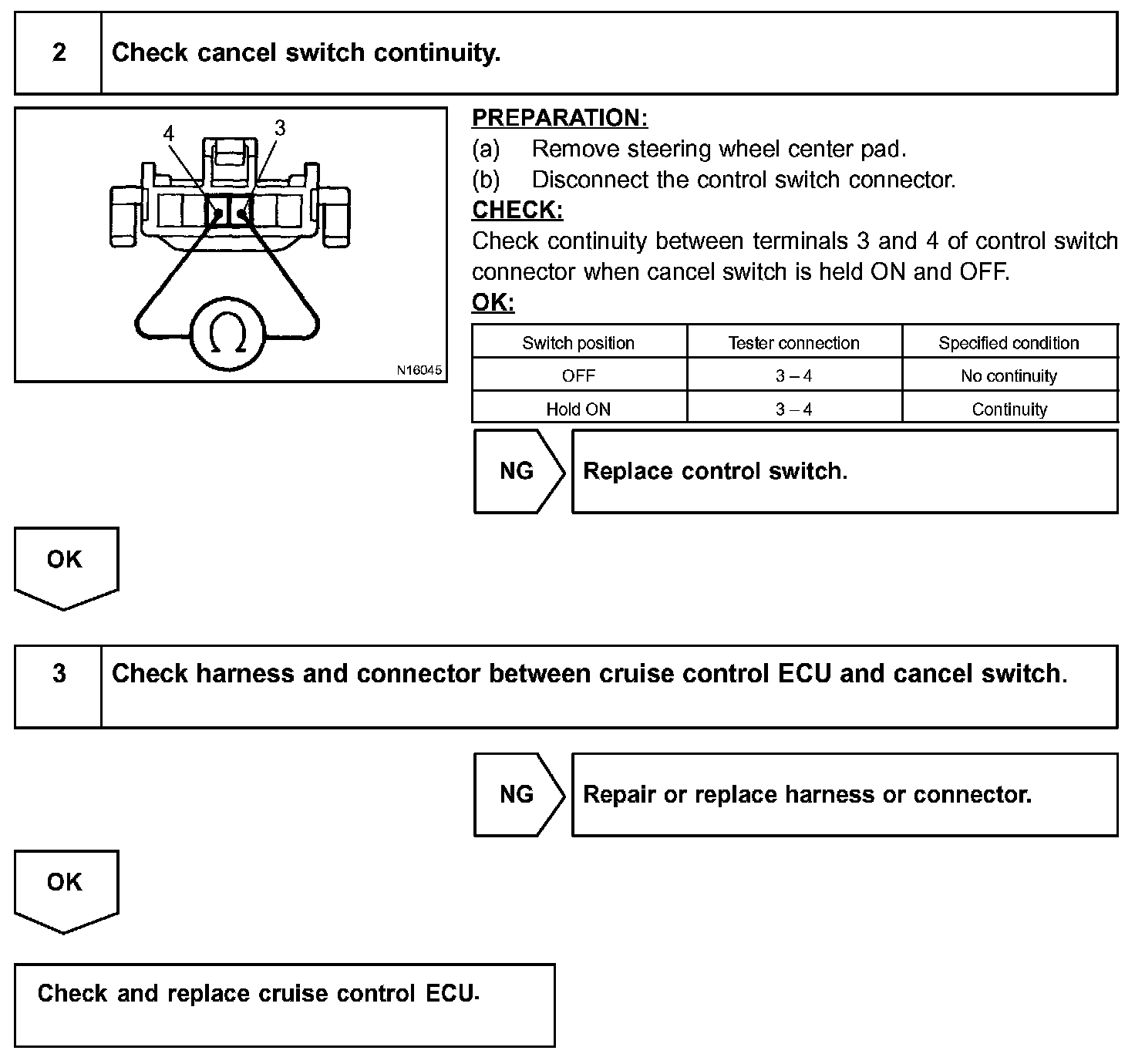

Step 2 - 3:

INSPECTION PROCEDURE
