Without Scan Tool

DTC CLEARANCE (ERASE MODE)

HINT: During in the erase mode, diag. detection does not work.




a. Drive at about 15 km/h or below.

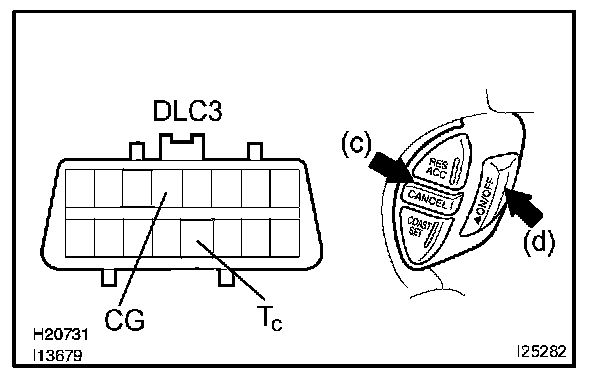

b. Using SST, connect terminals Tc and E1 of DLC3.
SST 09843-18020

c. Push the cruise control switch to CANCEL.
d. On the above mentioned condition, turn on the cruise control main switch 5 times within 3 seconds.
