Avalon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>

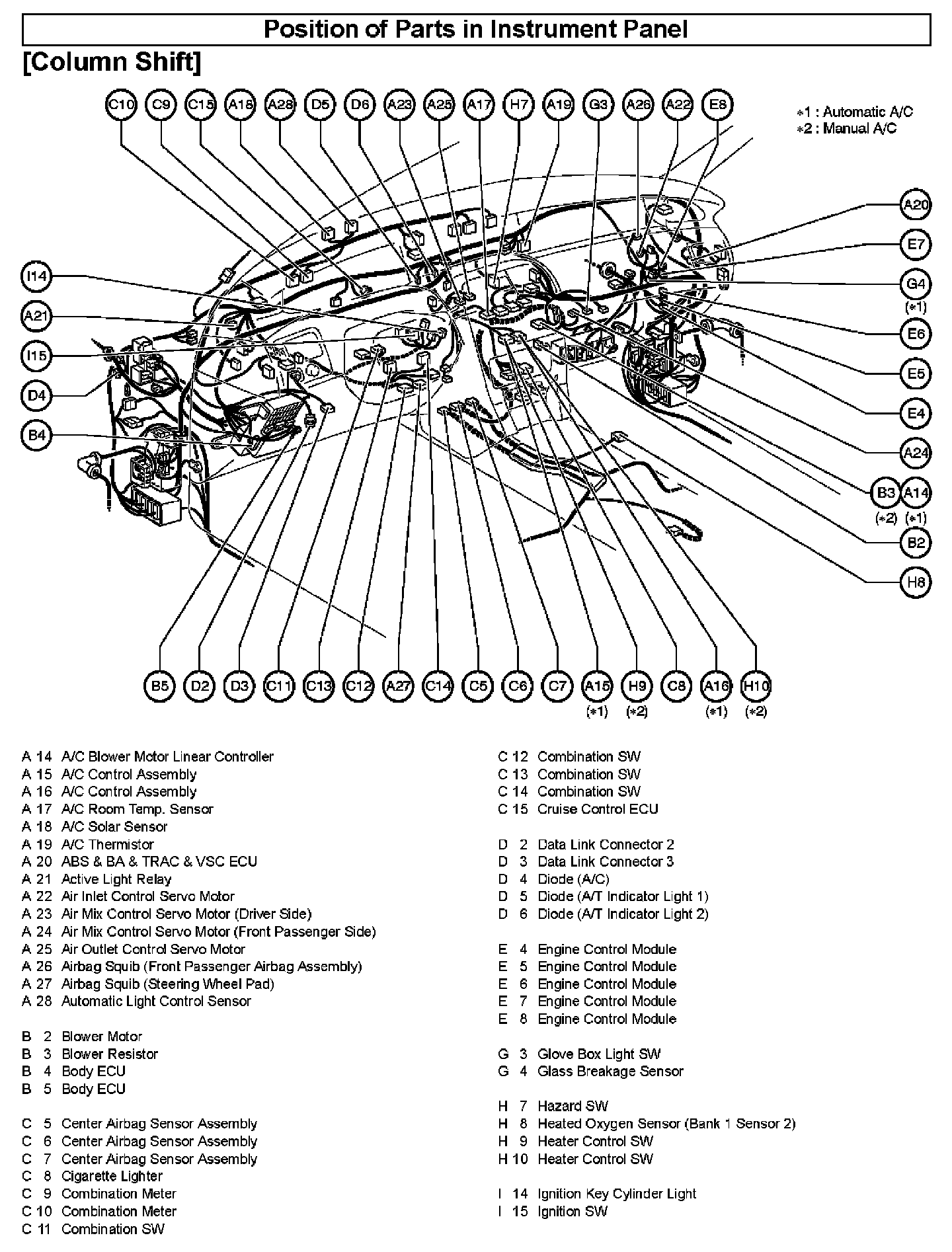

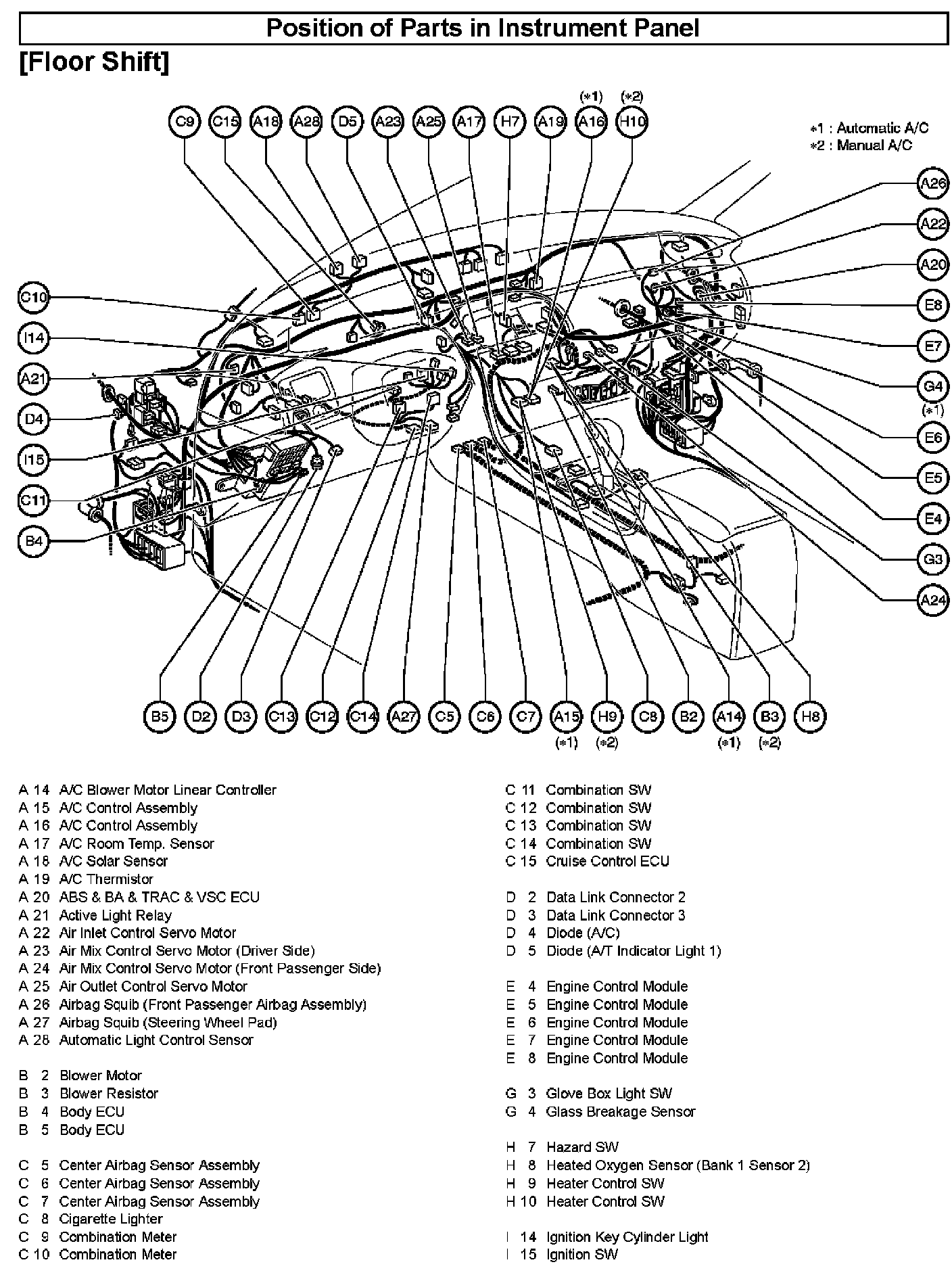

Position of Parts In Instrument Panel
Position of Parts In Instrument Panel
A/C - Ig:
A/C - Ig:

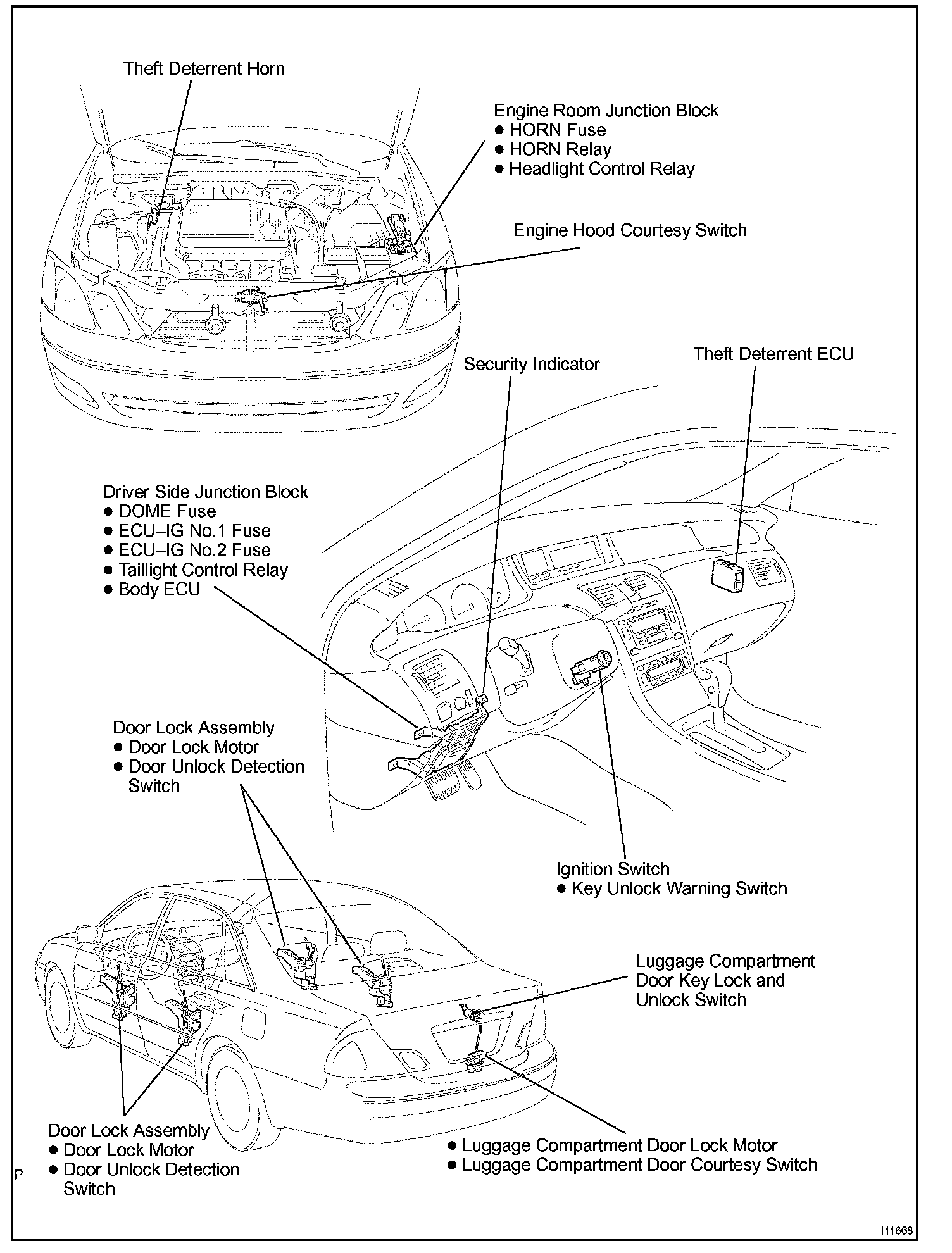

Theft Deterrent System:
Cruise Control System:

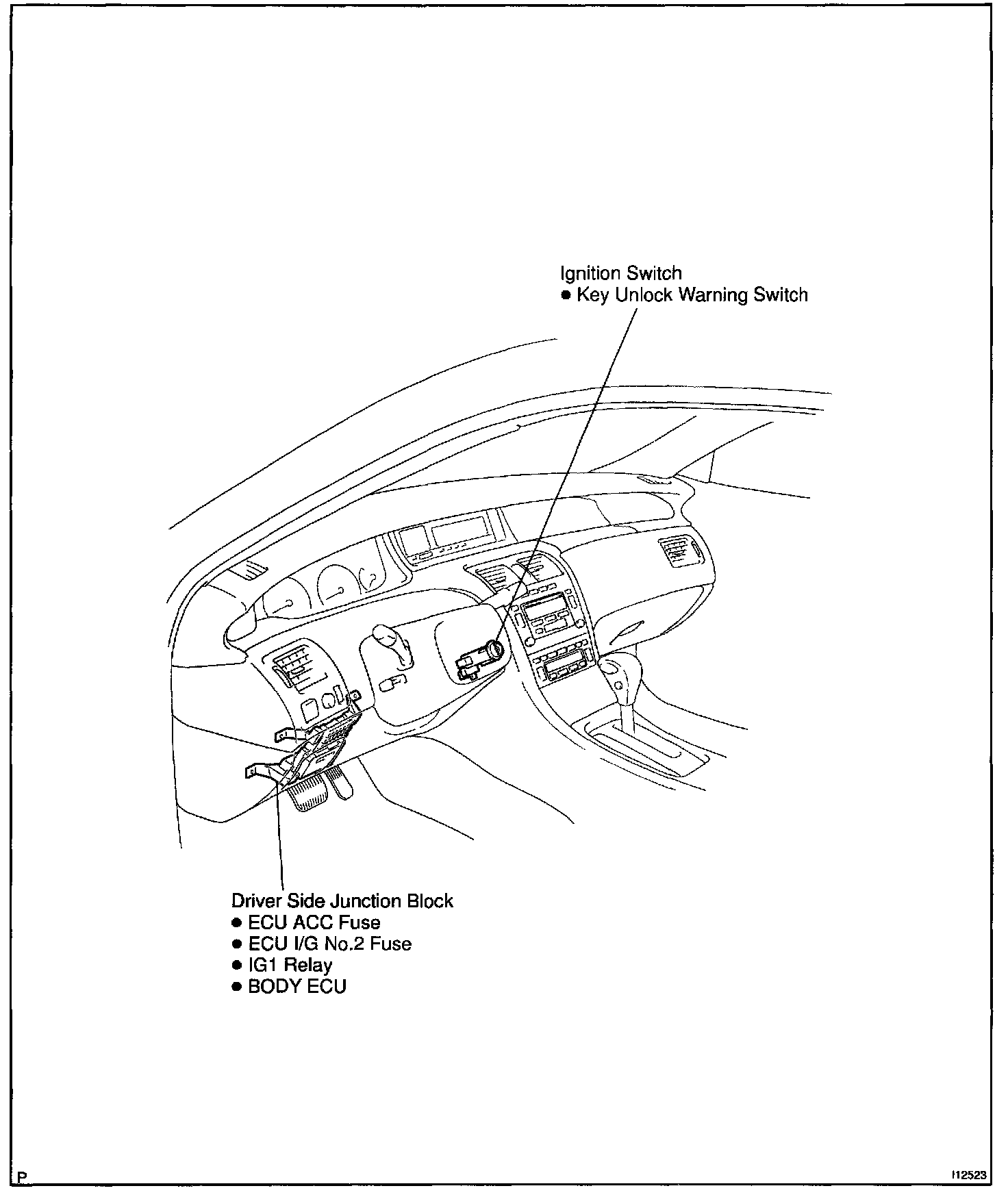

Ignition Switch And Key Unlock Warning Switch:
