Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Avalon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
A1 - A25
A1 - A25

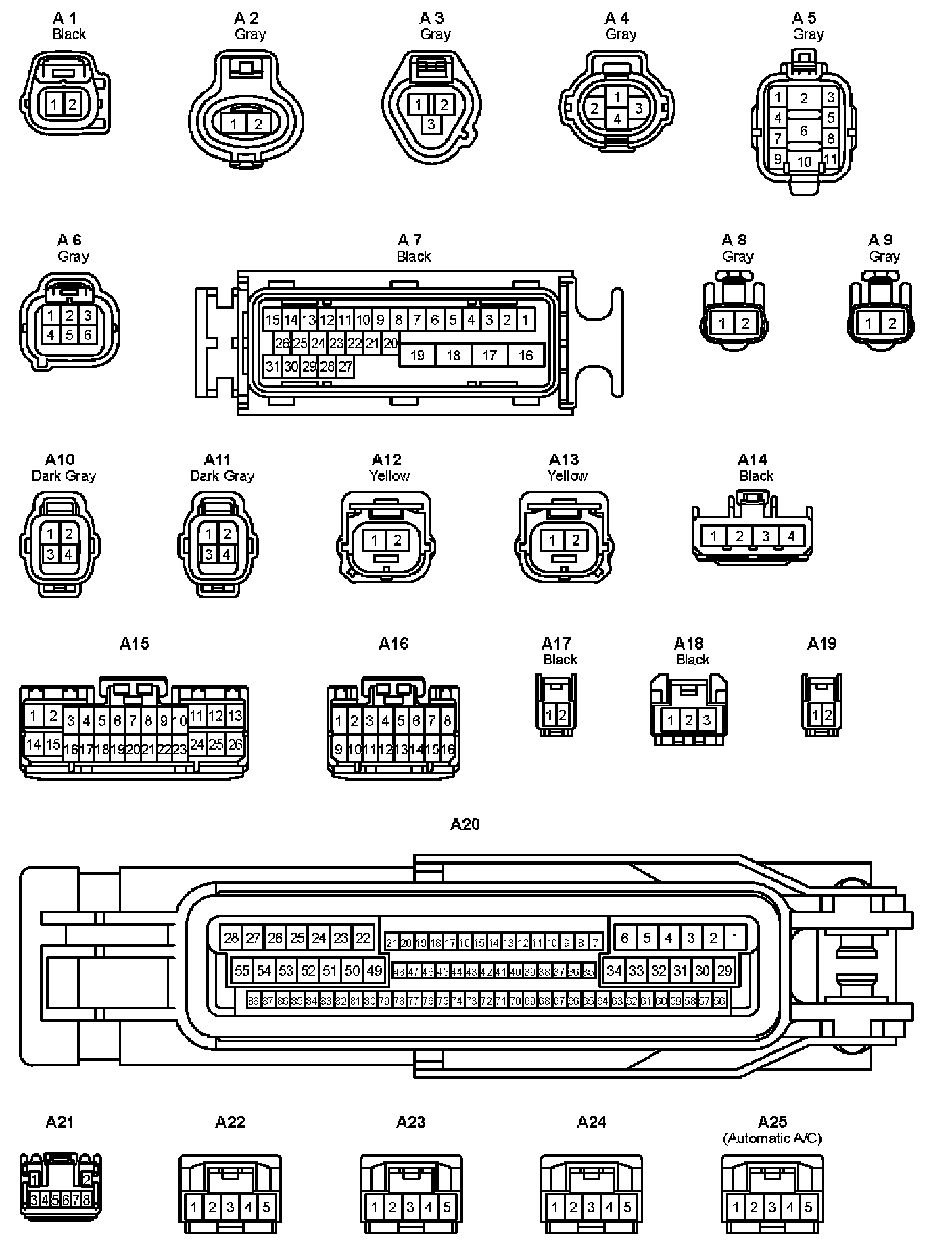

A1 - A25:
