Avalon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Multiple Junction Connector
Multiple Junction Connector

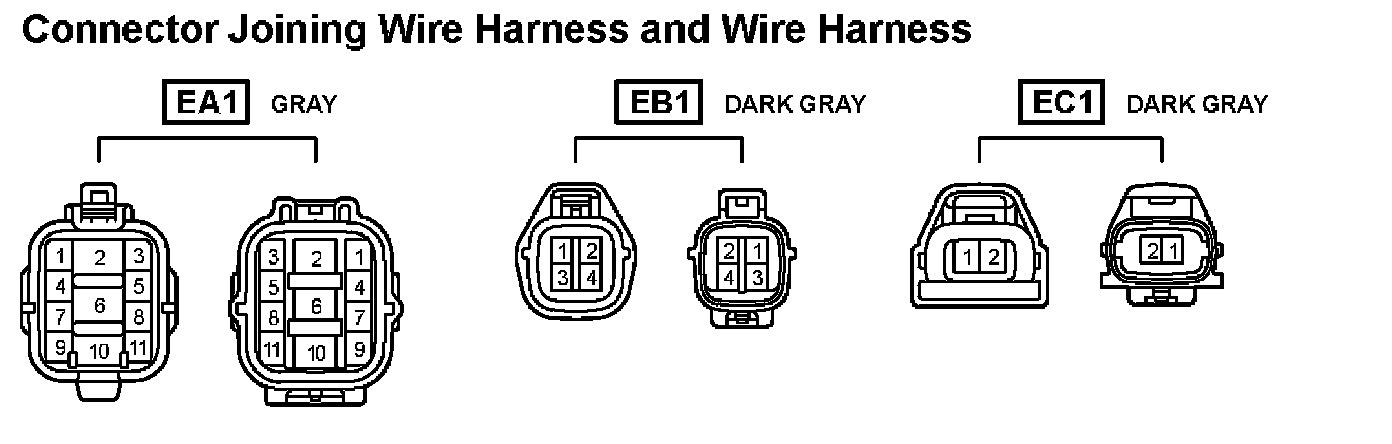

EA1 - EC1:

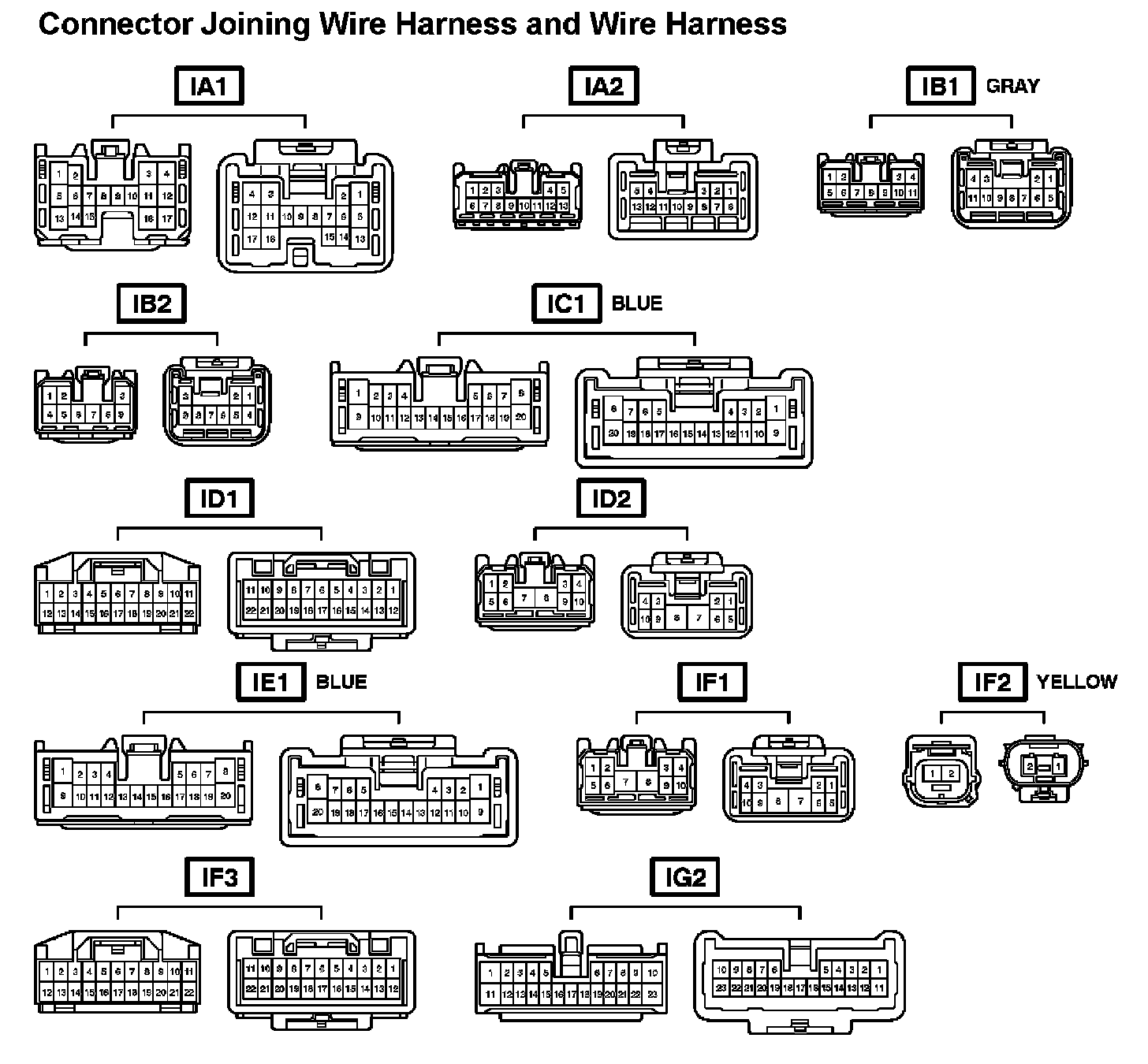

IA1 - IG2:

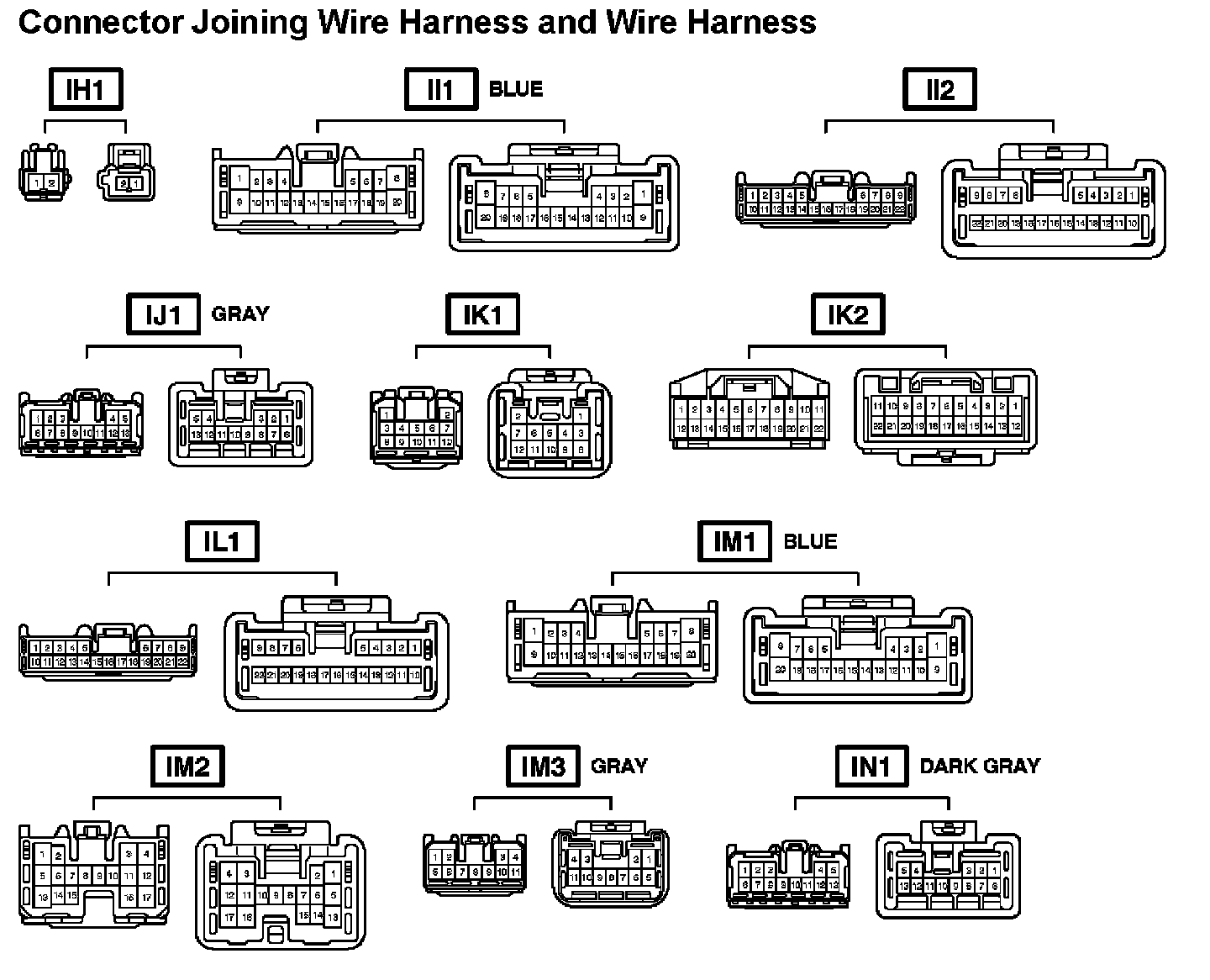

IH1 - IN1:

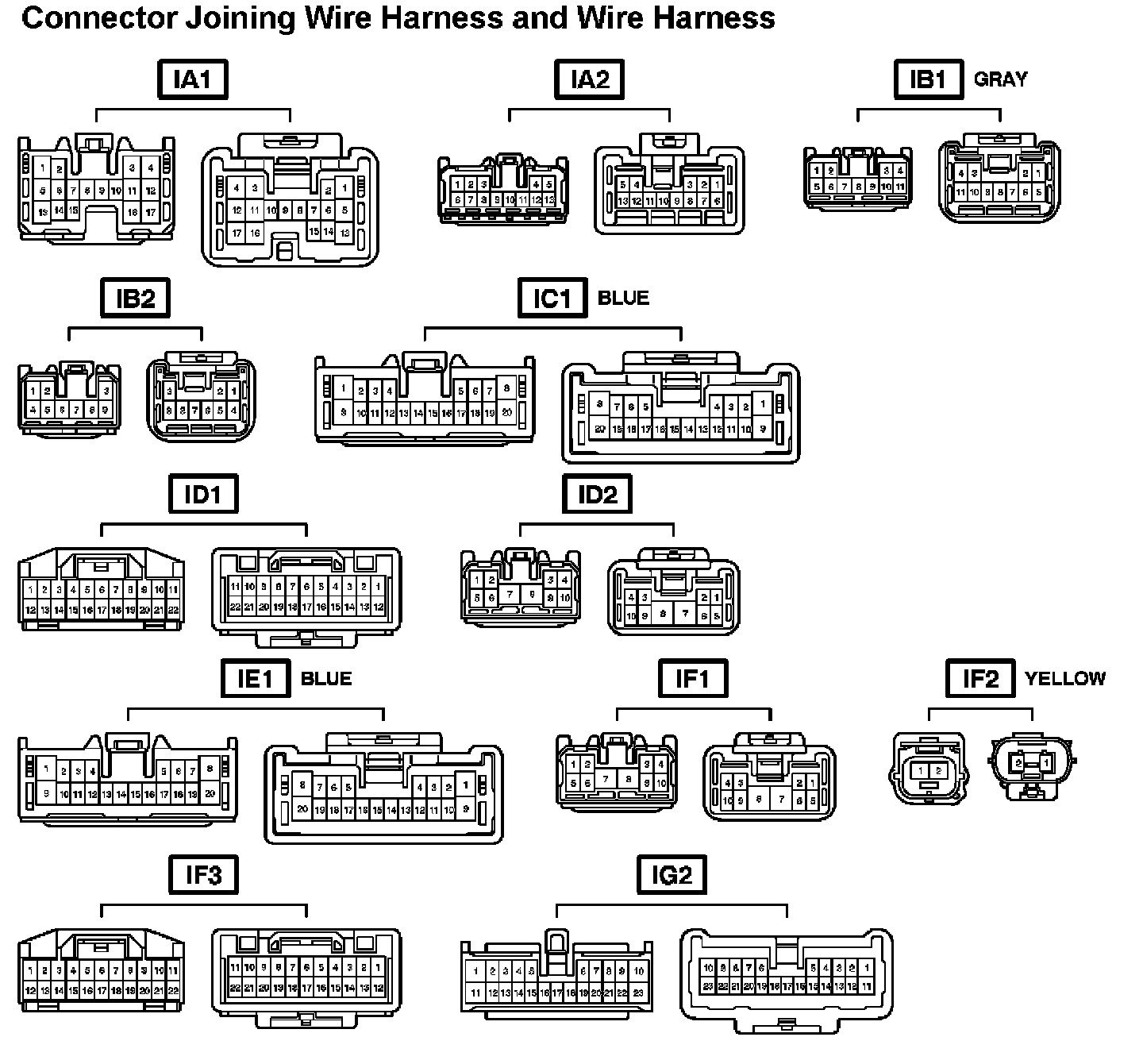

IA1 - IG2:

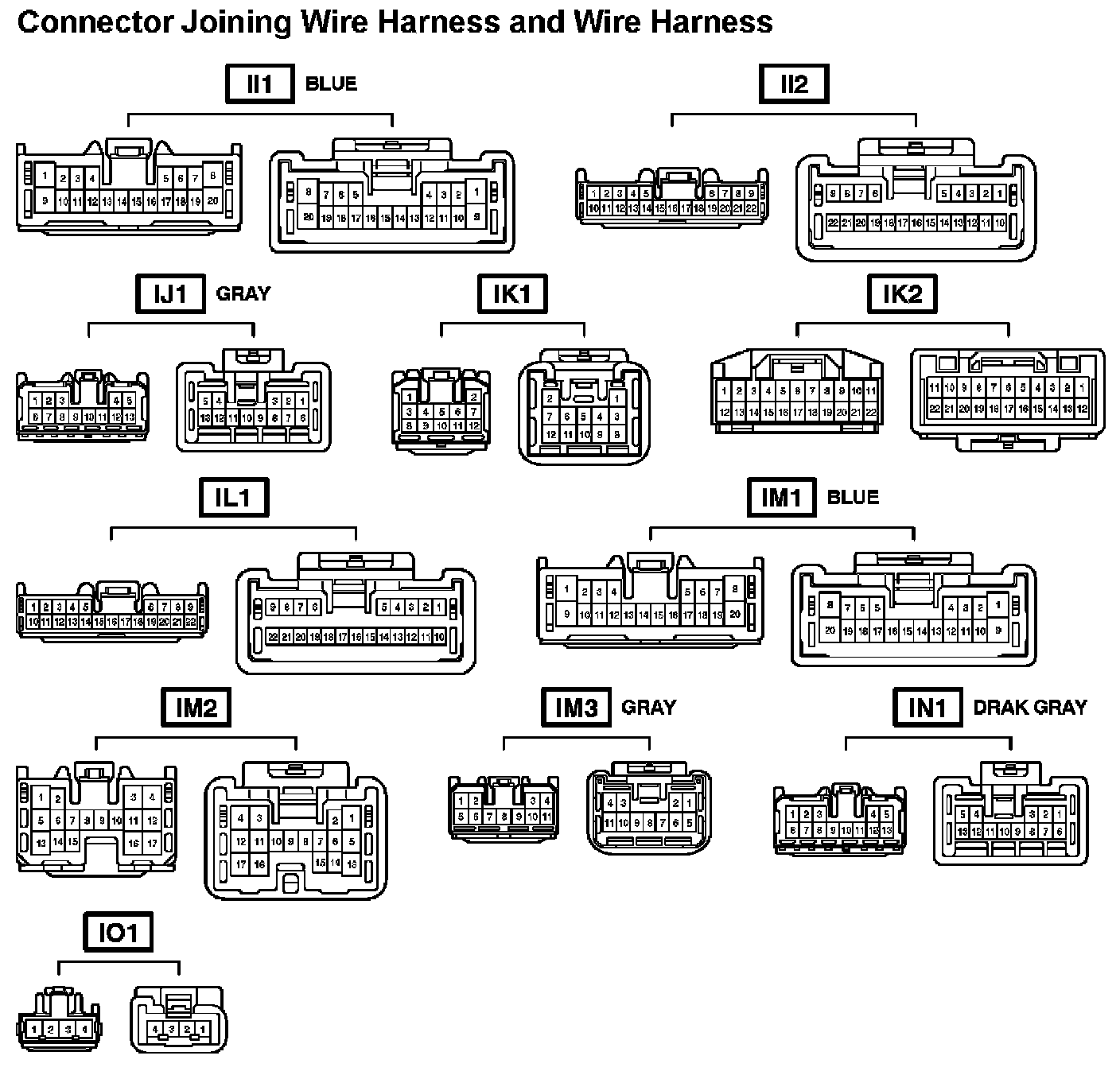

II1 - IO1:

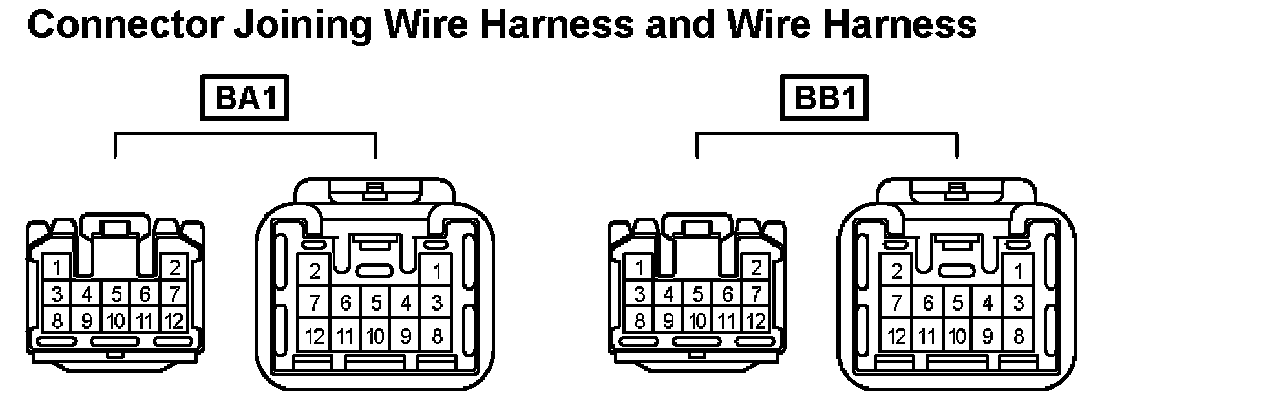

BA1 - BB1:

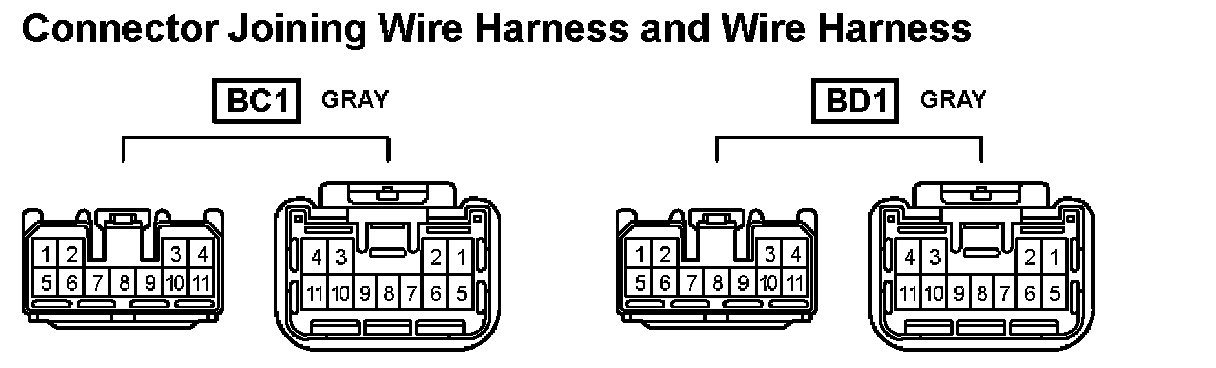

BC1 - BD1:

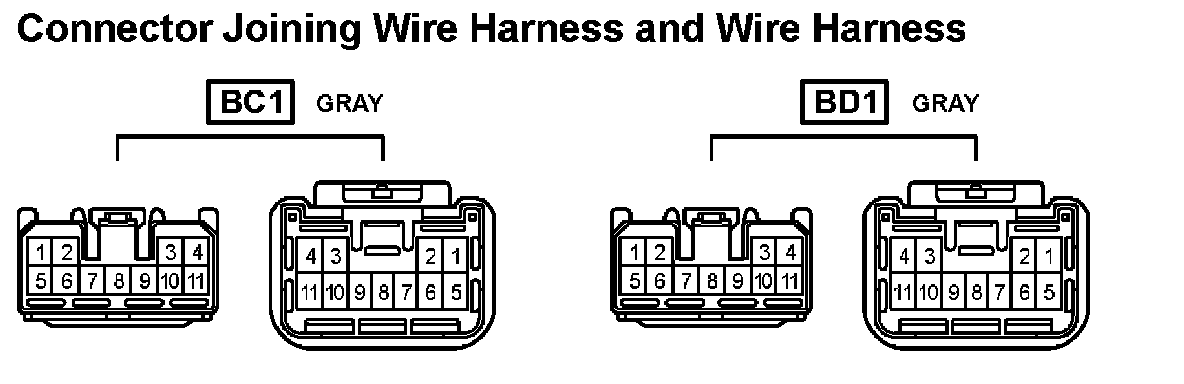

BC1 - BD1:
