Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Avalon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Compressor Clutch
Compressor Clutch

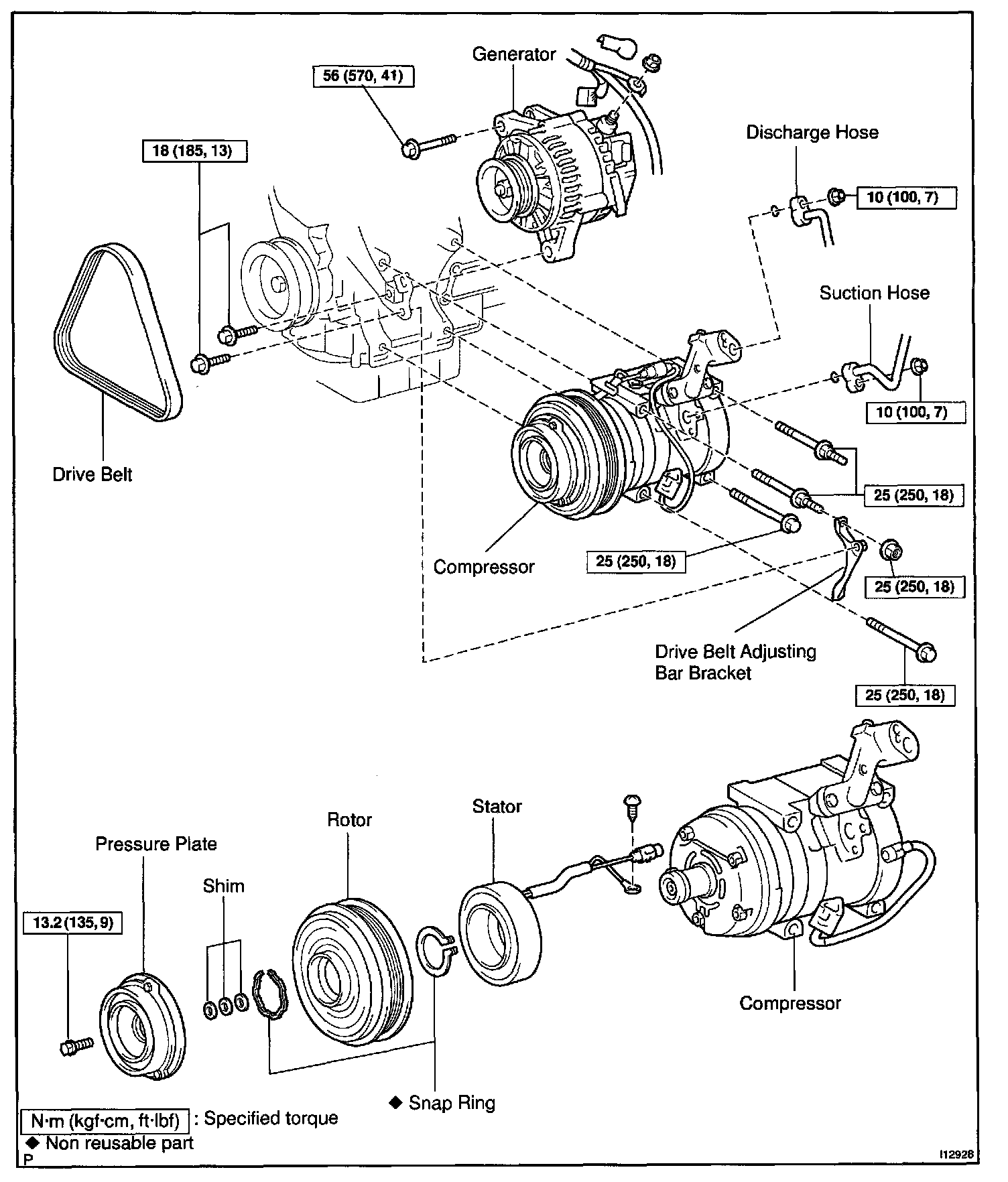

Compressor And Magnetic Clutch:
