Radiator Cooling Fan Motor: Service and Repair

Part 1 Of 2:

Part 2 Of 2:

REMOVAL
REMOVE COOLING FANS

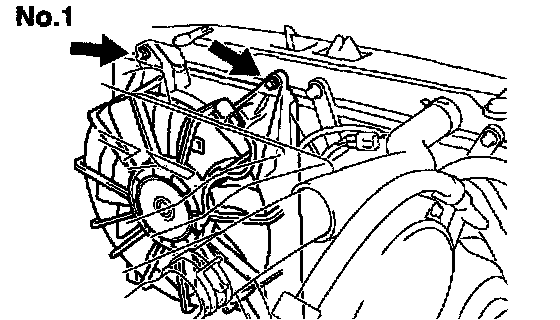

a. Remove the No. 1 cooling fan.
1. Remove the batter and battery tray.
2. Disconnect the cruise control actuator.
3. Disconnect the No. 3 engine room relay block from radiator.
4. Disconnect the cooling fan connector.
5. Disconnect the wire clamps from the fan shroud.
6. Remove the 2 bolts and cooling fan.
Torque: 5.0 Nm (50 kgf-cm, 44 inch lbs.)

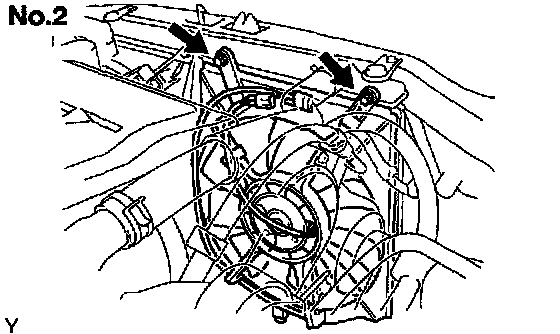

b. Remove the No. 2 cooling fan.
1. Drain the engine coolant.
2. Disconnect the upper radiator hose from the radiator.
3. Disconnect the cooling fan and No. 1 ECT switch wire connectors.
4. Disconnect the wire clamps from the fan shroud.
5. Disconnect the No. 1 ECT switch connector.
6. Remove the 2 bolts and cooling fan.
Torque: 5.0 Nm (50 kgf-cm, 44 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal.
