Diesel Data: Automotive Repair
Home >> Toyota >> 2004 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Application and ID

Cylinder Head Assembly: Application and ID

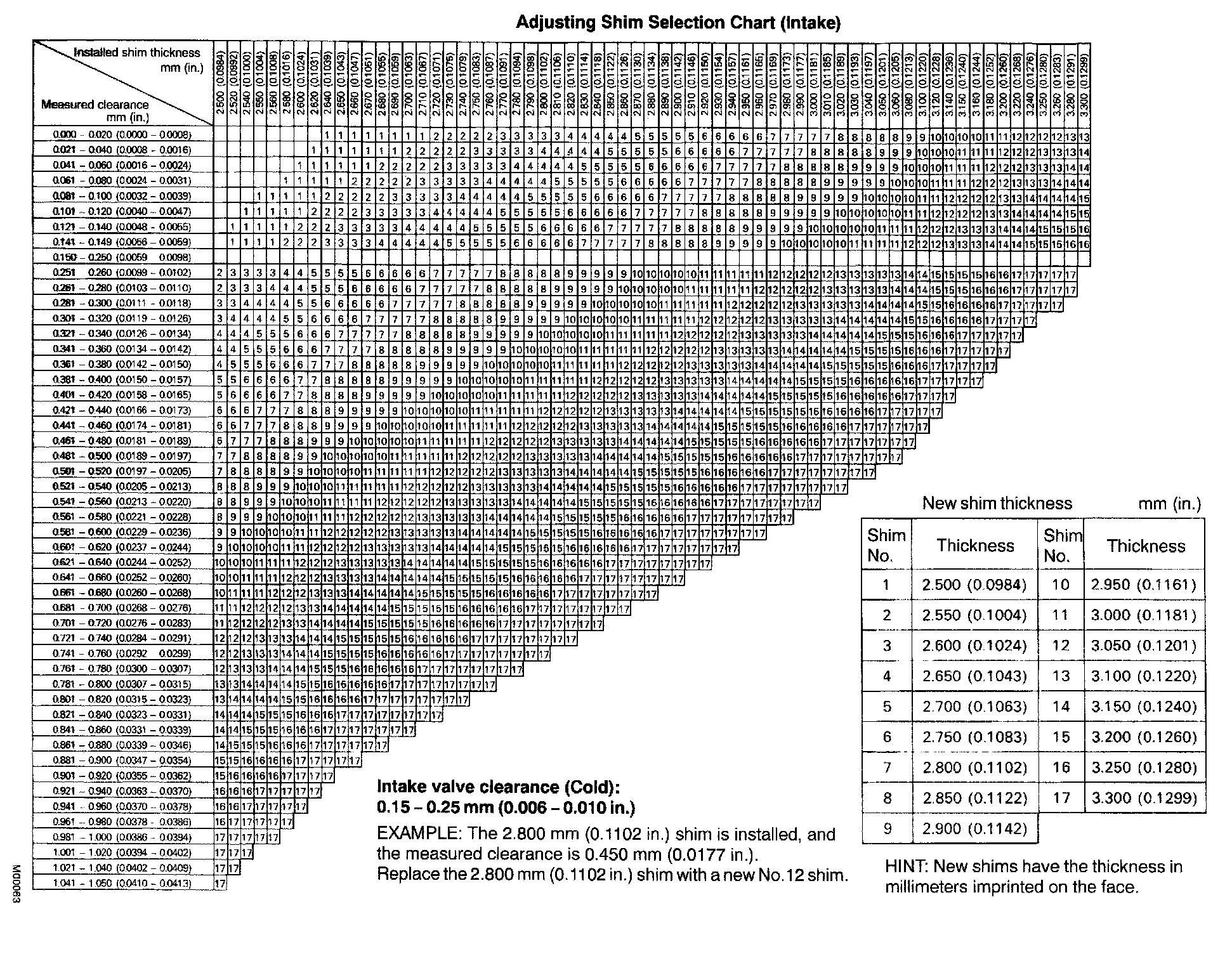

Adjusting Shim Selection Chart (Intake)

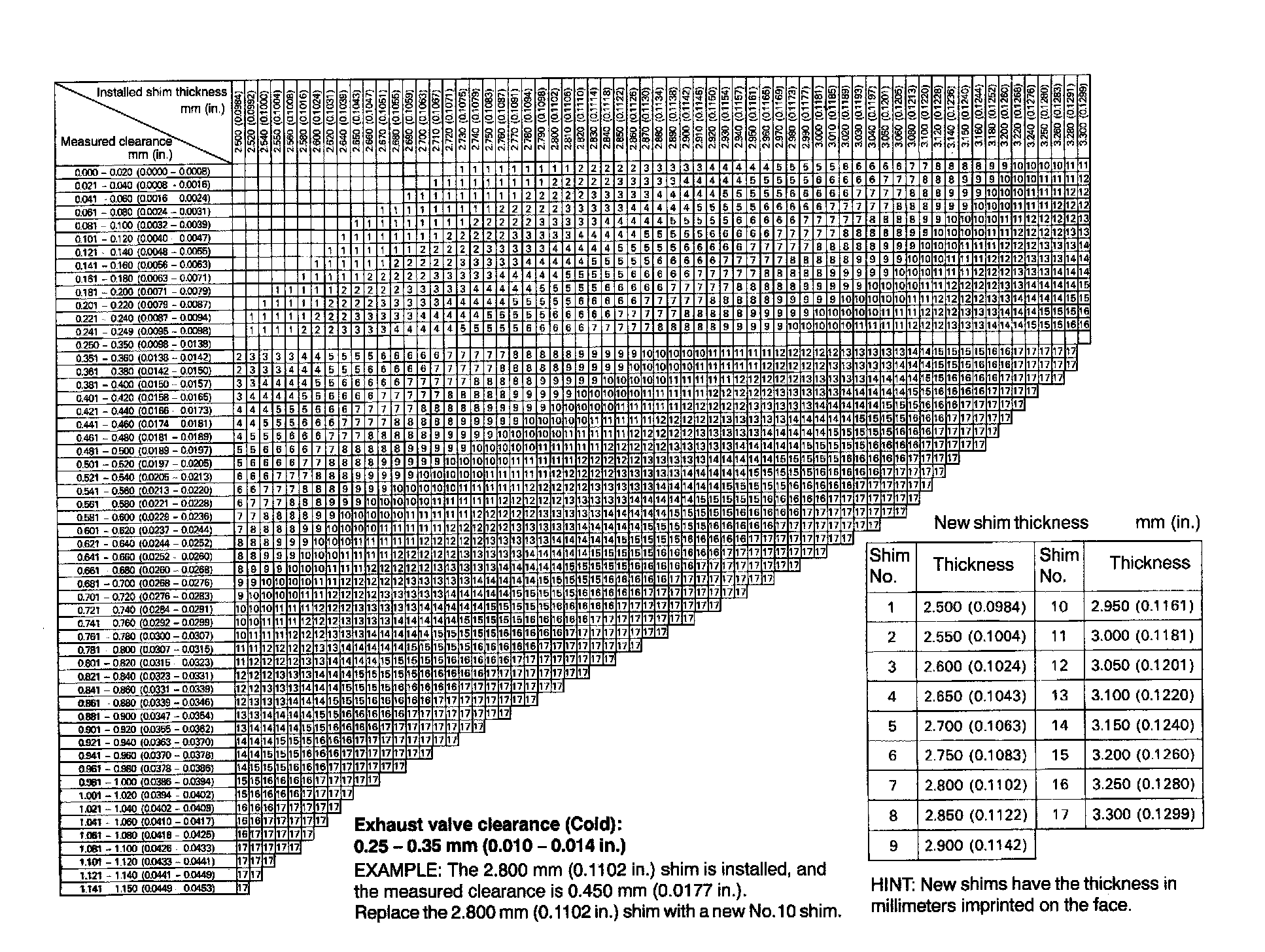

Adjusting Shim Selection Chart (Exhaust)
