Air Mix Servomotor

INSPECTION




1. Drive side:
REMOVE AIR MIX SERVOMOTOR
a. Remove the lower No.1 panel.
b. Remove the lower LH panel insert.
c. Disconnect the connector.

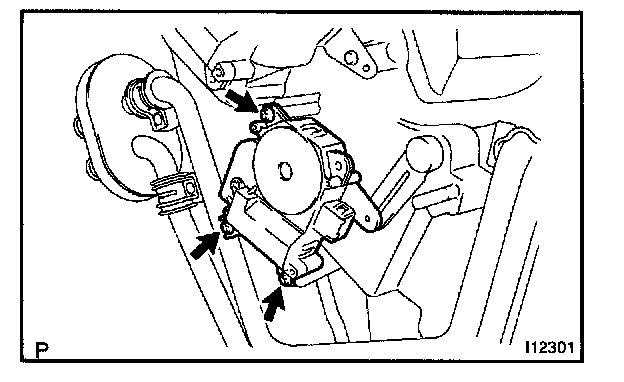

d. Remove the 3 screws and the servomotor.

2. INSPECT AIR MIX DAMPER POSITION SENSOR CIRCUIT
3. INSPECT AIR MIX CONTROL SERVOMOTOR CIRCUIT




4. Passenger side:
REMOVE AIR MIX SERVOMOTOR
a. Remove the blower unit.
b. Disconnect the connector.

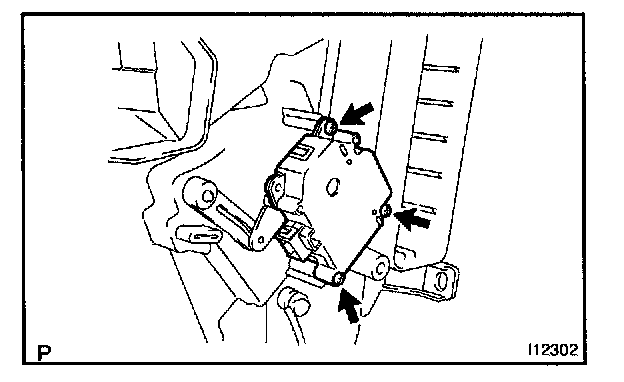

c. Remove the 3 screws and the servomotor.

5. INSPECT AIR MIX DAMPER POSITION SENSOR CIRCUIT
6. INSPECT AIR MIX CONTROL SERVOMOTOR CIRCUIT
7. Driver side:
INSTALL AIR MIX SERVOMOTOR
a. Install the servomotor with the 3 screws.
b. Connect the connector.
c. Install the lower LH panel insert.
d. Install the lower No.1 panel.

8. Passenger side:
INSTALL AIR MIX SERVOMOTOR
a. Install the servomotor with the 3 screws.
b. Connect the connector.
c. Install the blower unit.
