Replacement
REPLACEMENTREPLACE DRIER FROM MODULATOR

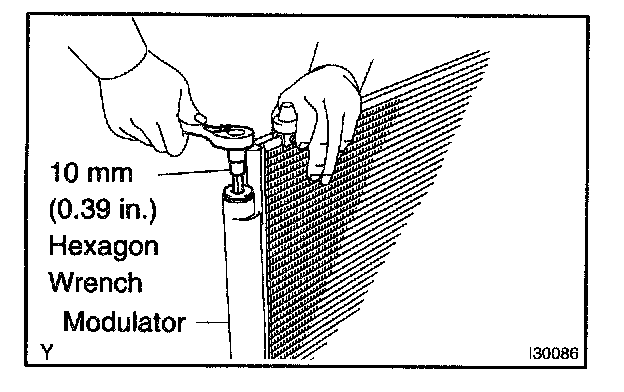

a. Using a hexagon wrench (10 mm, 0.39 in.), remove the cap from the modulator.
b. Remove the filter from the modulator.

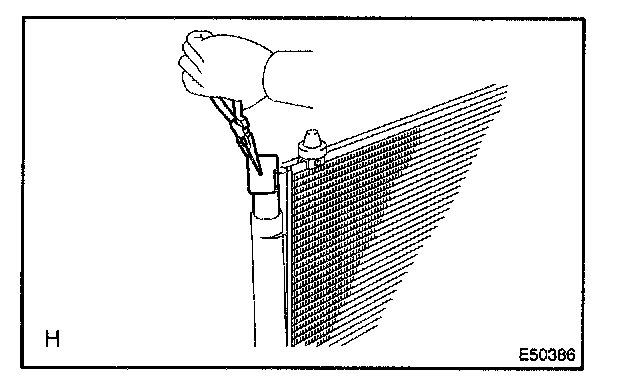

c. Using pliers, remove the drier.
d. Insert a new drier into the modulator.
NOTE:
- Do not remove the drier from a vinyl bag until inserting it into the modulator.

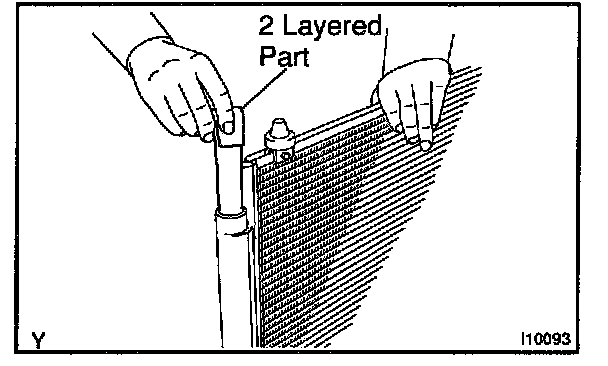

- Install the drier with its 2 layered part faced upward to the modulator.
e. Insert the filter into the modulator.

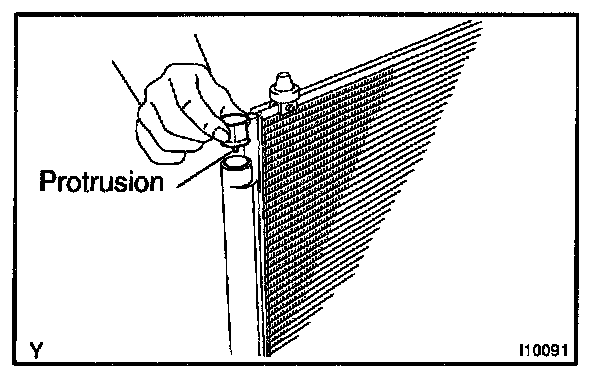

NOTE: Install the filter with its protrusion faced downward to the modulator.
f. Install the cap to the modulator.

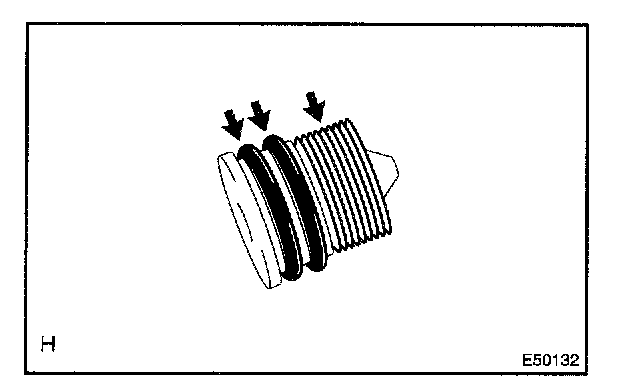

1. Apply compressor oil to the O-rings and screw part of the cap.
Compressor oil: ND-OIL 8 or equivalent
2. Using a hexagon wrench (10 mm, 0.39 in.), install the caps.
Torque: 12.3 N.m (125 kgf.cm, 9 ft.lbf)
