Heater Main Relay Circuit
CIRCUIT DESCRIPTIONThe heater main relay is switched on by signals from the A/C control assembly. It supplies power to the blower motor.

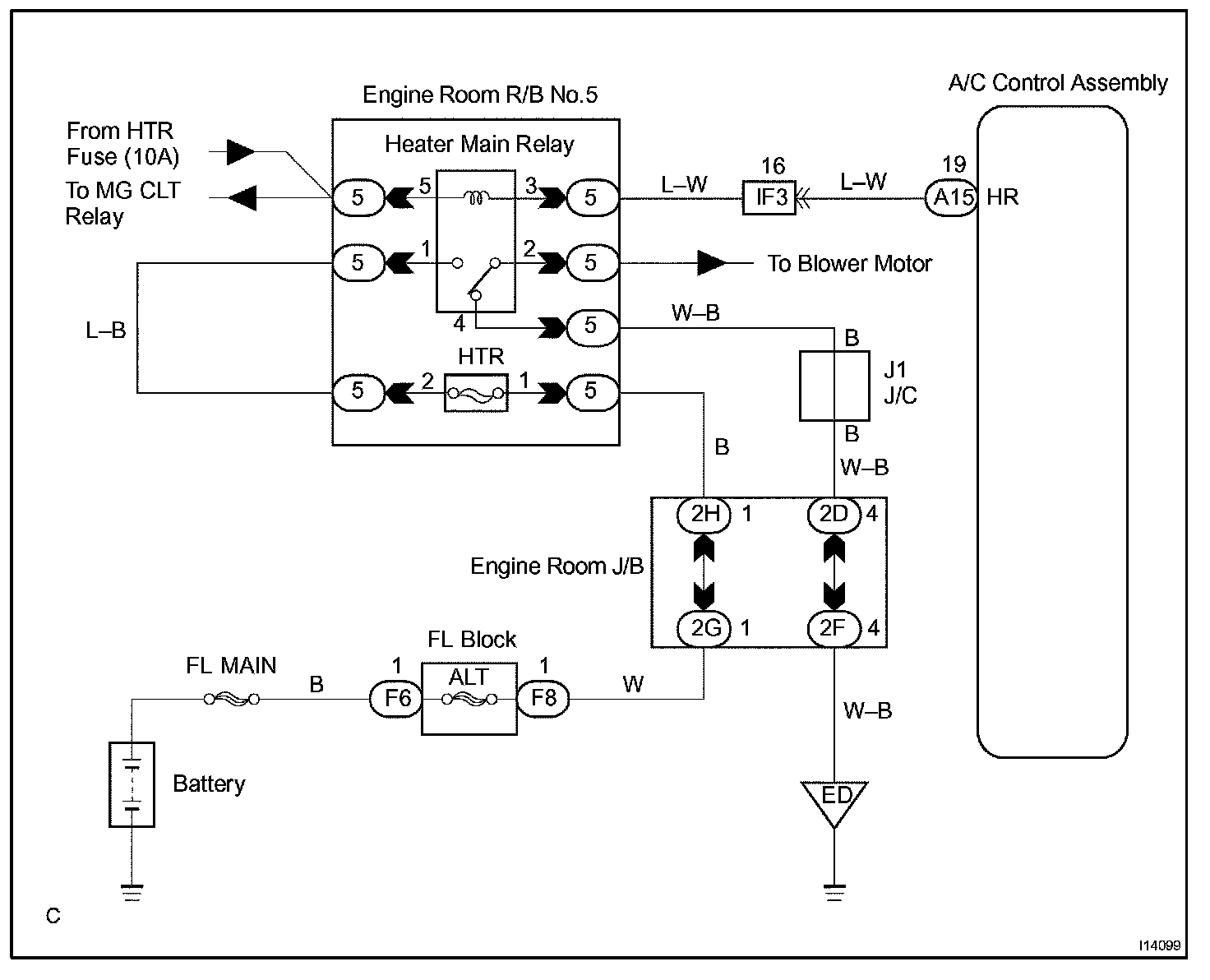

Wiring Diagram:
Step 1:
Step 2 - 3:

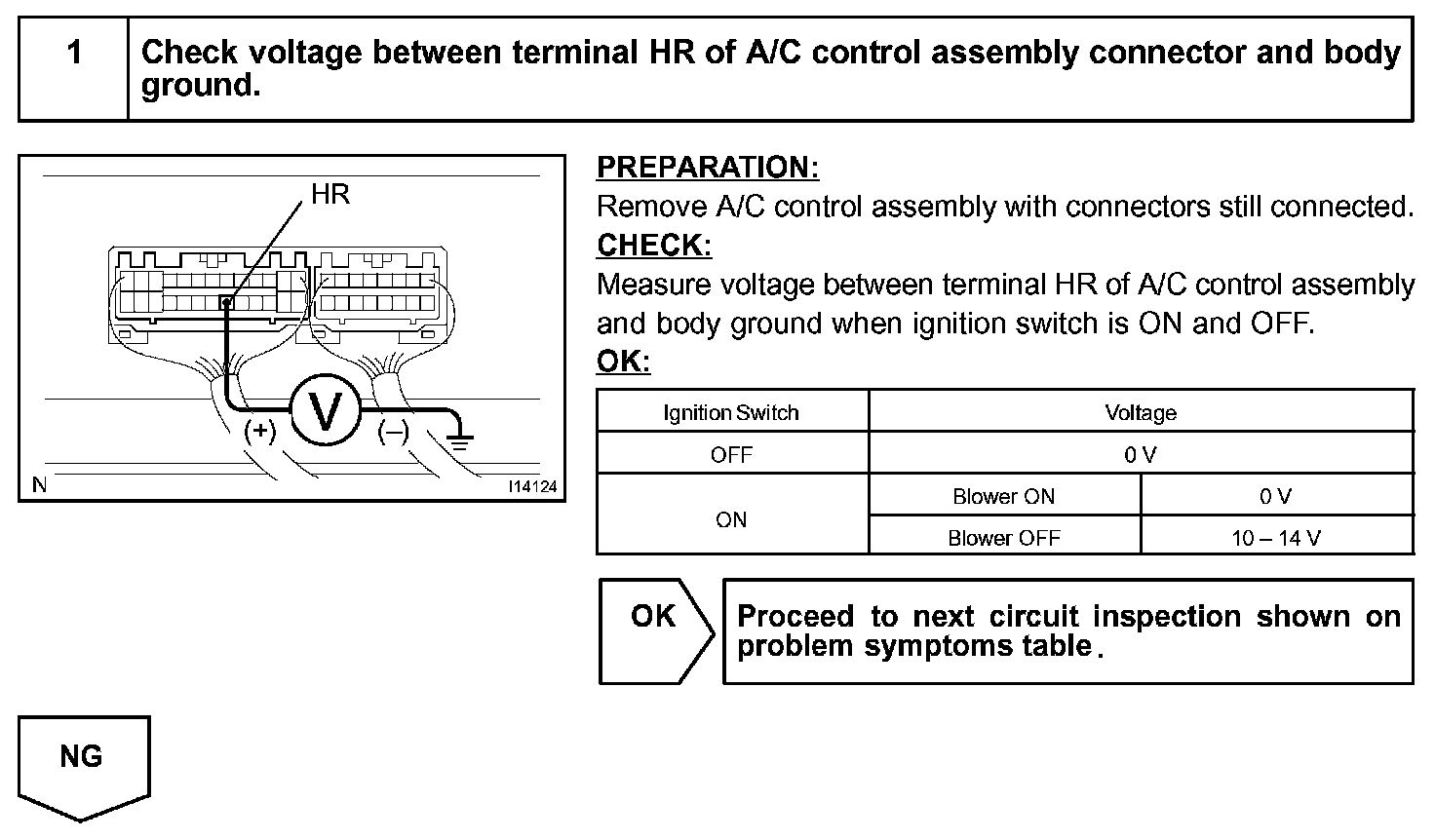

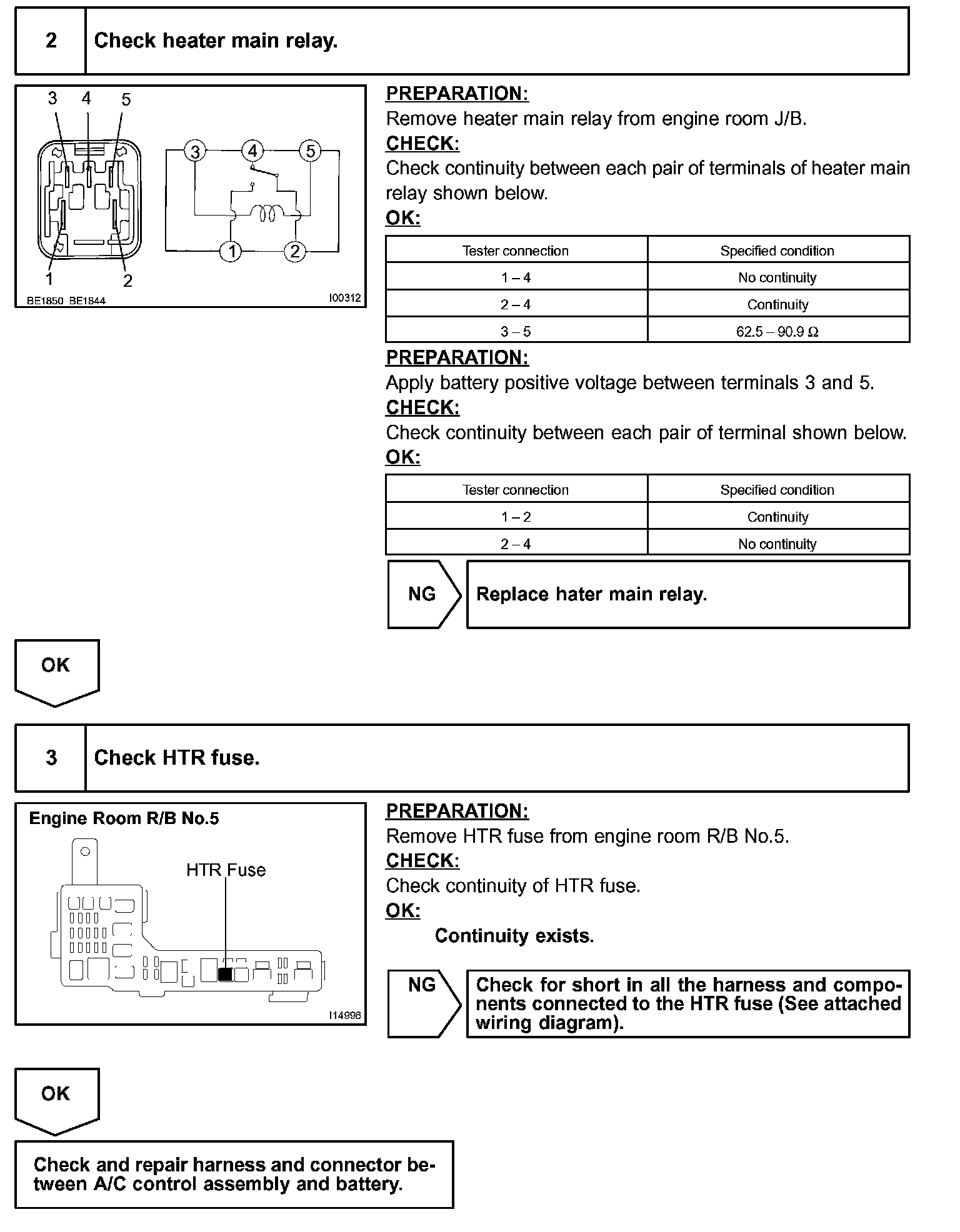

INSPECTION PROCEDURE
The heater main relay is switched on by signals from the A/C control assembly. It supplies power to the blower motor.
INSPECTION PROCEDURE
