Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Locations
>>

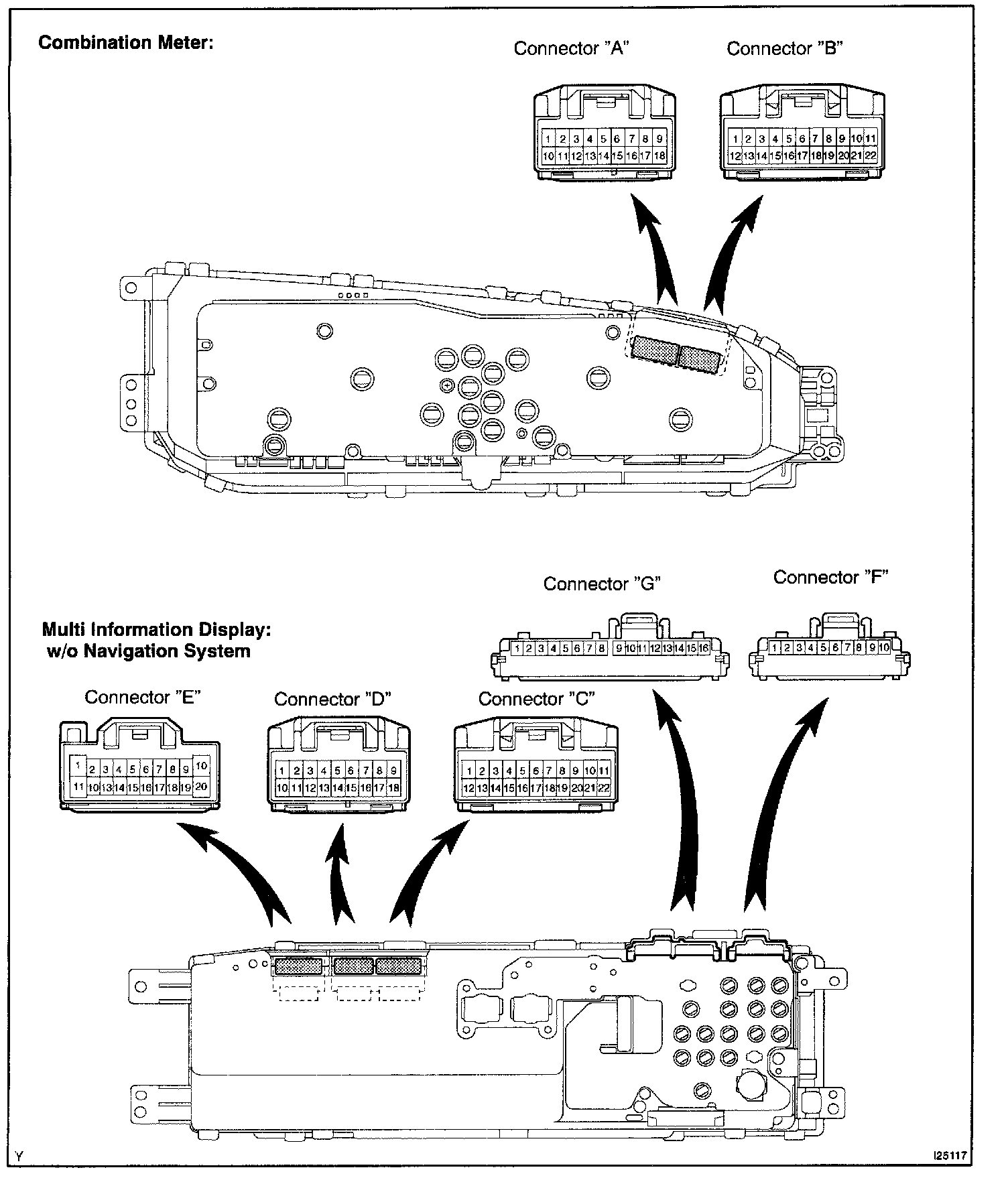

Connector Locations
Connector Locations

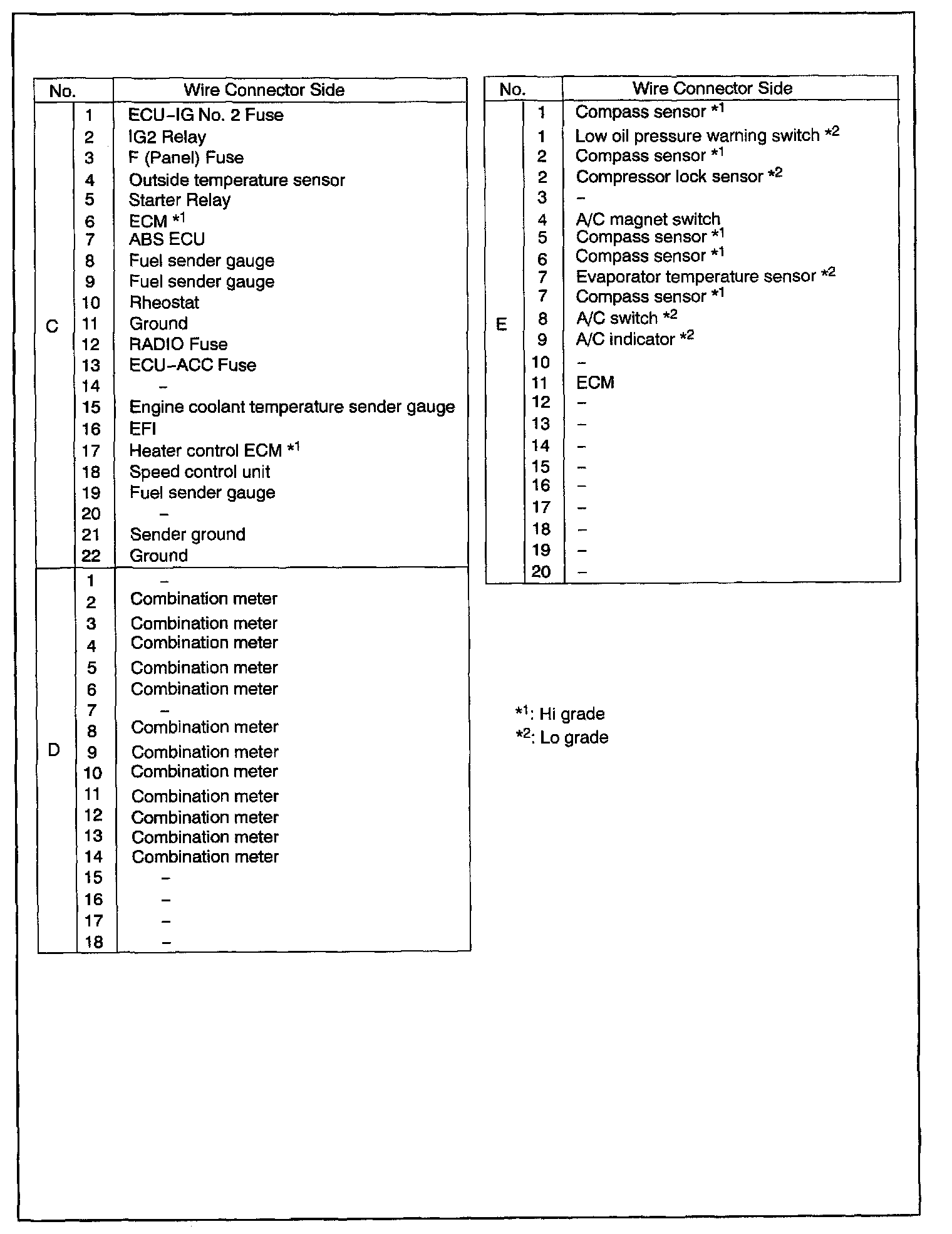

Circuit Part 1:

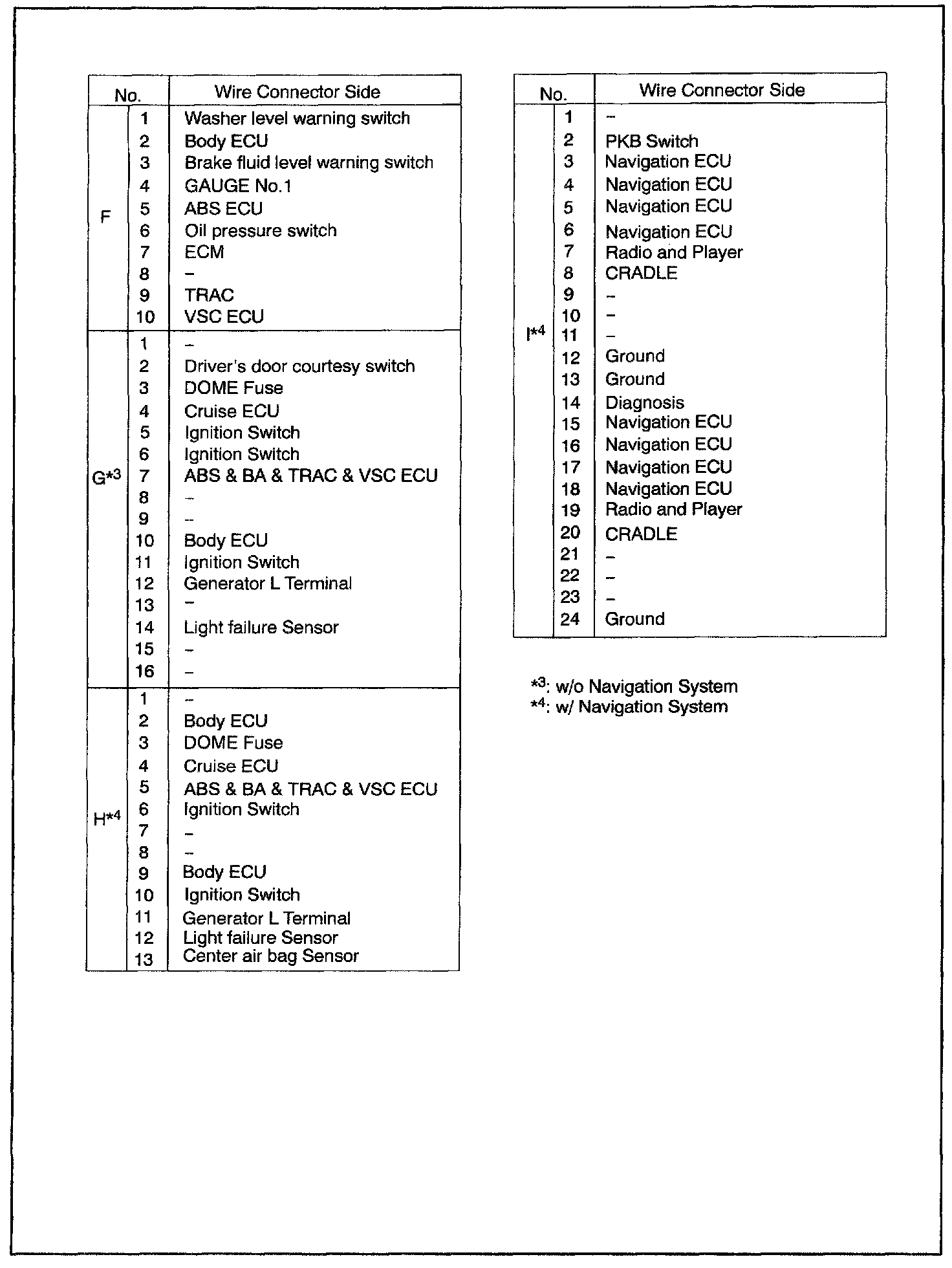

Circuit Part 2:
