Initial Inspection (Basic Inspection)
Initial Inspection (Basic Inspection)
BASIC INSPECTION
Step 1 - 2:

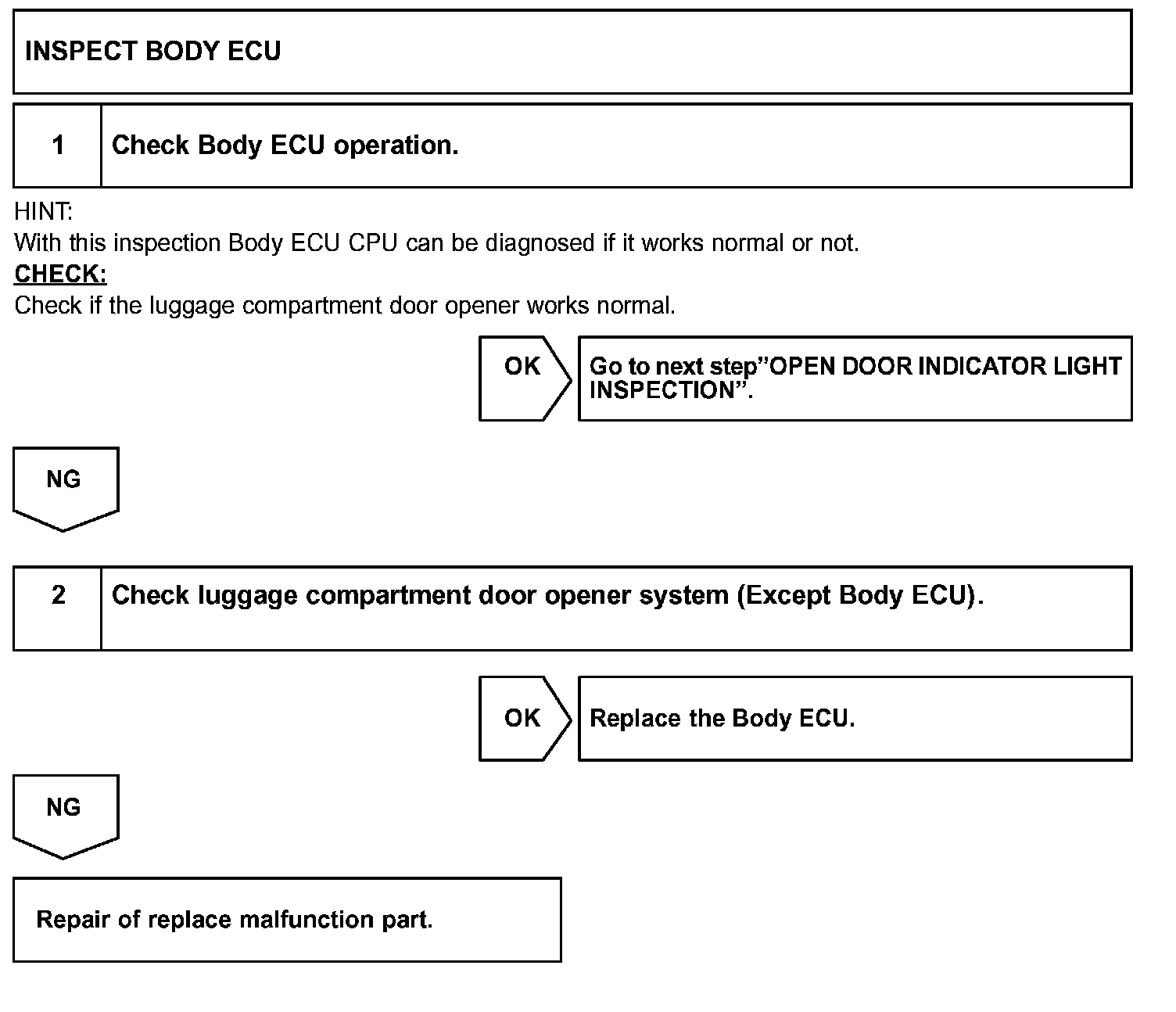

INSPECT BODY ECU

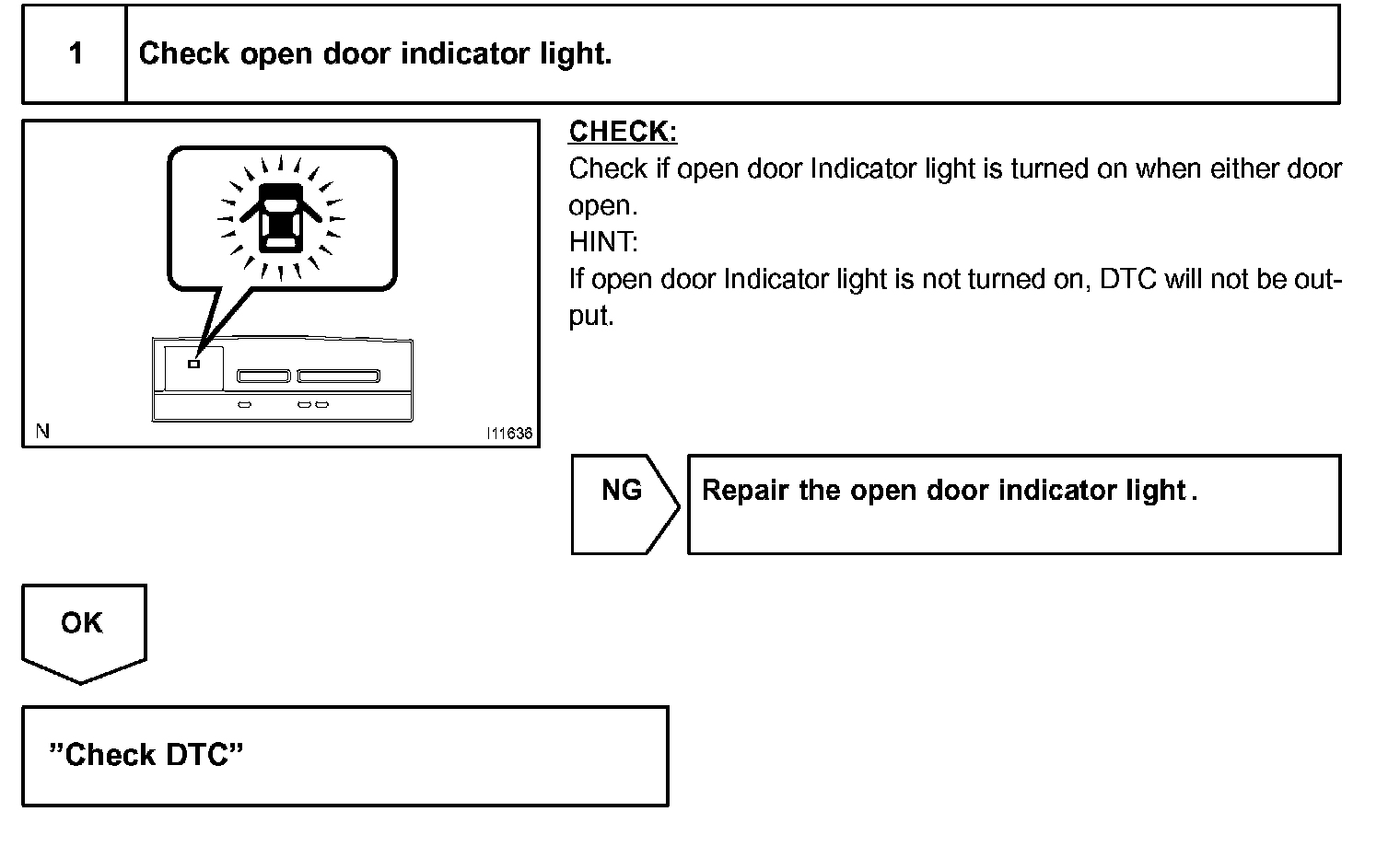

INSPECT OPEN DOOR INDICATOR LIGHT
