Leak Detection Solenoid: Testing and Inspection

INSPECTION

1. REMOVE VSV

2. INSPECT VSV FOR OPEN CIRCUIT

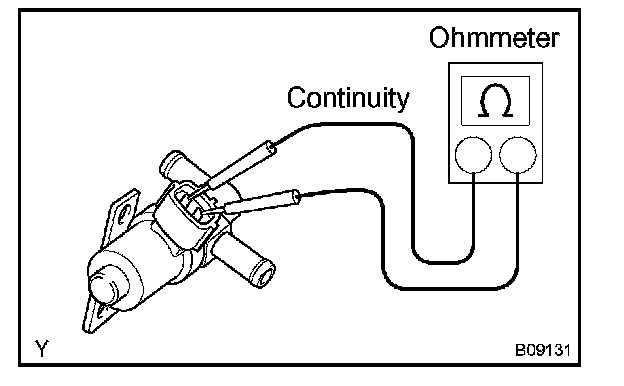

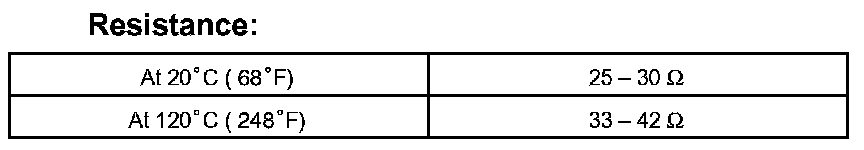

Using an ohmmeter, check that there is continuity between the terminals.
If there is not continuity, replace the VSV

3. INSPECT VSV FOR GROUND

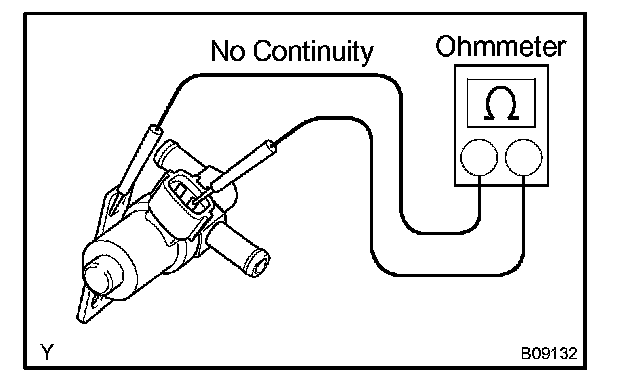

Using an ohmmeter, check that there is no continuity between each terminal and the body. If there is continuity, replace the VSV.

4. INSPECT VSV OPERATION

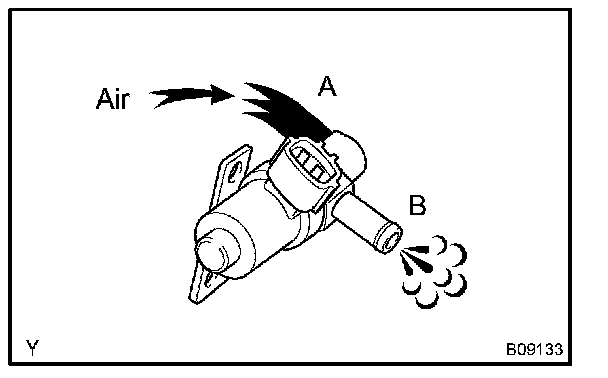

a. Check that air flows from ports A to B.

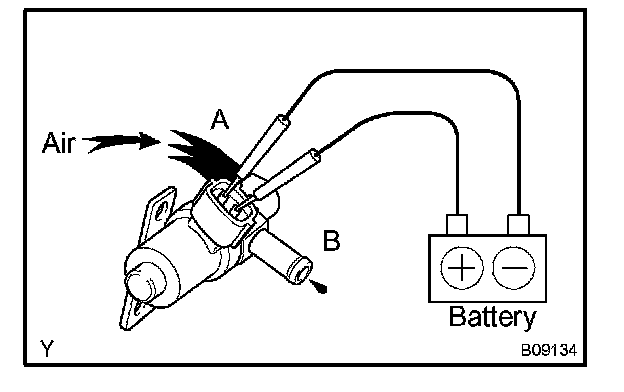

b. Apply battery positive voltage across the terminals.
c. Check that air does not flow from ports A to B. If operation is not as specified, replace the VSV.

5. REINSTALL VSV
