Air Bag Control Module: Locations

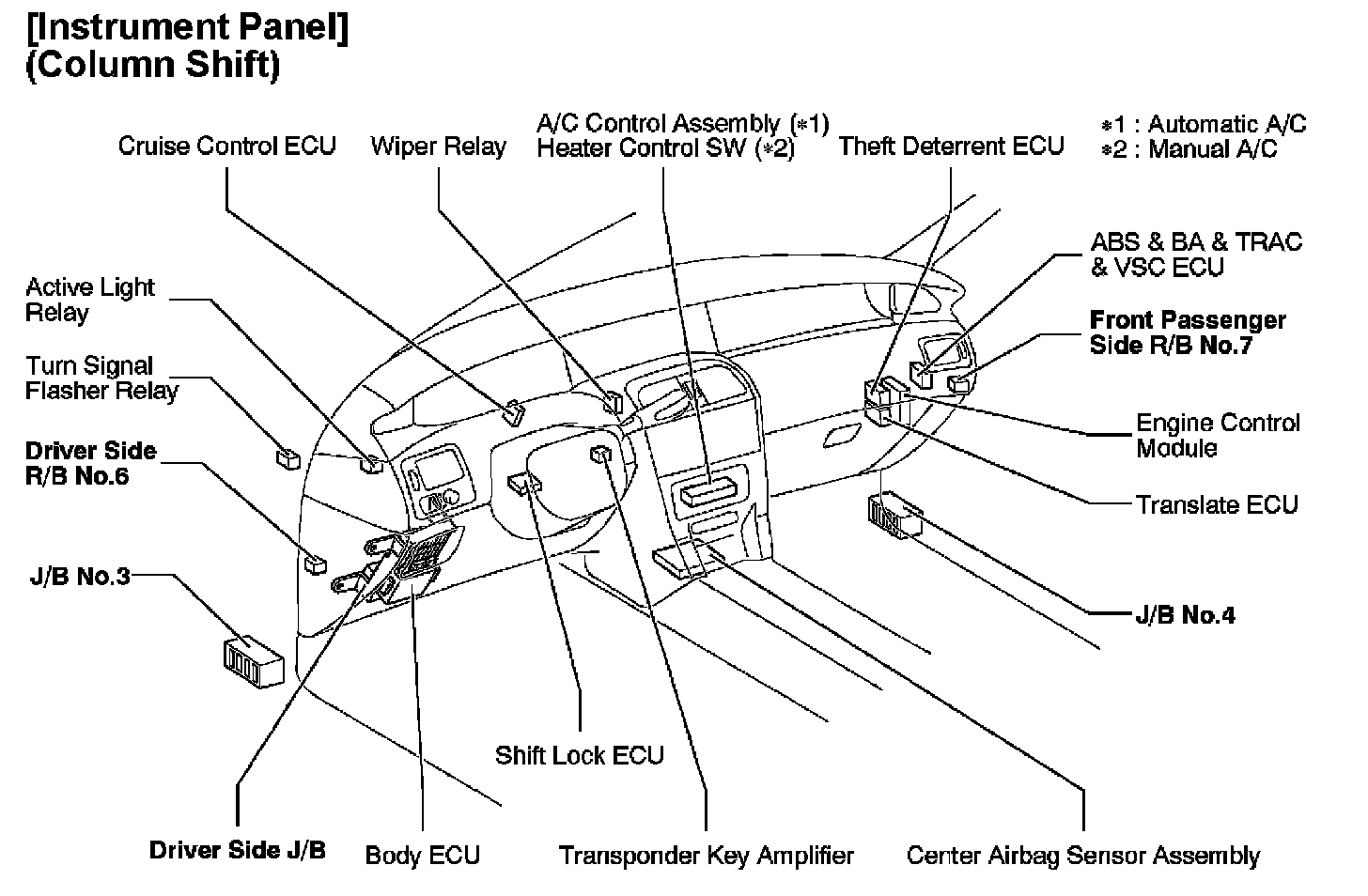

Instrument Panel - Column Shift:

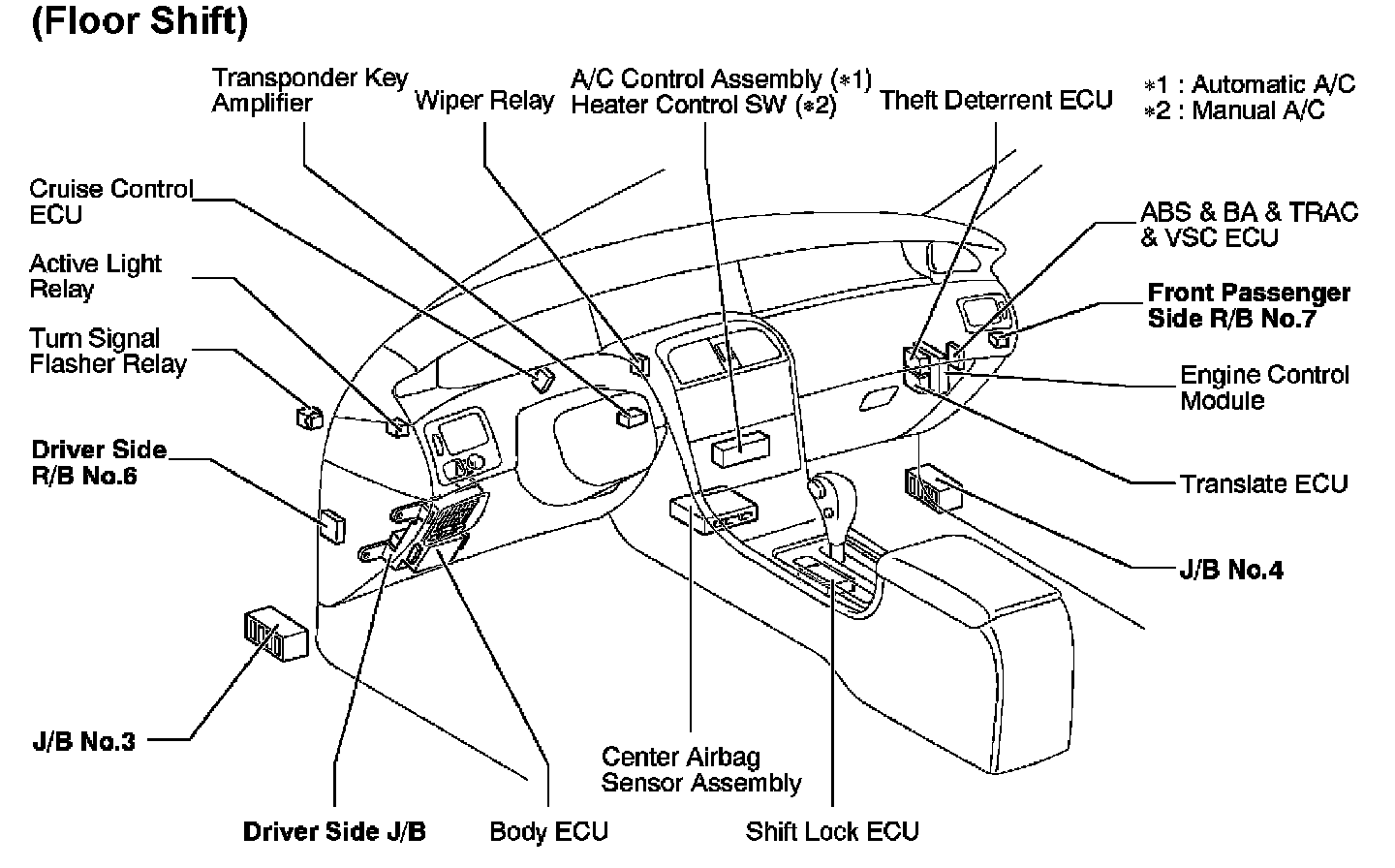

Instrument Panel - Floor Shift:



Ju - Op:



Ju - Op:
