Pinout Values and Diagnostic Parameters

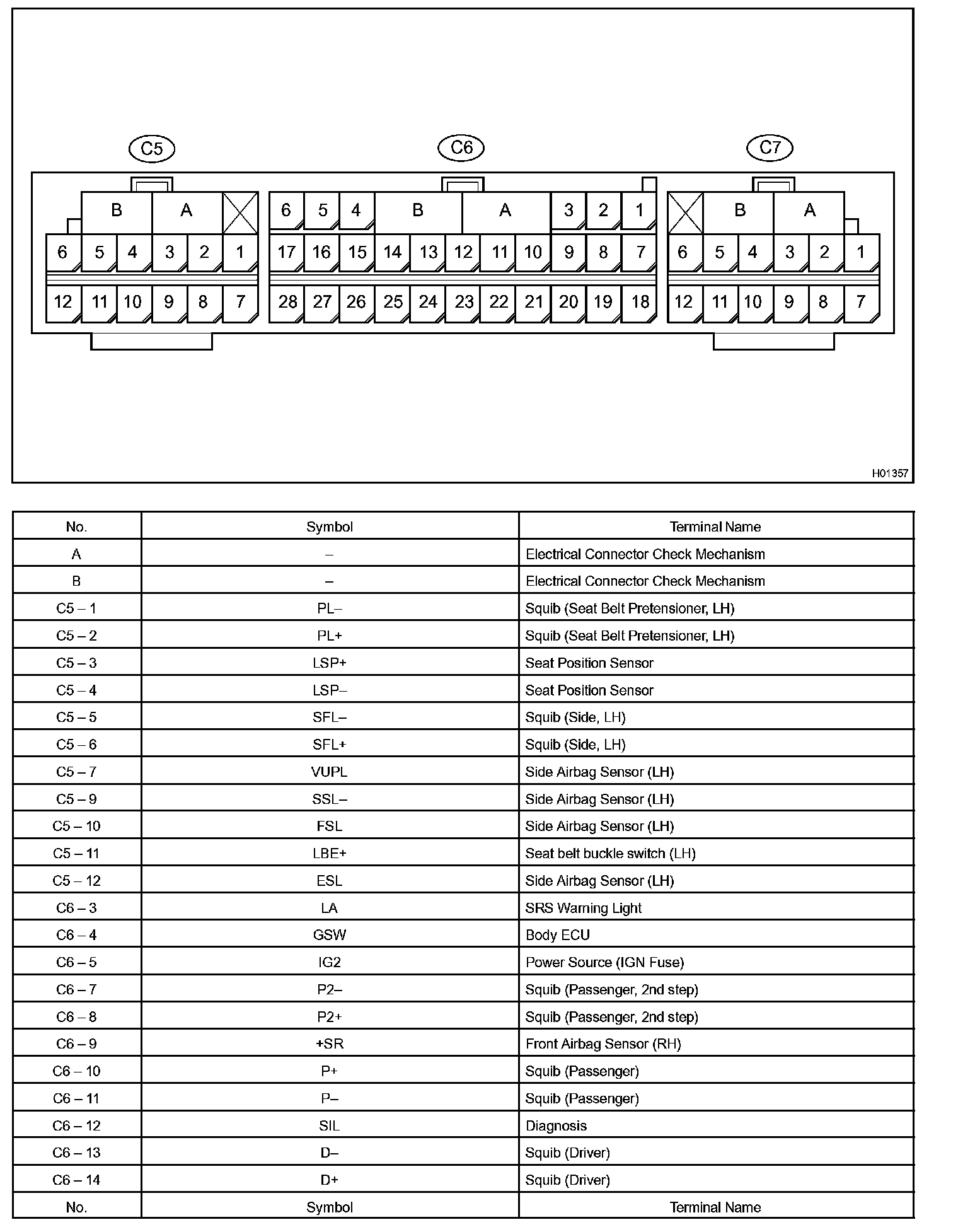

Terminals Of ECU/Pinouts Part 1:

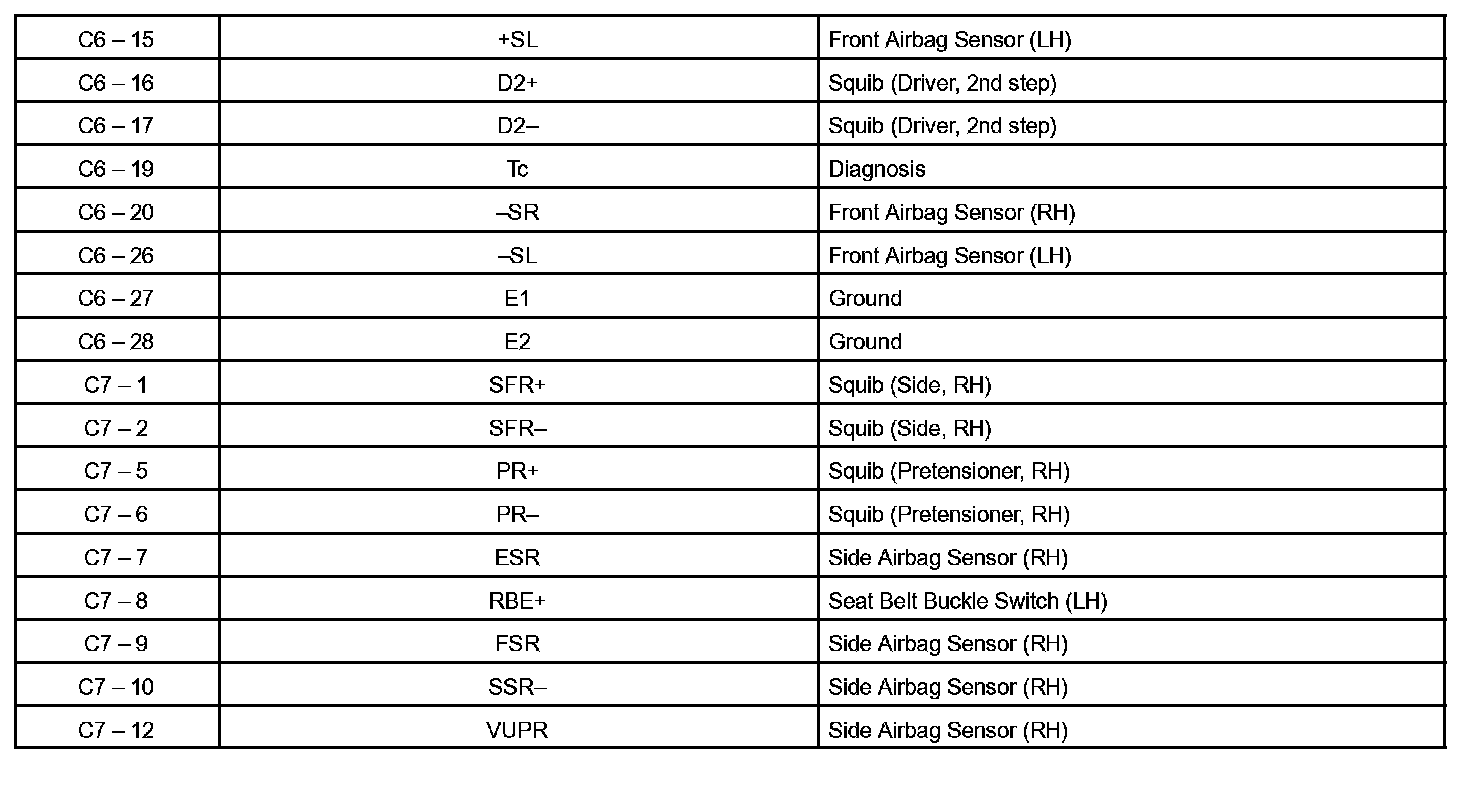

Terminals Of ECU/Pinout Part 2:
