Instrument Panel, Gauges and Warning Indicators

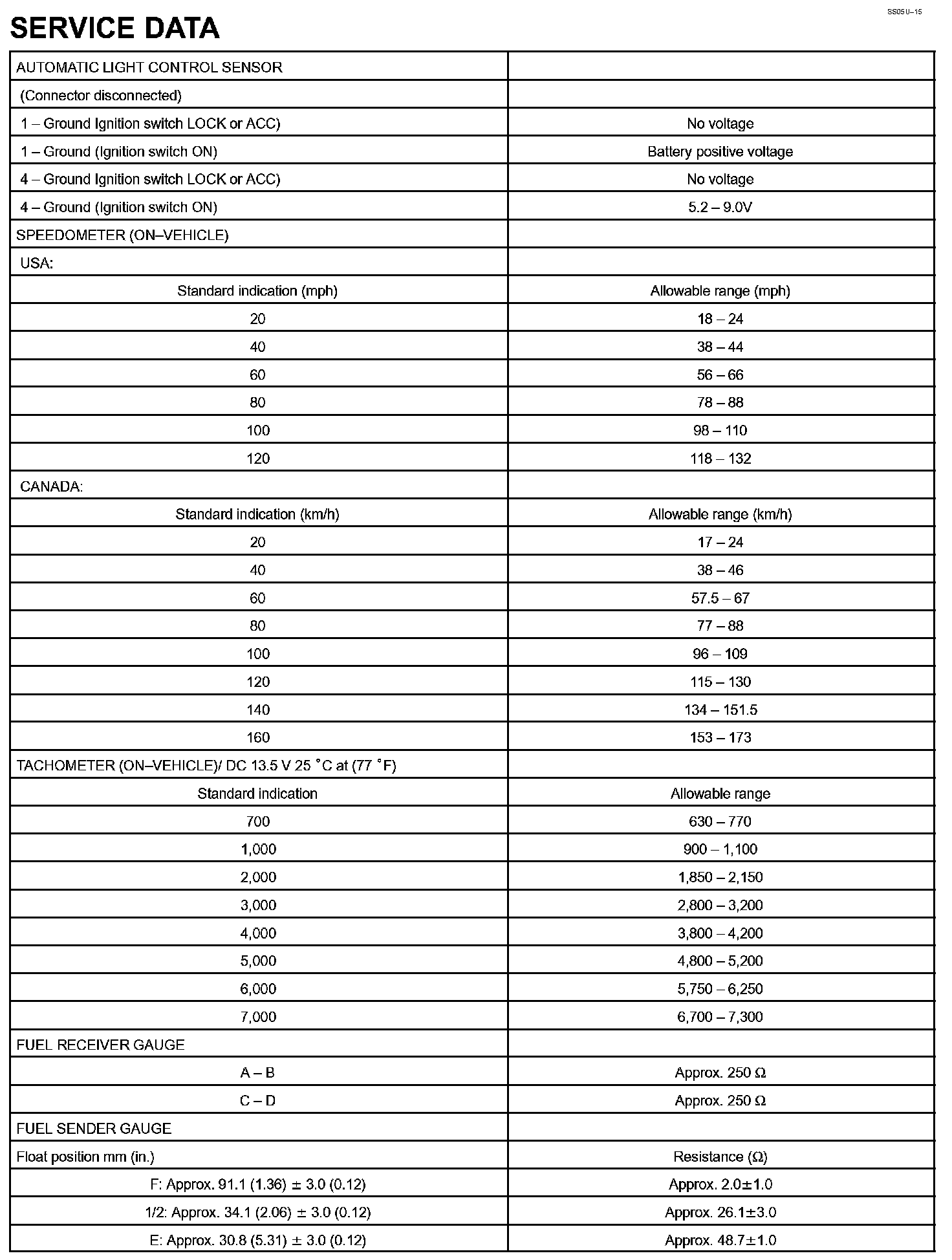

Body Electrical - Service Data Part 1:

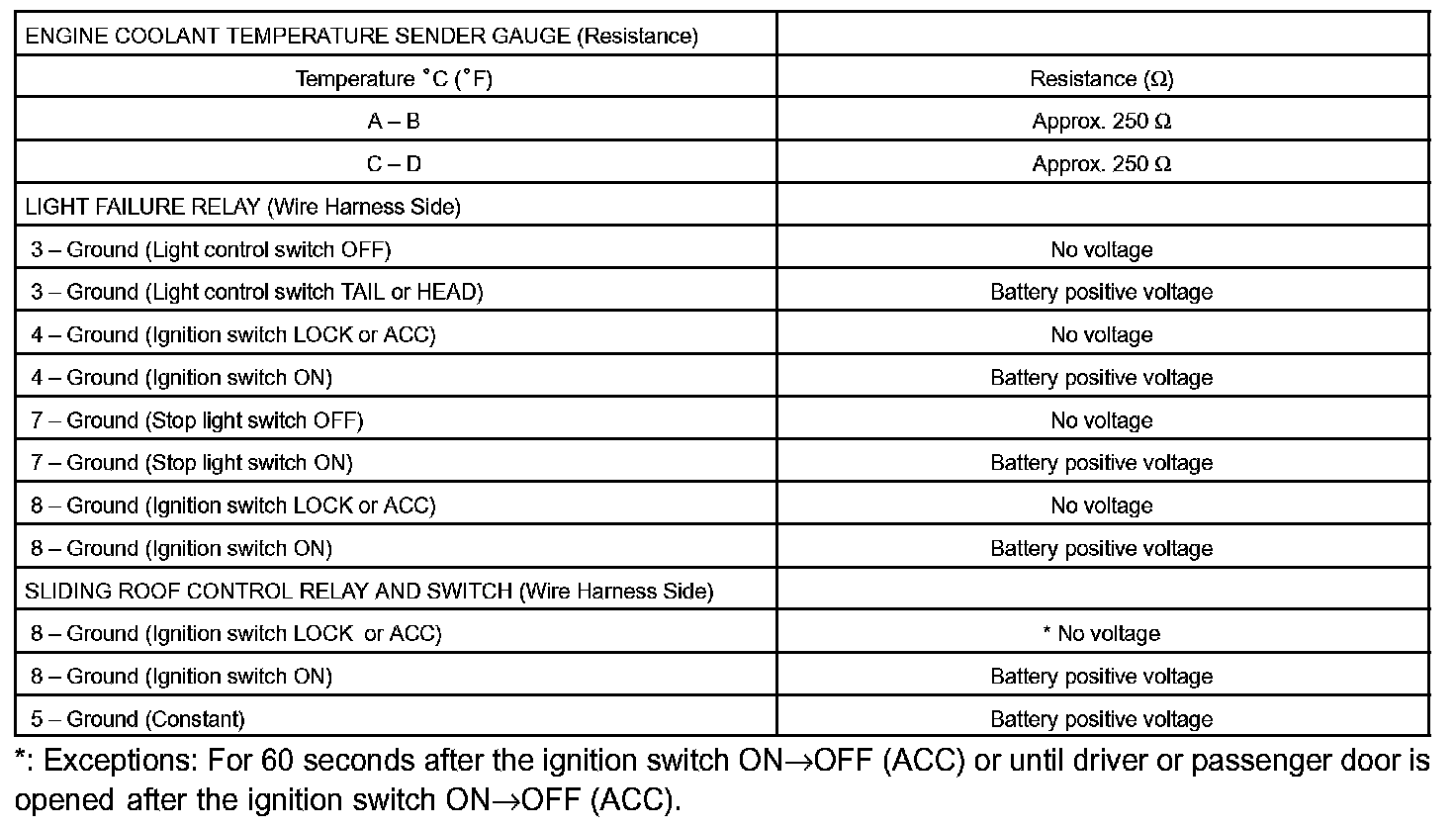

Body Electrical - Service Data Part 2:
