Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Avalon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Starting and Charging
>>
Charging System
>>
Alternator
Alternator

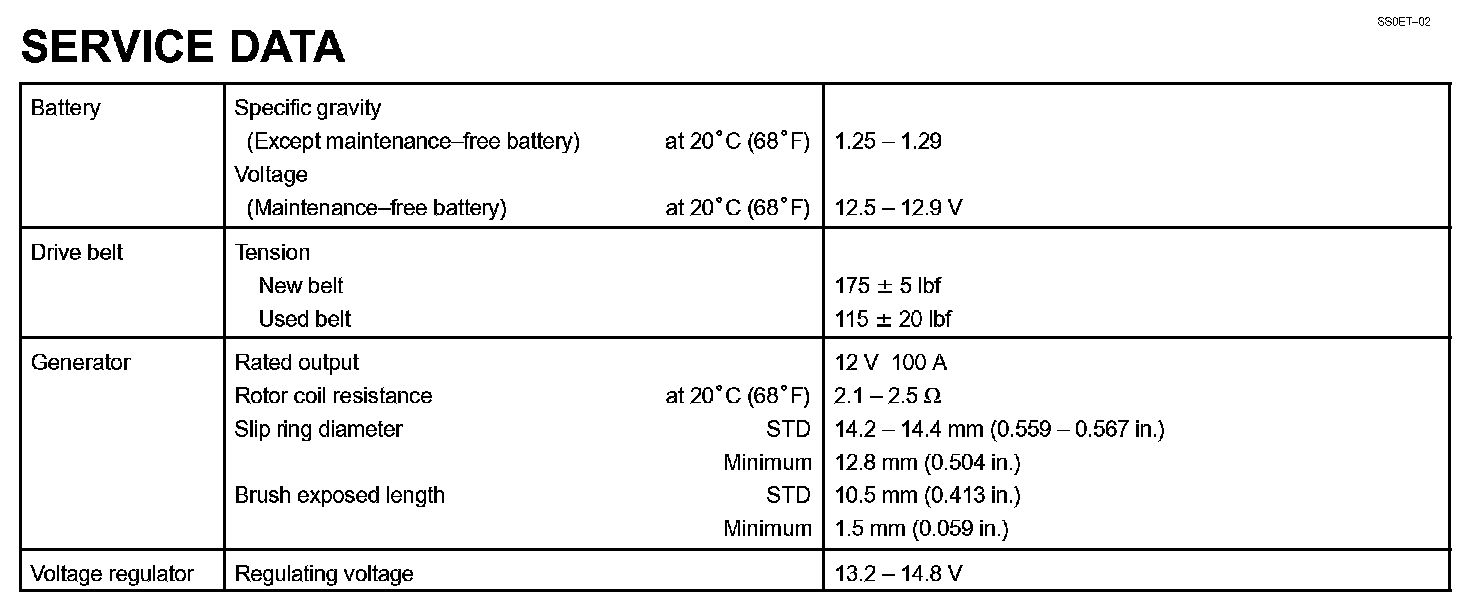

Charging - Service Data:

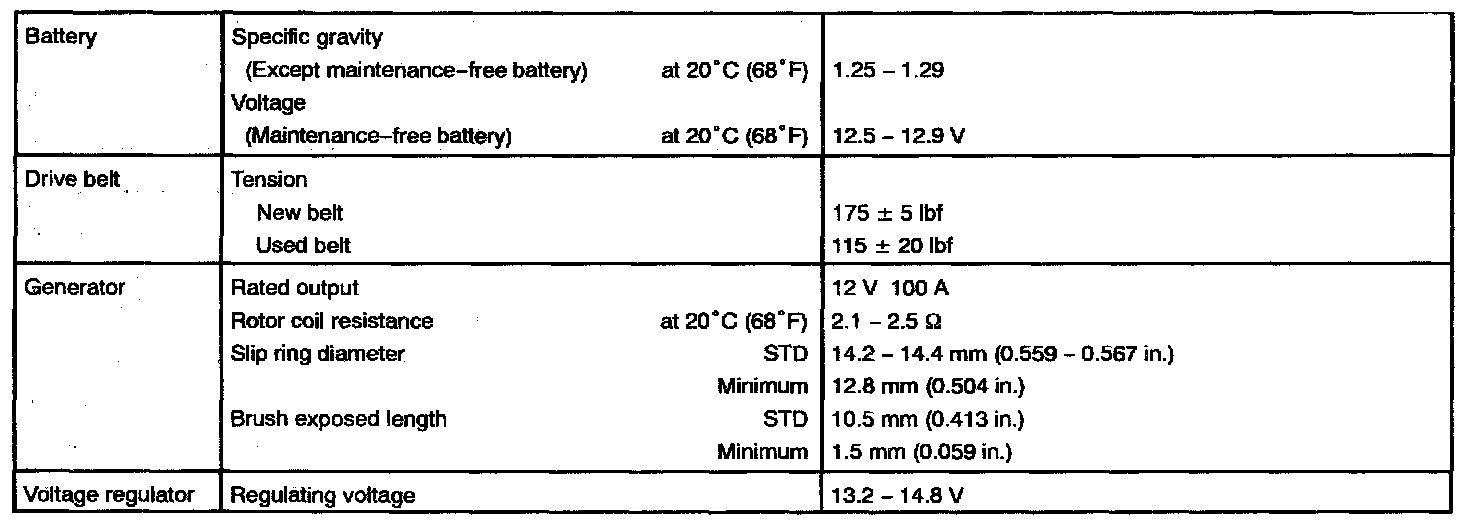

Charging - Service Data:
