INSPECTION

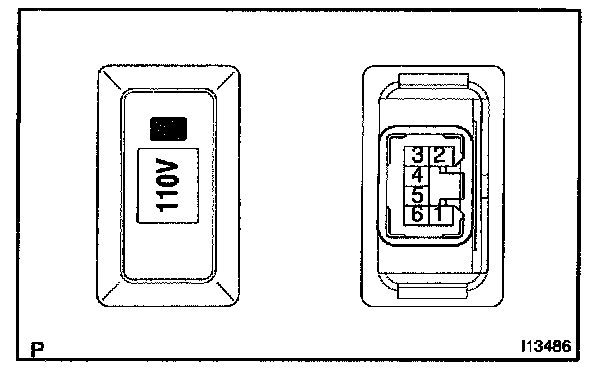

INSPECT POWER OUTLET MAIN SWITCH CONTINUITY

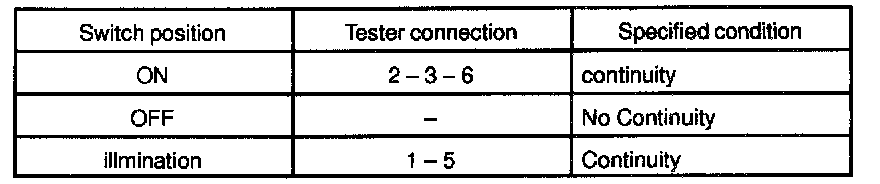

If continuity is not as specified, replace the switch.
