Front

WHEEL HUB BOLT
REPLACEMENT
1. REMOVE FRONT WHEEL
2. REMOVE BRAKE CALIPER AND DISC
a. Remove the 2 bolts, brake caliper and disc.
b. Support the brake caliper securely.





3. REMOVE HUB BOLT

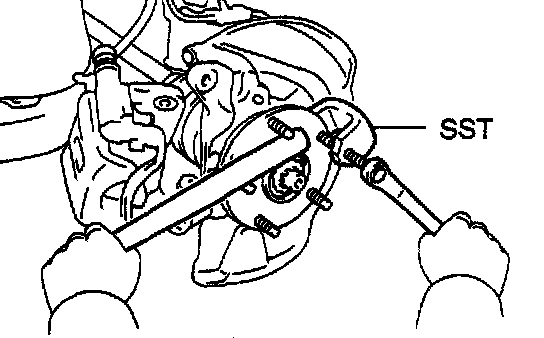

Using SST and a hammer handle or an equivalent, remove the hub bolt.
SST 09628-10011





4. INSTALL HUB BOLT

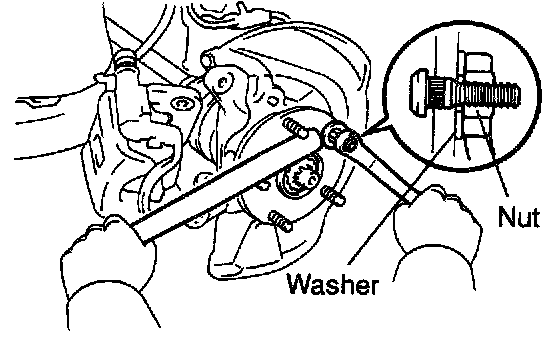

a. Install a washer and nut to a new hub bolt, as shown in the illustration.
b. Using a hammer handle or an equivalent to hold, install the hub bolt by torquing the nut.
5. INSTALL DISC AND BRAKE CALIPER
Install the disc and brake caliper with the 2 bolts.
Torque: 107 Nm (1,090 kgf-cm, 79 ft. lbs.)
6. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
